Procedures

Splash Shield Replacement

NOTE: Take care not to scratch the body.

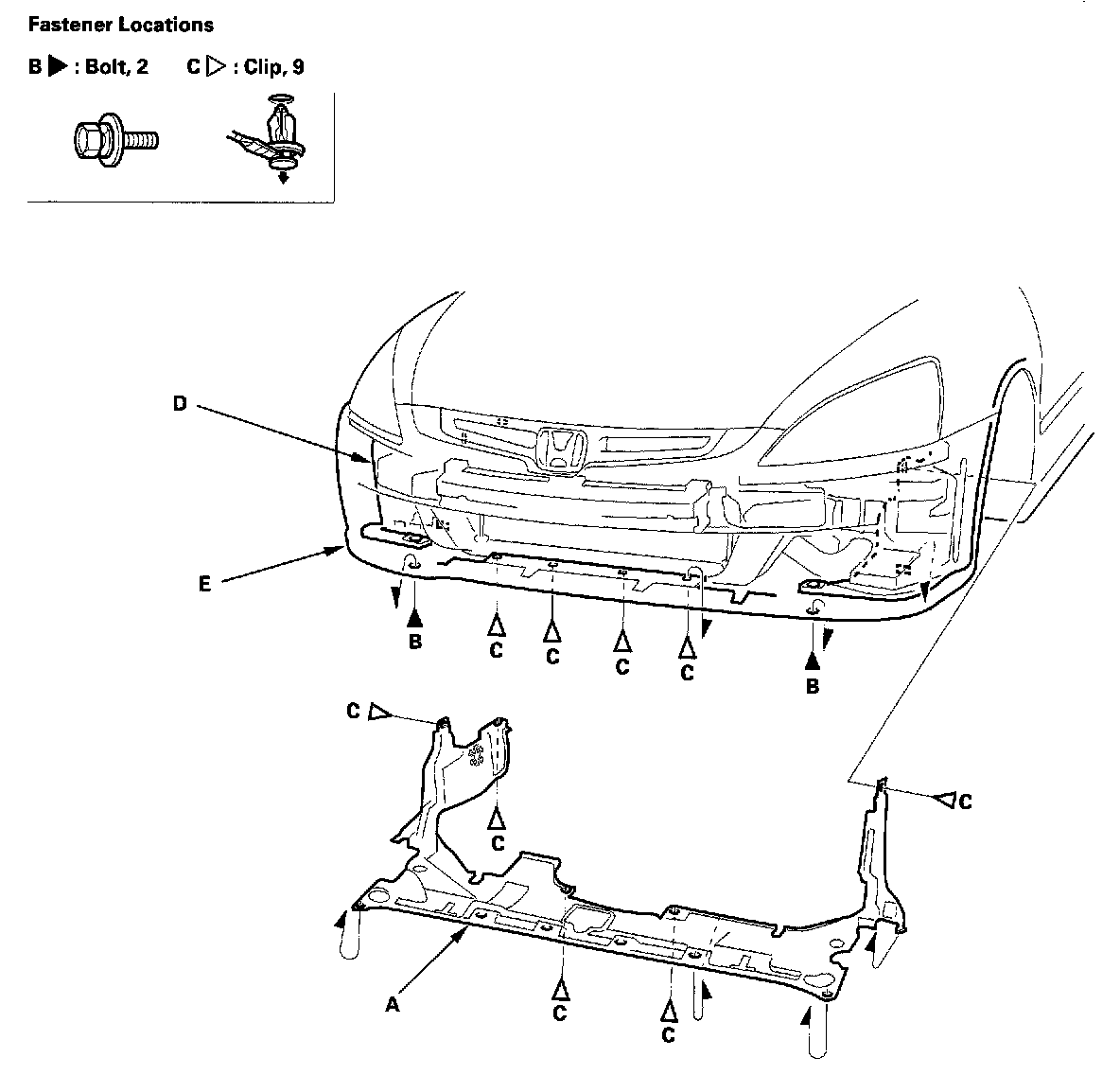

1. Remove the splash shield (A).
-1 From both wheel arch, remove the bolts (B) and clips (C) securing the front inner fender (D) and splash shield (on the body).
-2 From under the front bumper (E), remove the clips (C).
-3 Pull the splash shield out.

2. Install the splash shield in the reverse order of removal, and replace any damaged clip.
