Under-Dash Fuse/Relay Box

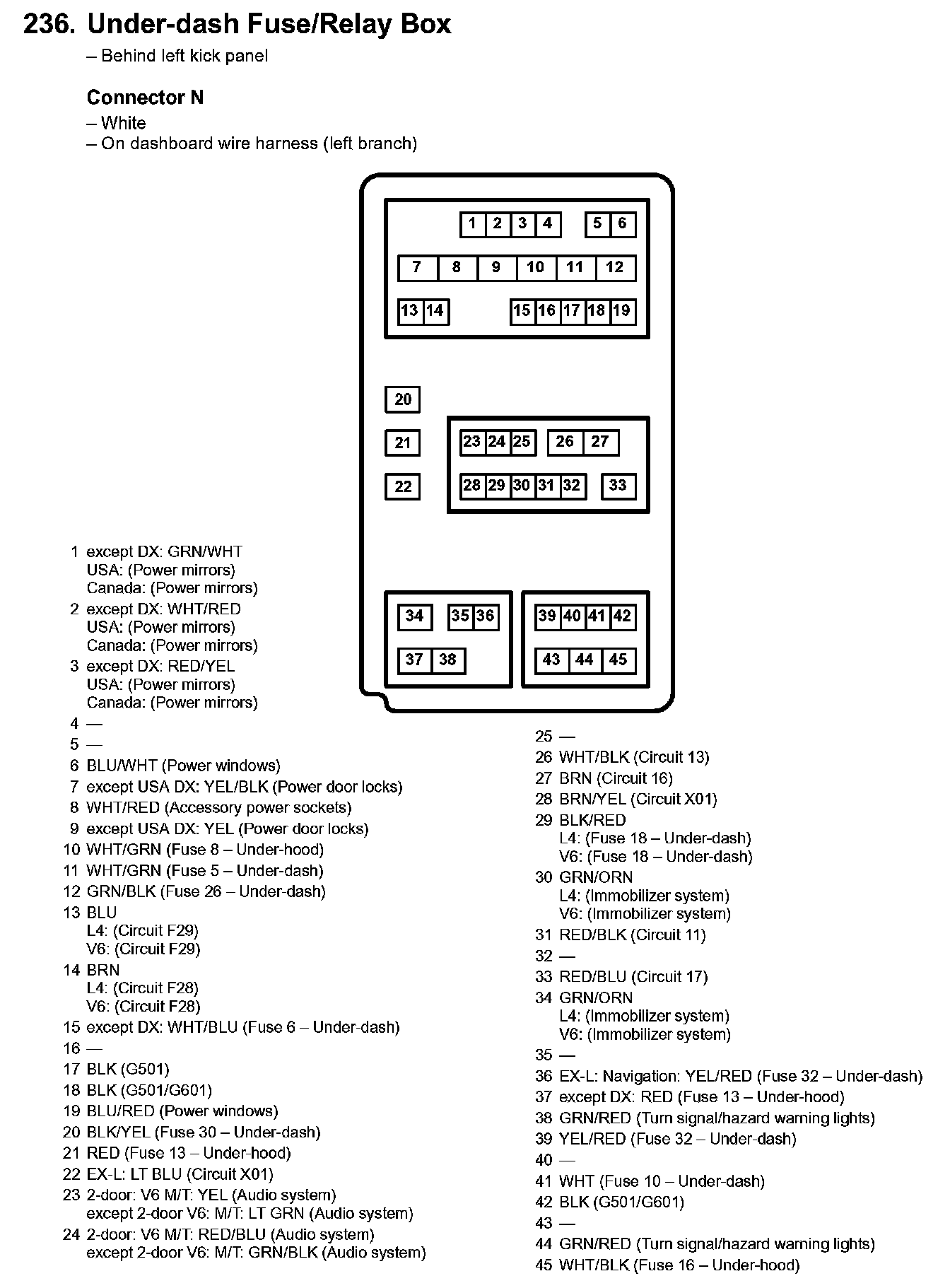

236. Under-dash Fuse/Relay Box Part 1:

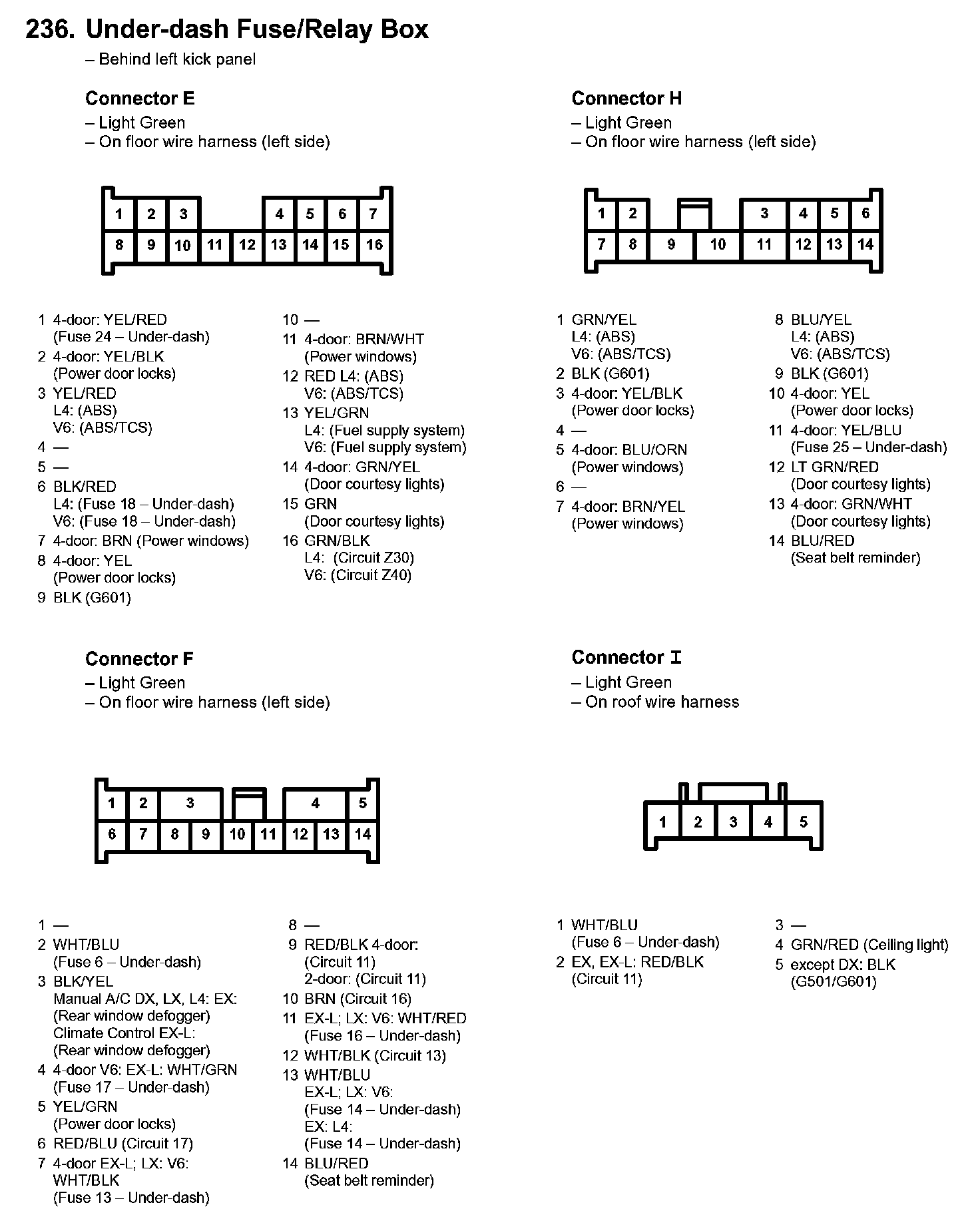

236. Under-dash Fuse/Relay Box Part 2:

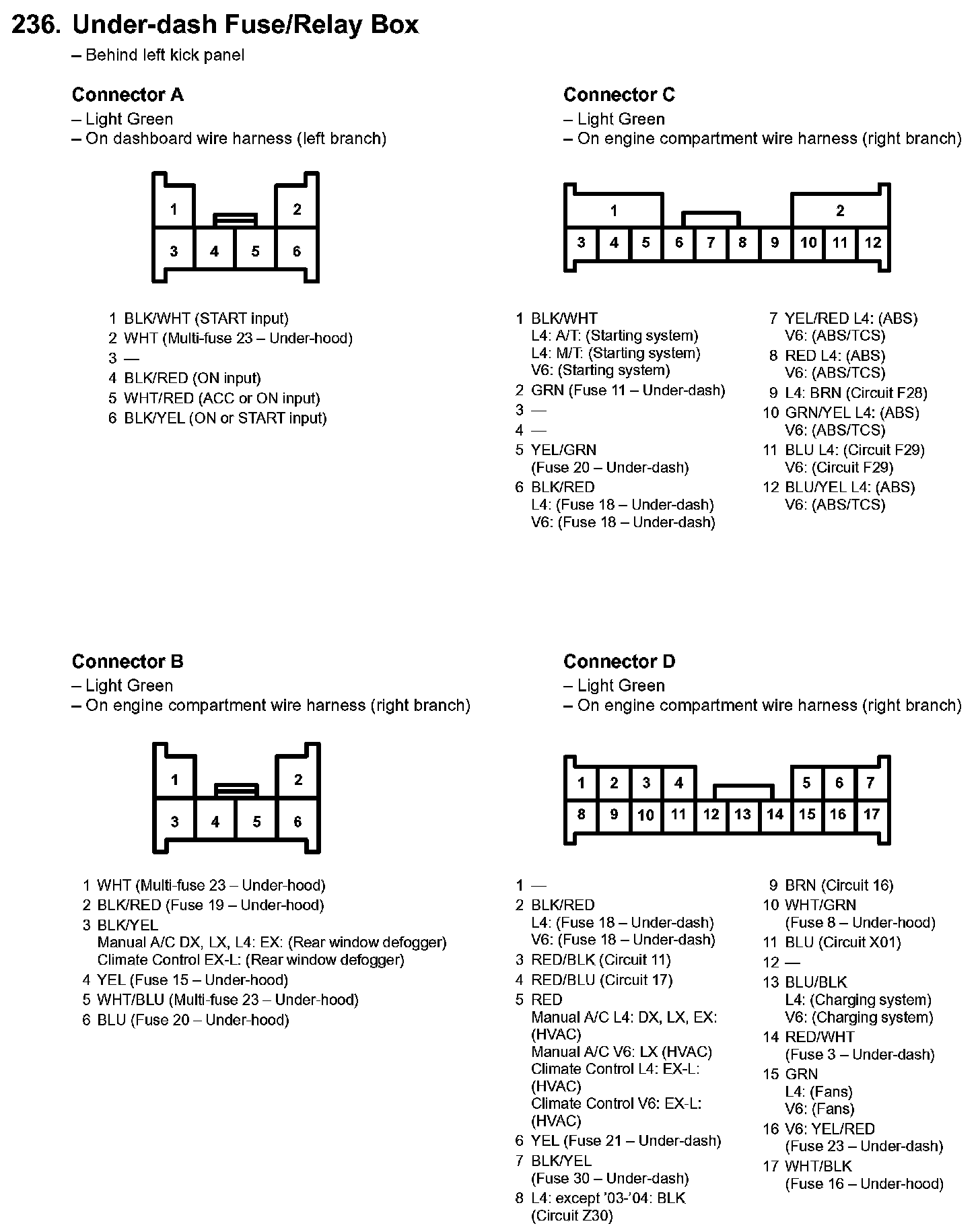

236. Under-dash Fuse/Relay Box Part 3:

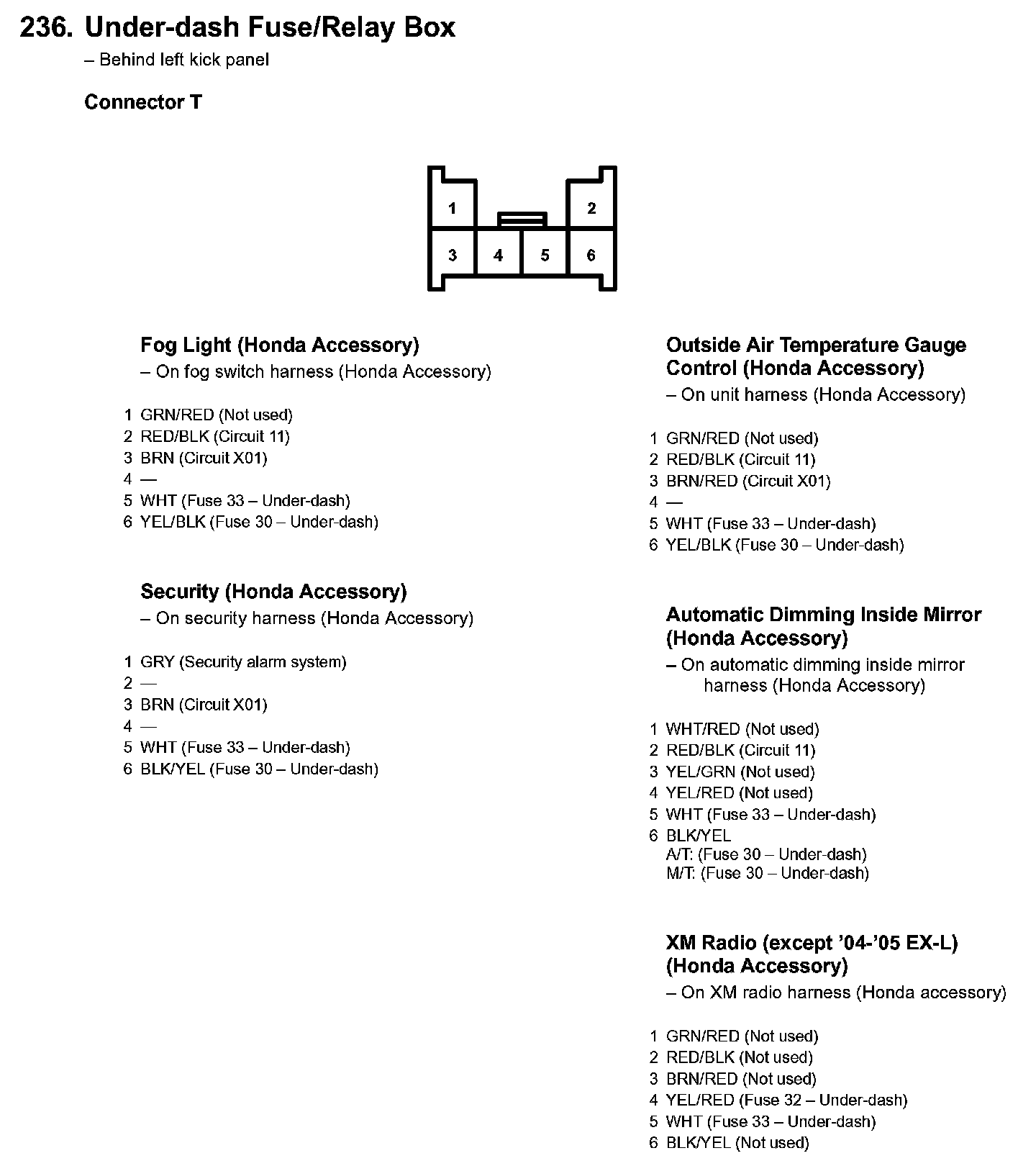

236. Under-dash Fuse/Relay Box Part 4:

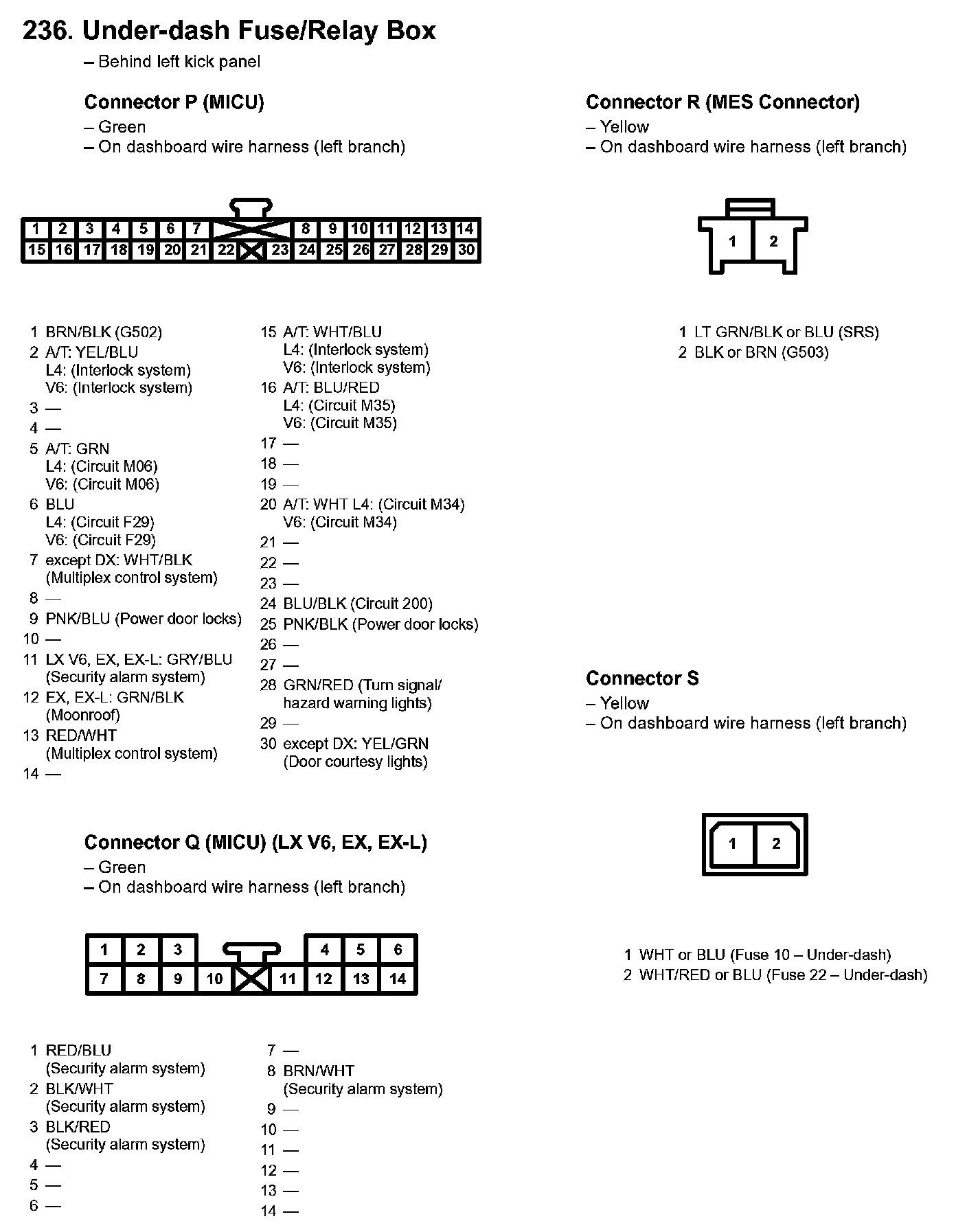

236. Under-dash Fuse/Relay Box Part 5:

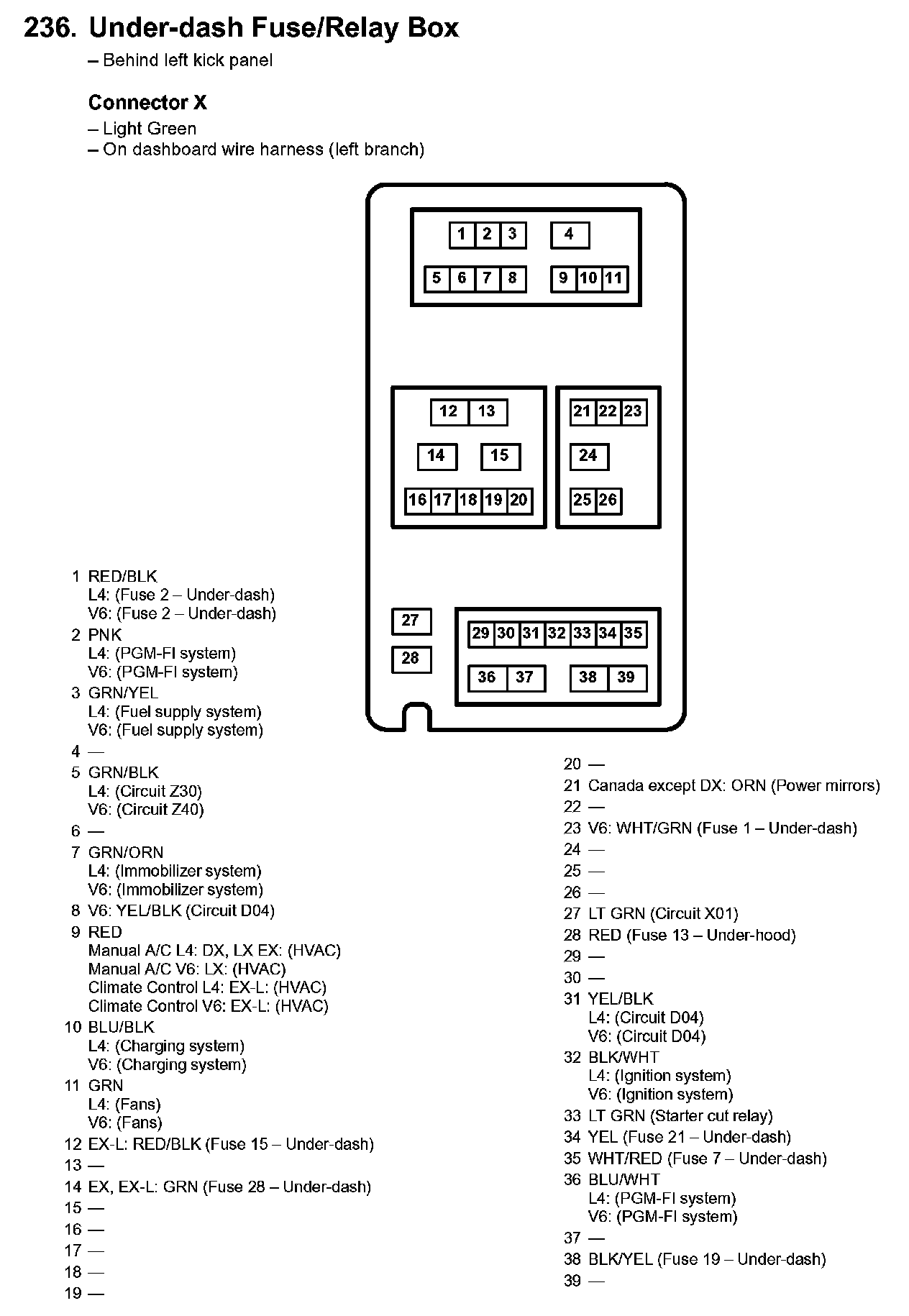

236. Under-dash Fuse/Relay Box Part 6:

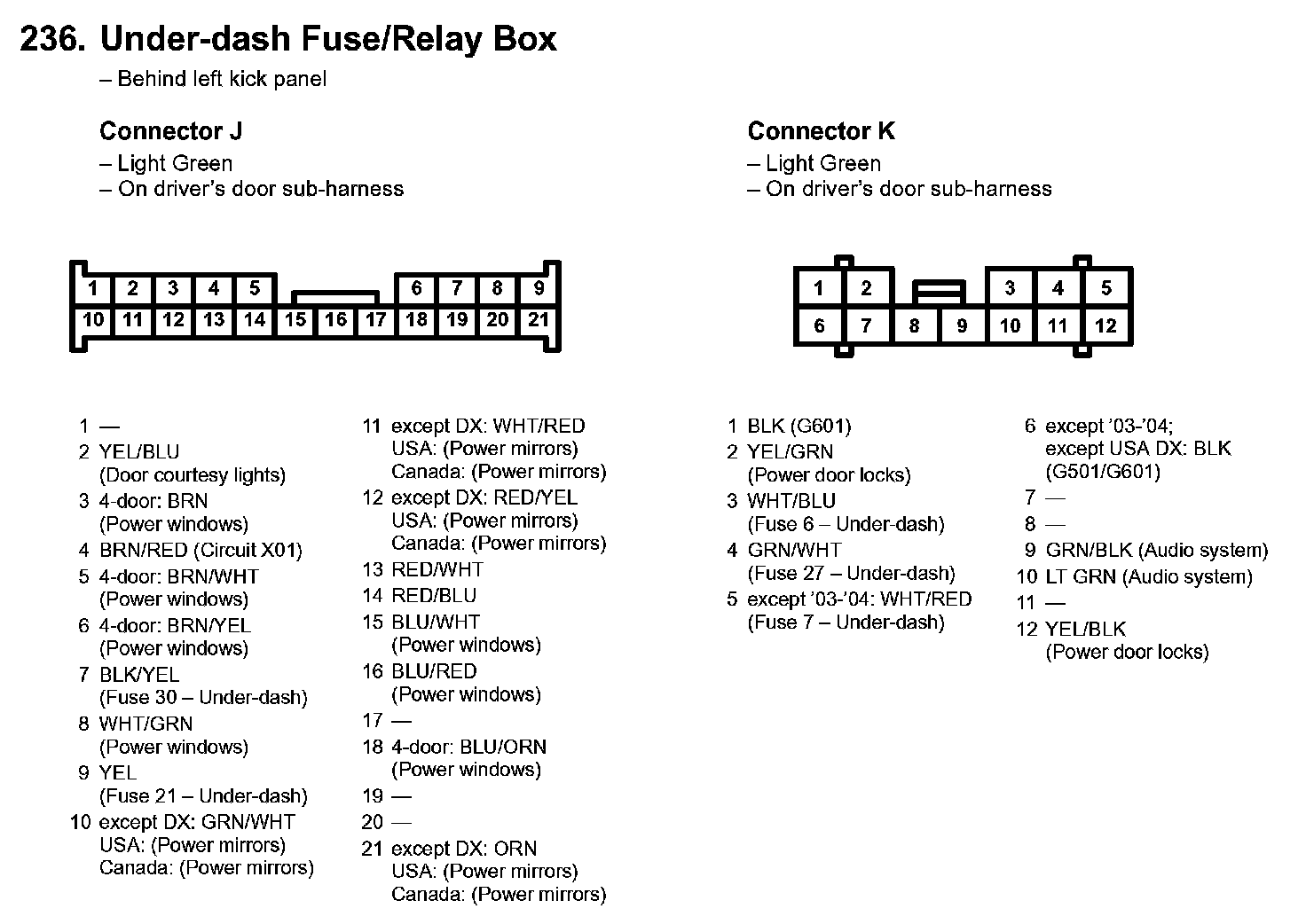

236. Under-dash Fuse/Relay Box Part 7:
