Rear Knuckle
Knuckle/Hub Replacement W/ Related Components

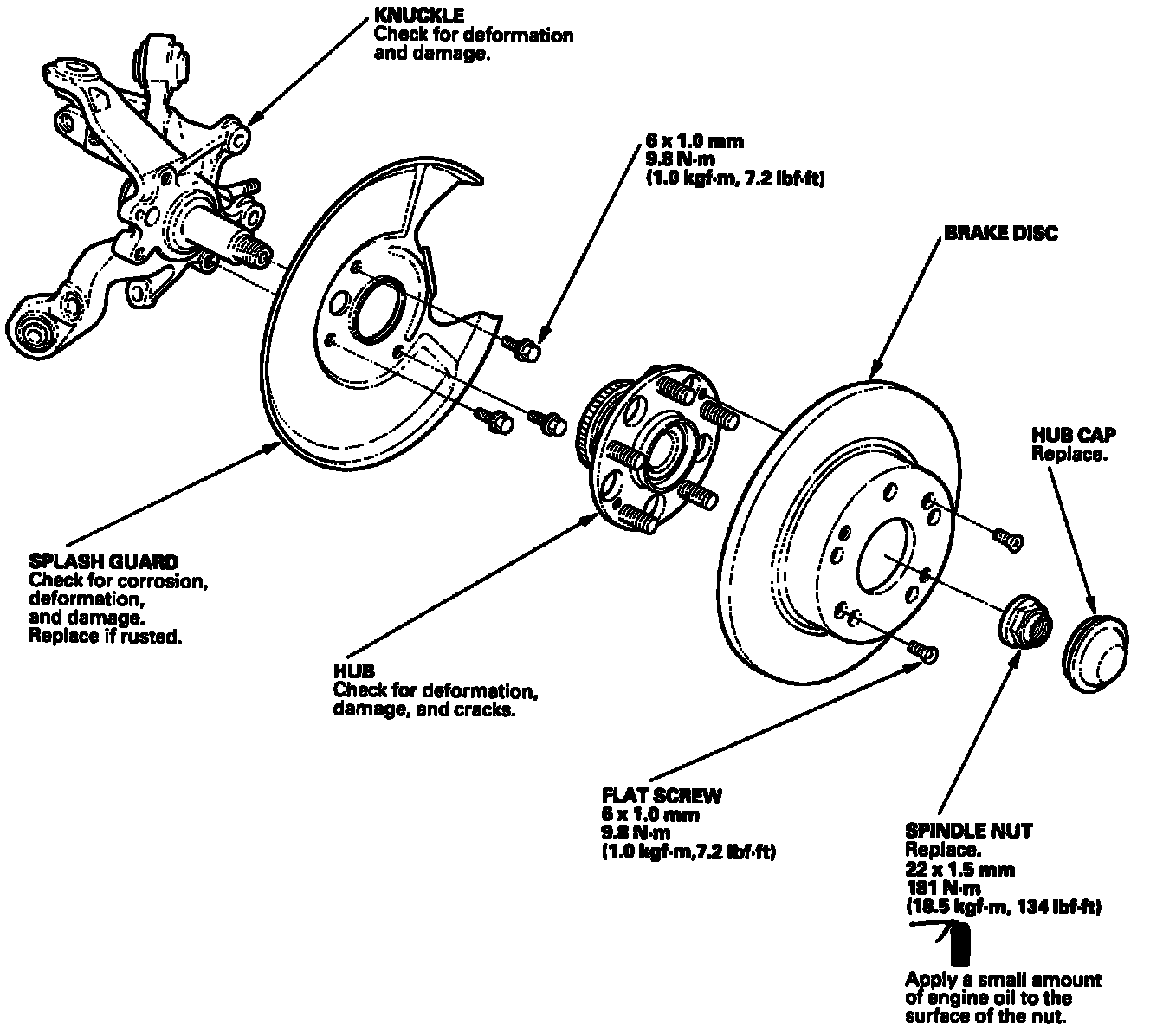

Exploded View-Disc Brake

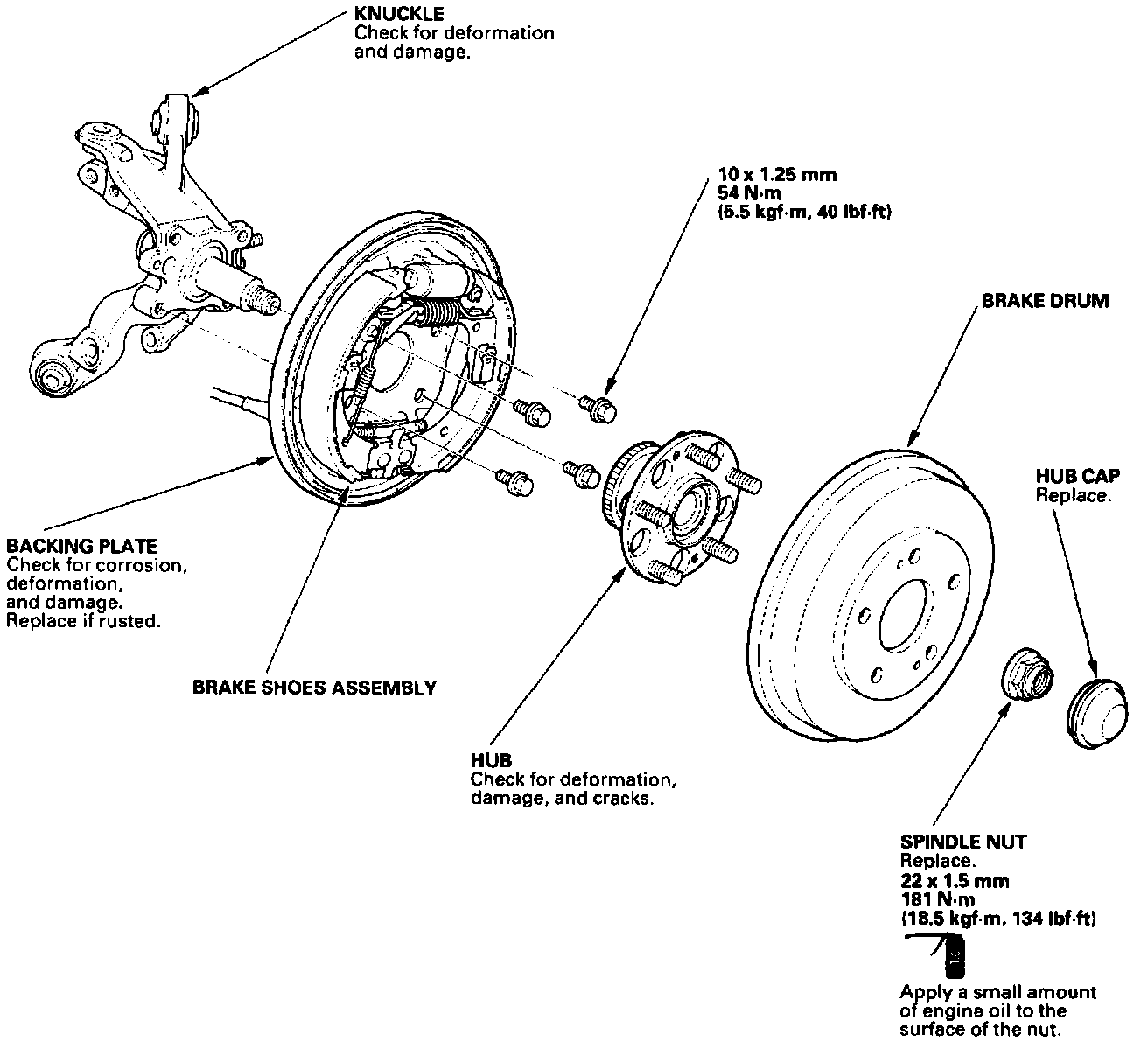

Exploded View-Drum Brake
