Heating and Air Conditioning: Locations

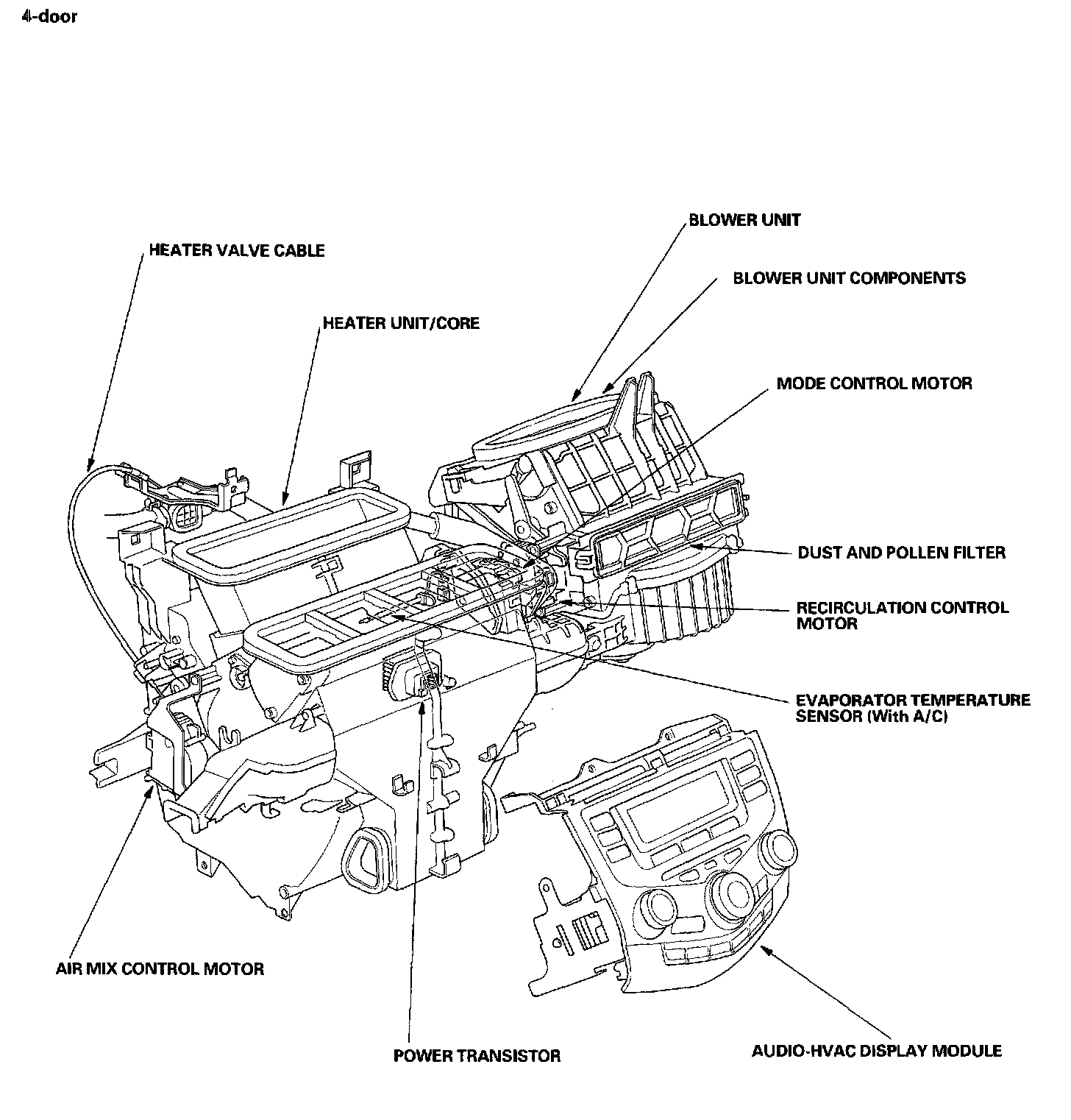

Heating/Air Conditioning Component Location Index (4-door):

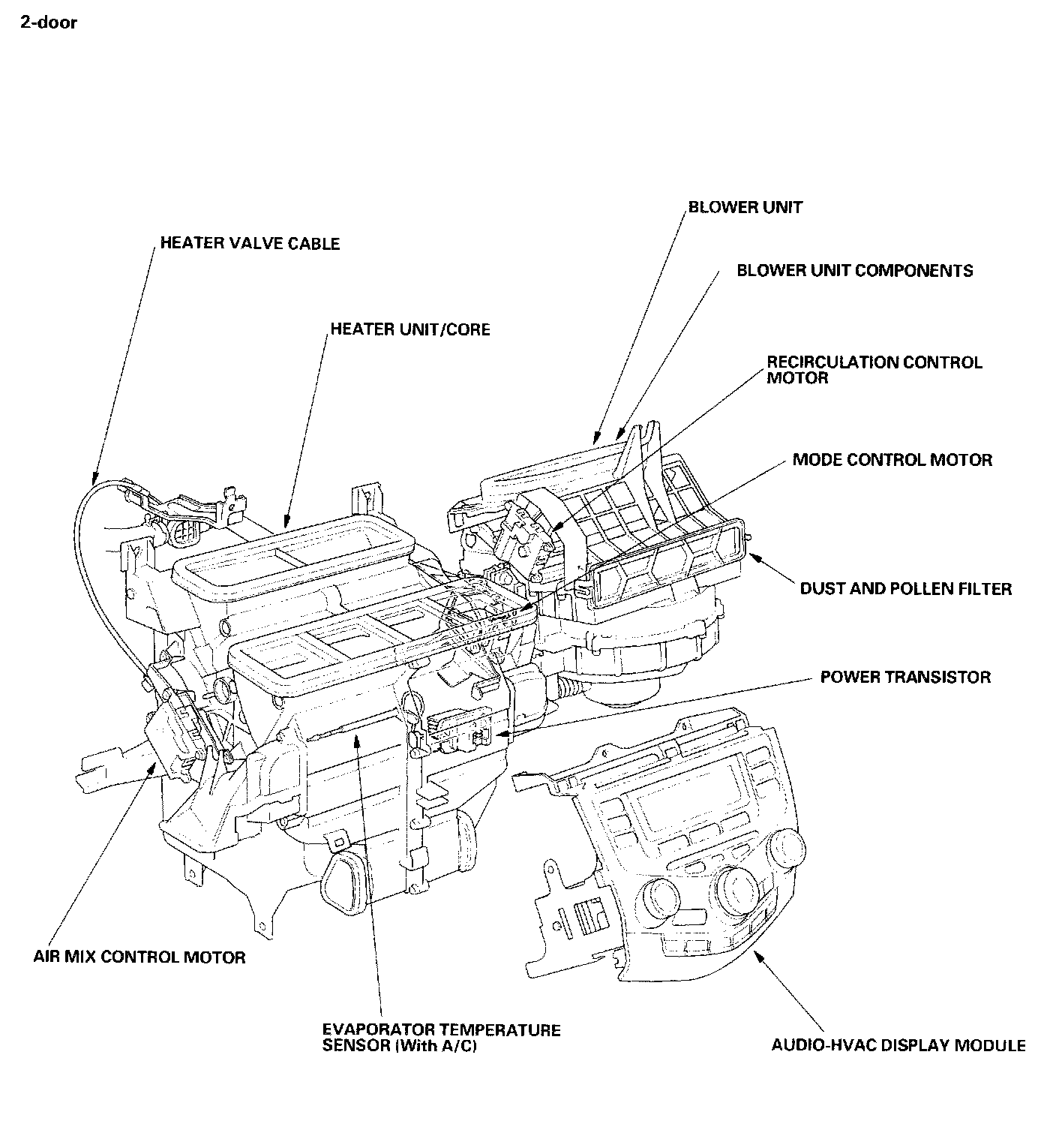

Heating/Air Conditioning Component Location Index (2-door):

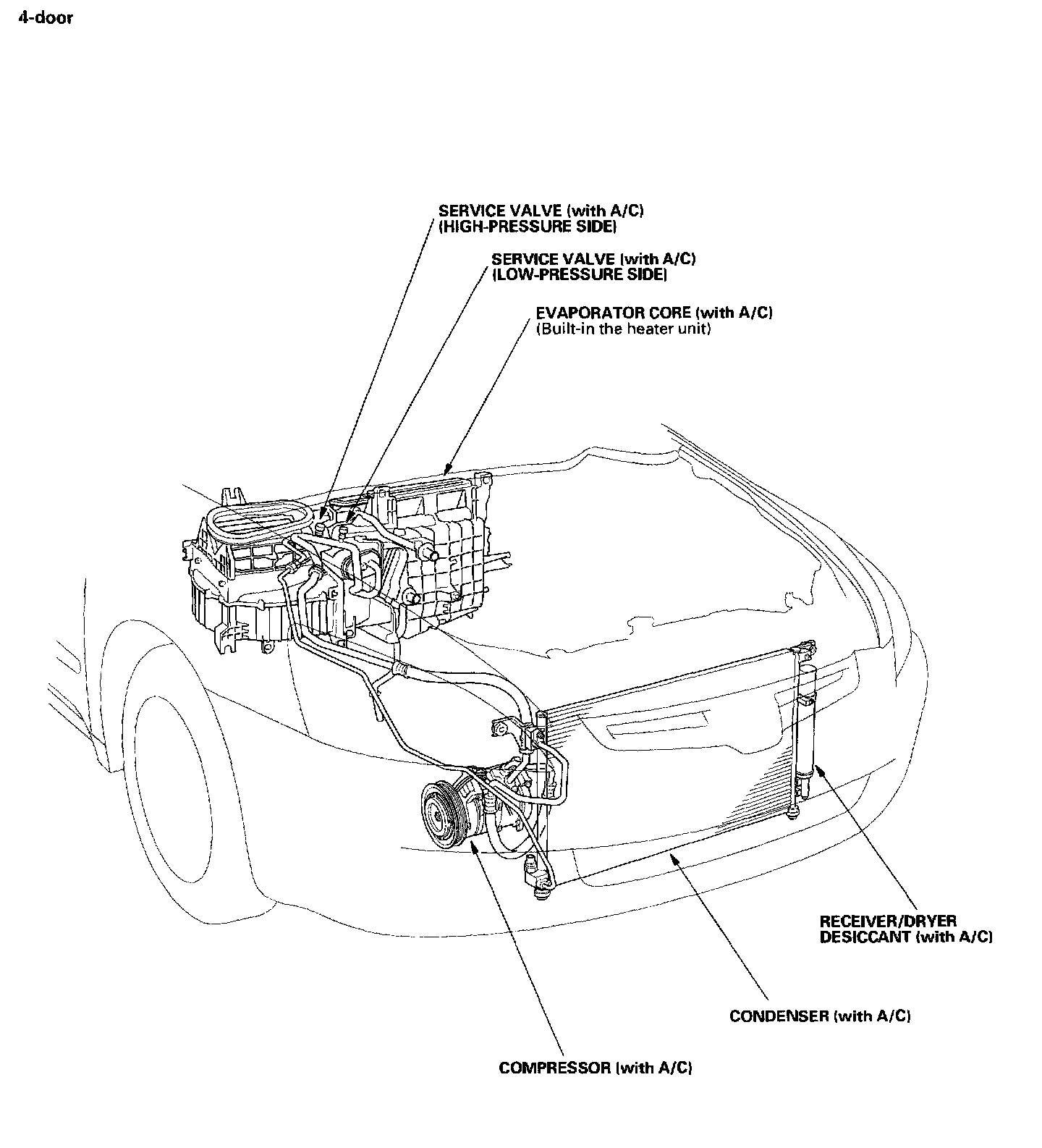

Heating/Air Conditioning Component Location Index (4-door):

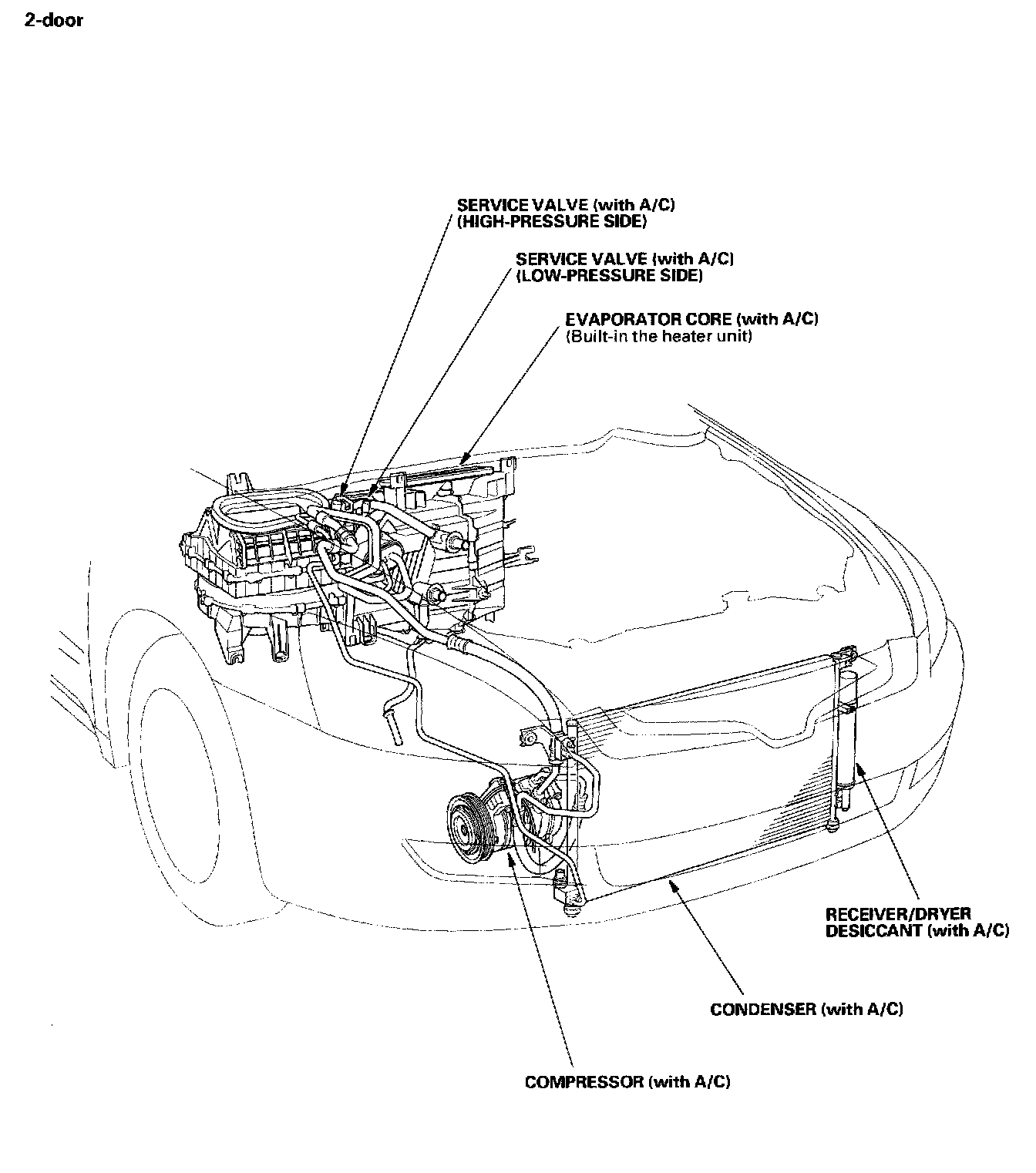

Heating/Air Conditioning Component Location Index (2-door):

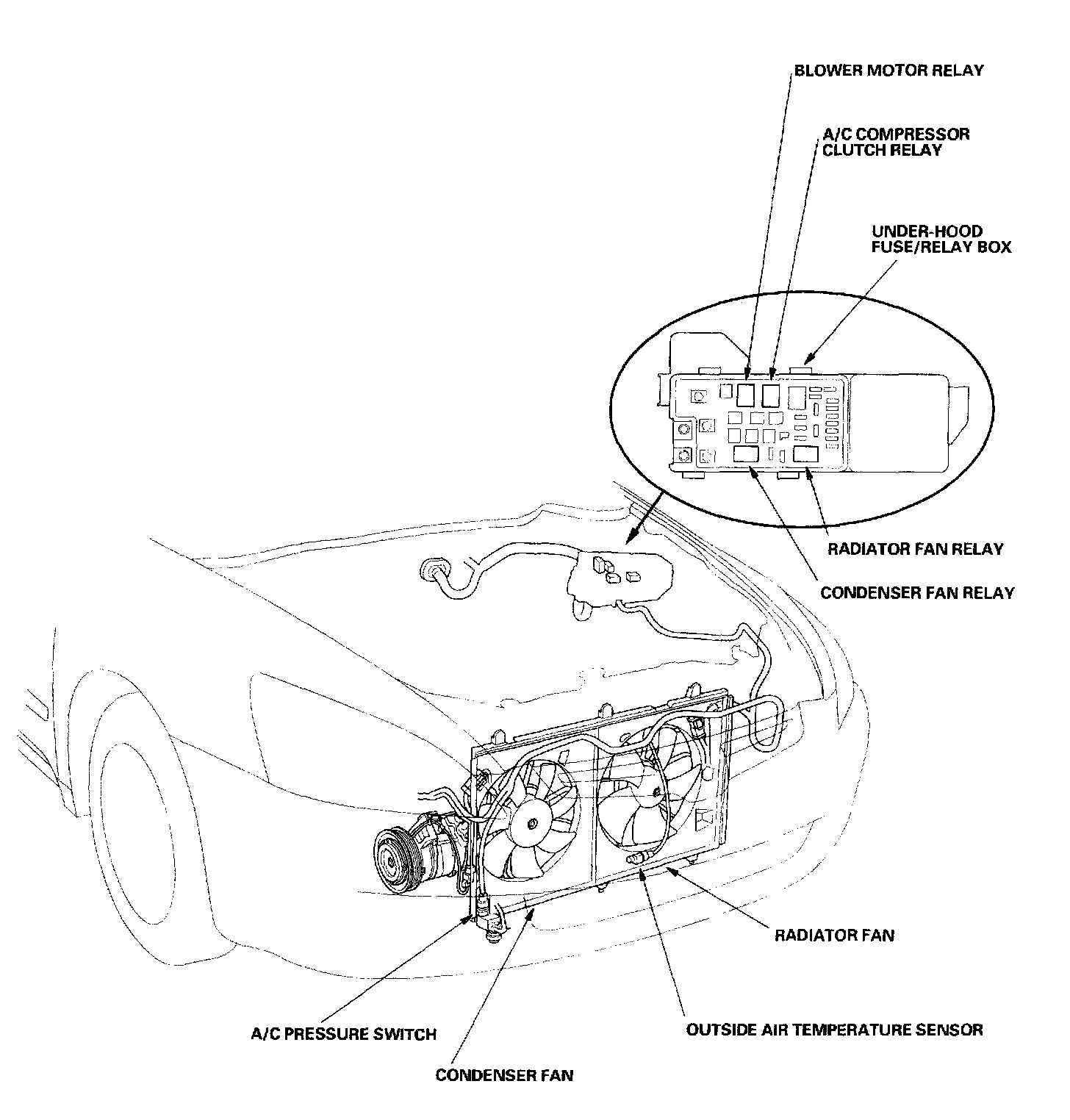

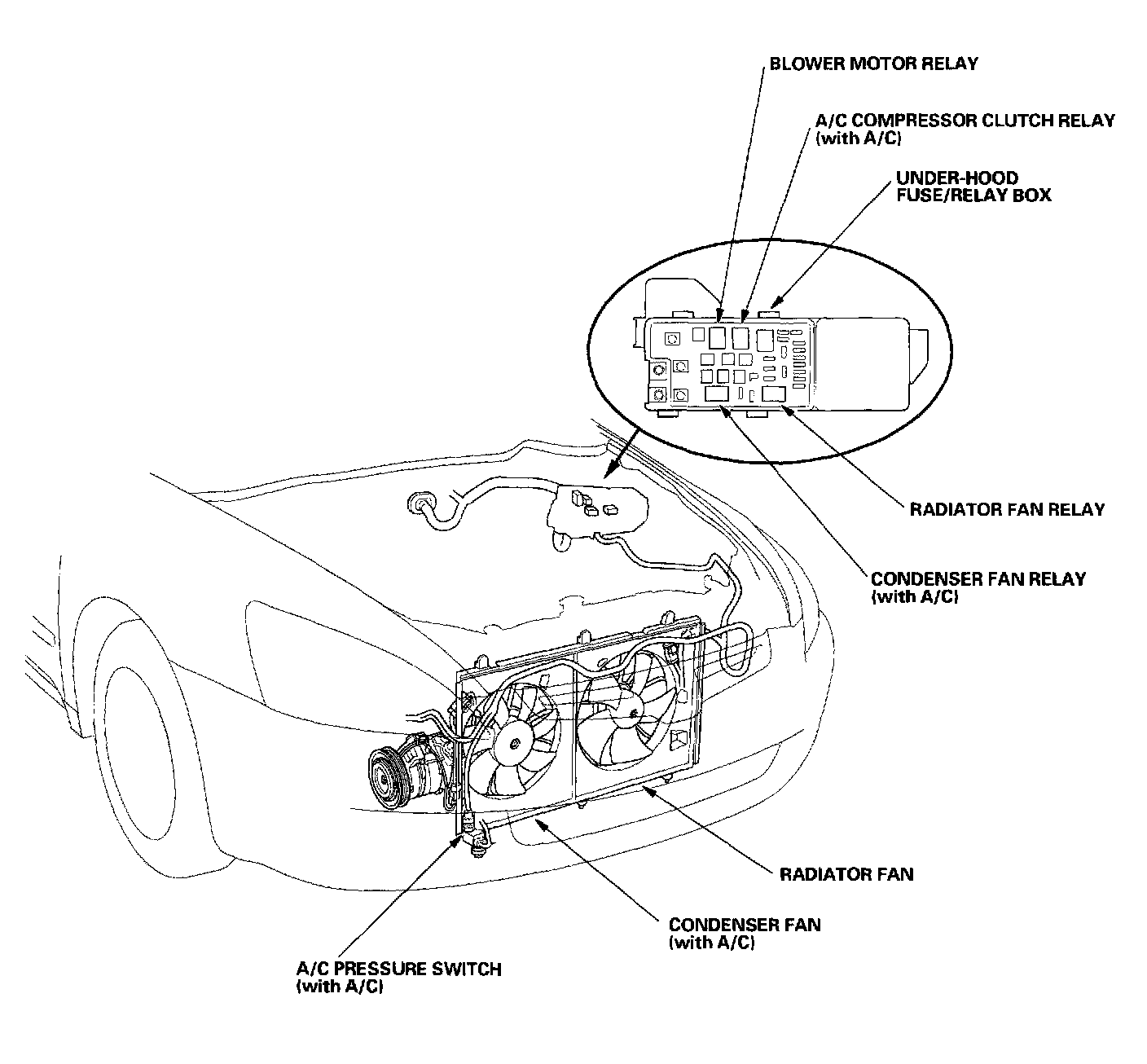

Heating/Air Conditioning Component Location Index:

Climate Control Component Location Index:

Climate Control Component Location Index (4-door):

Climate Control Component Location Index (2-door):

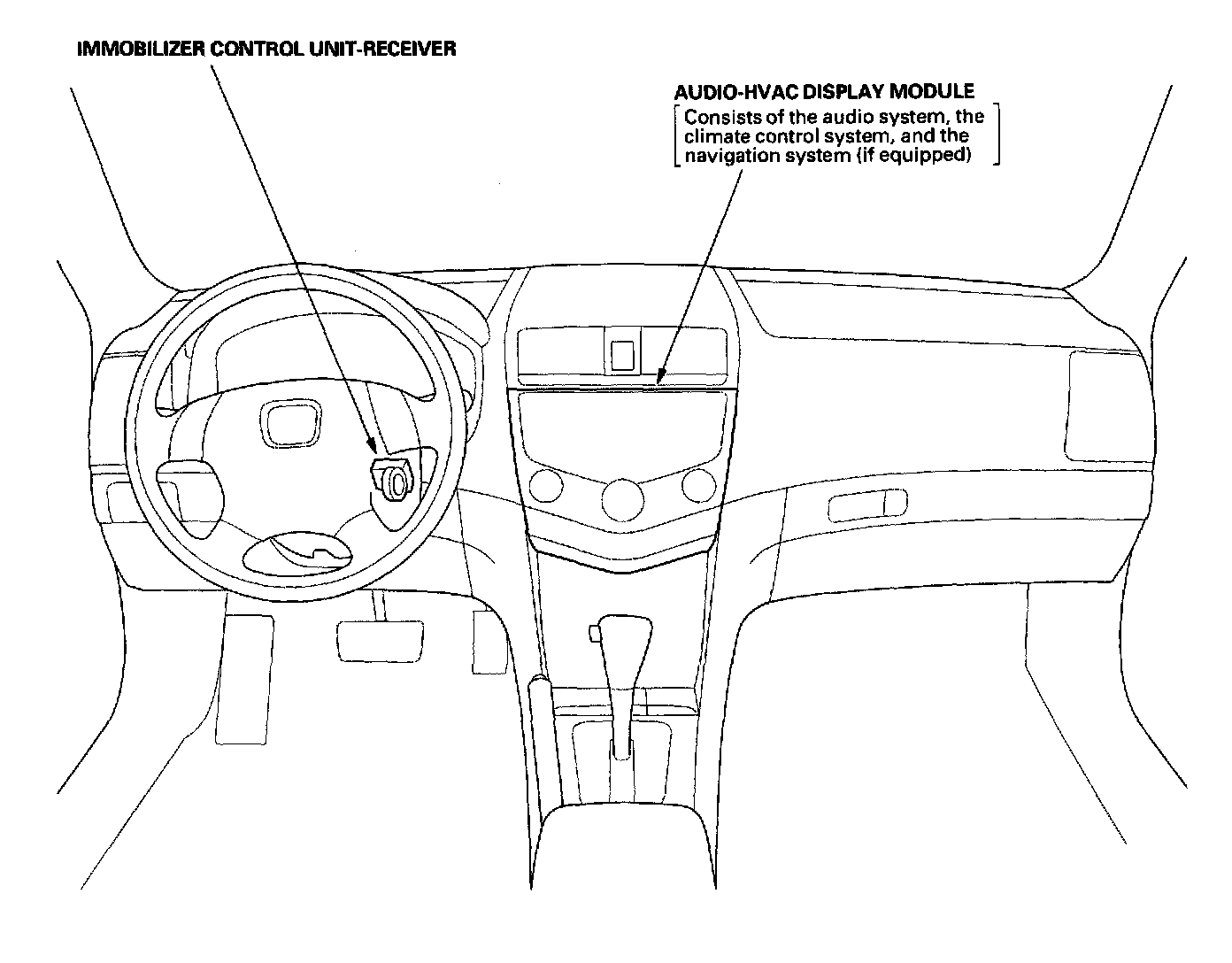

Relay And Control Unit Locations - Dashboard:

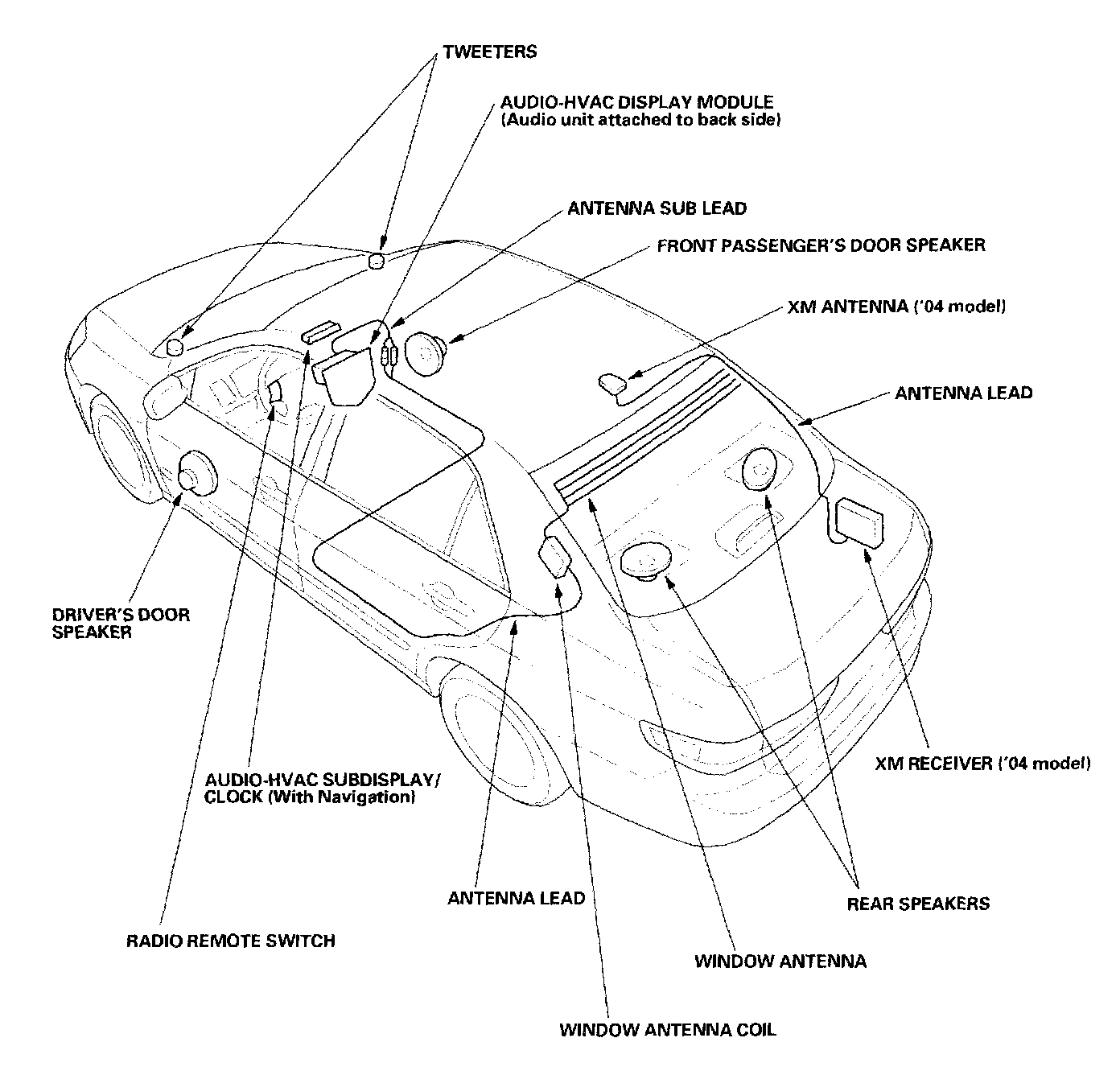

Audio System Component Location Index:

Navigation System Component Location Index:
