Component Locations

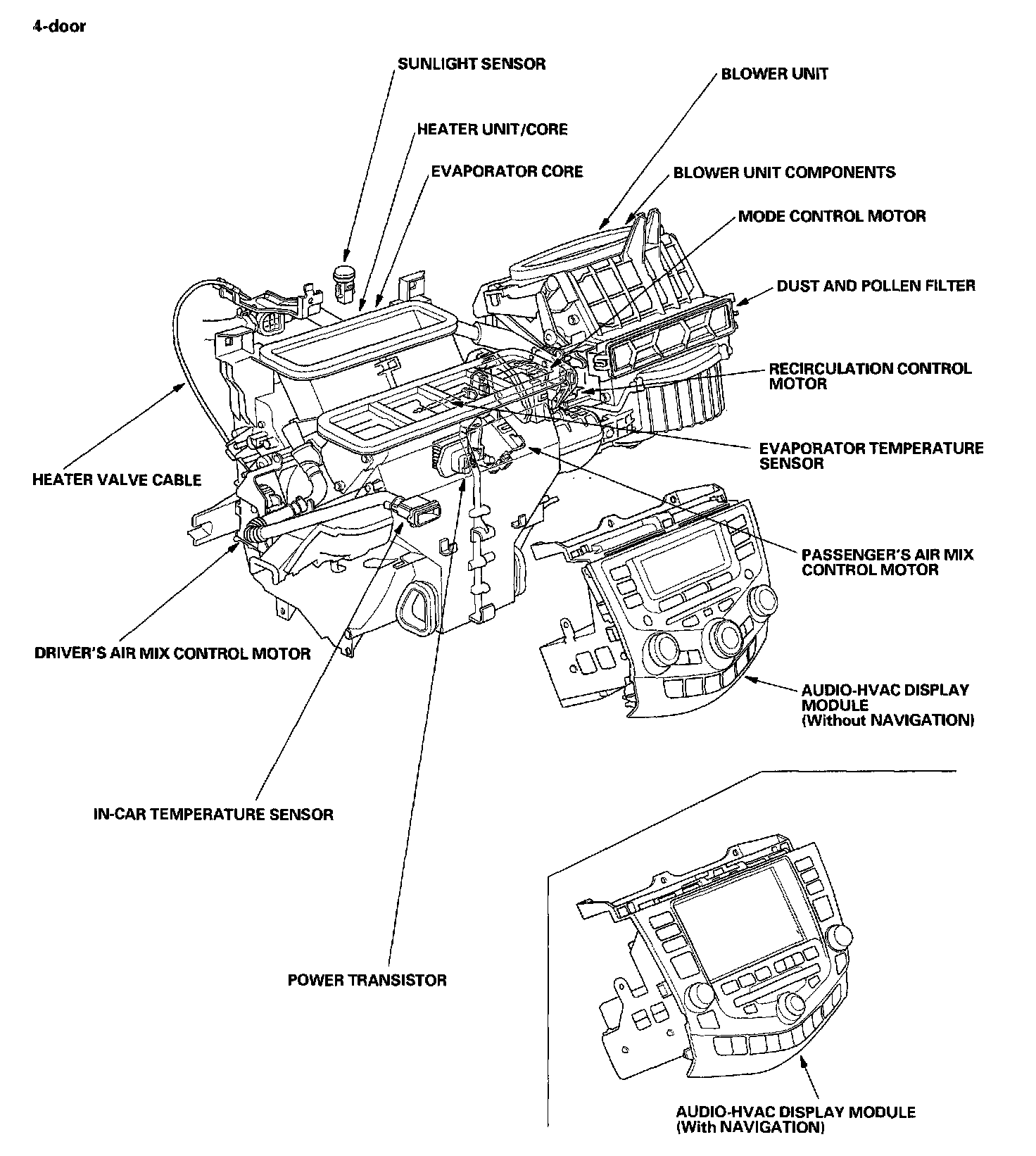

Climate Control Component Location Index (4-door):

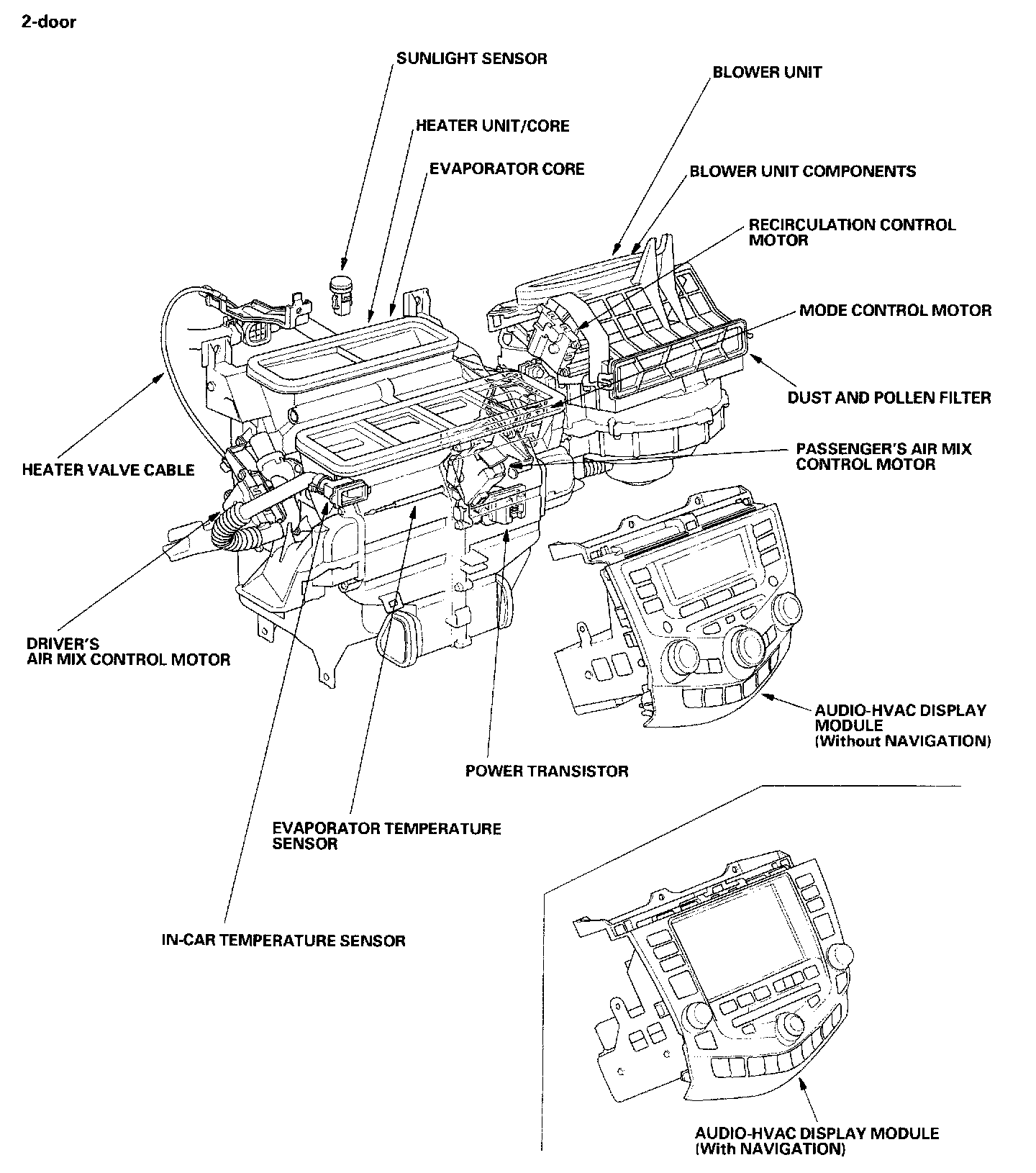

Climate Control Component Location Index (2-door):

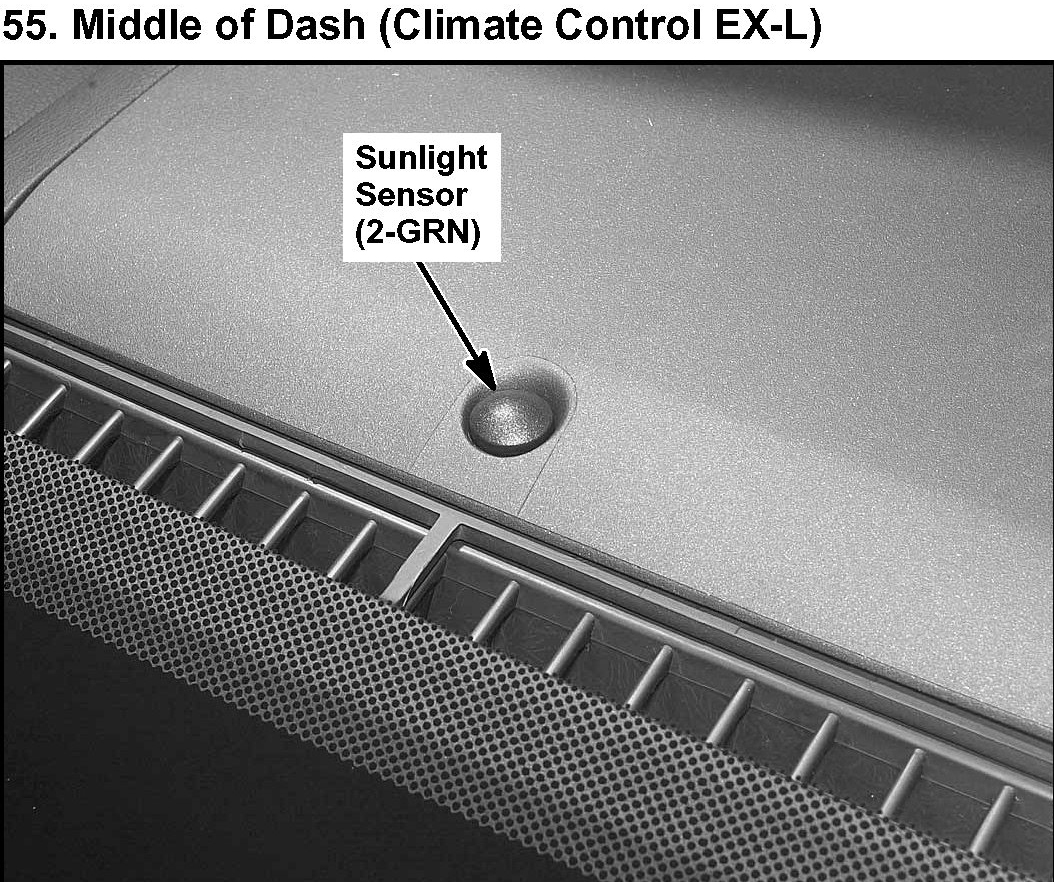

55. Middle of Dash (Climate Control EX-L):
