Connector Locations

Under-hood Multi-relay Box (Canada):

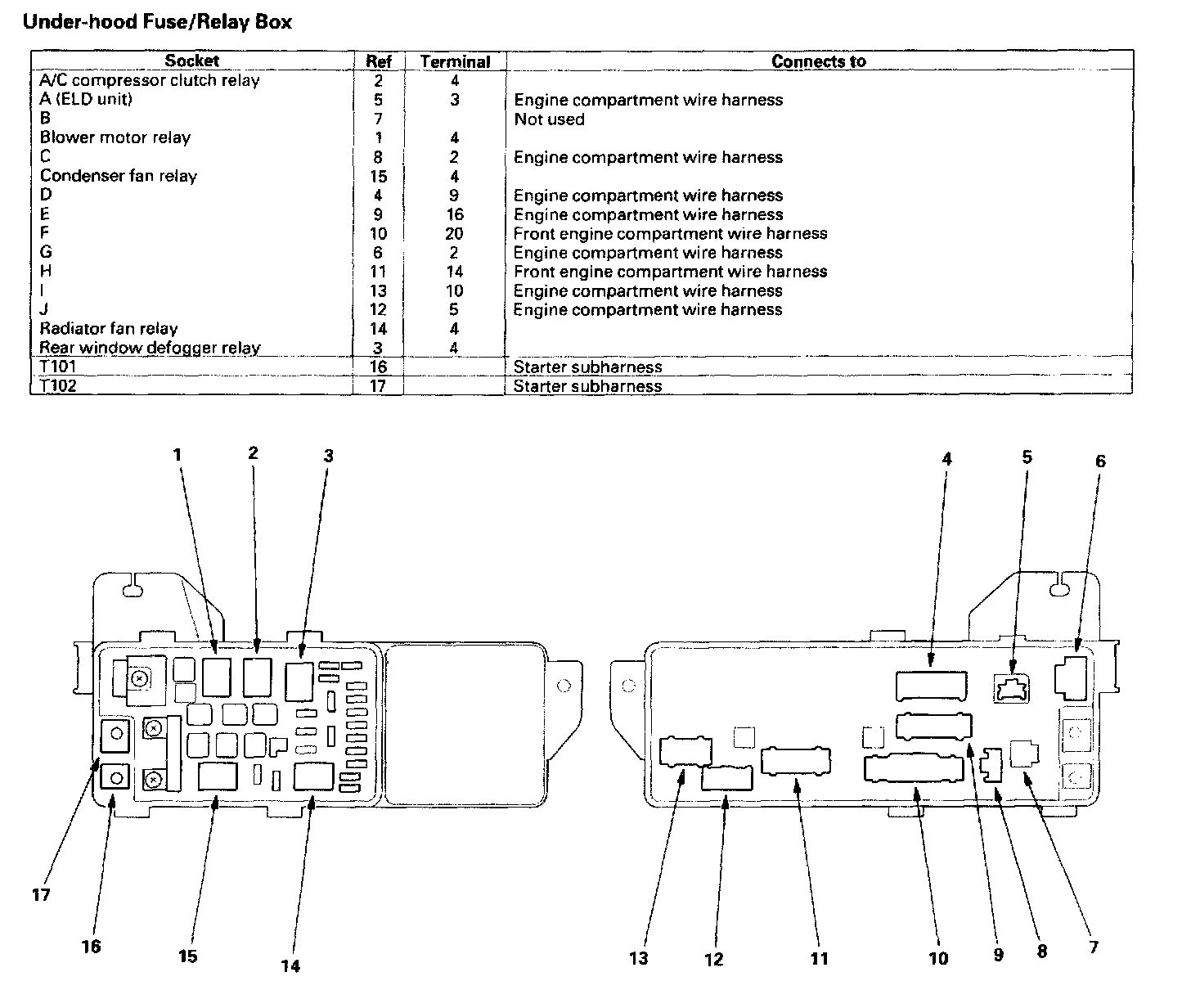

Under-hood Fuse/Relay Box:



Under-dash Fuse/Relay Box:



195. Behind Left Kick Panel (Honda Accessory):
