Electronic Throttle Control Module: Locations

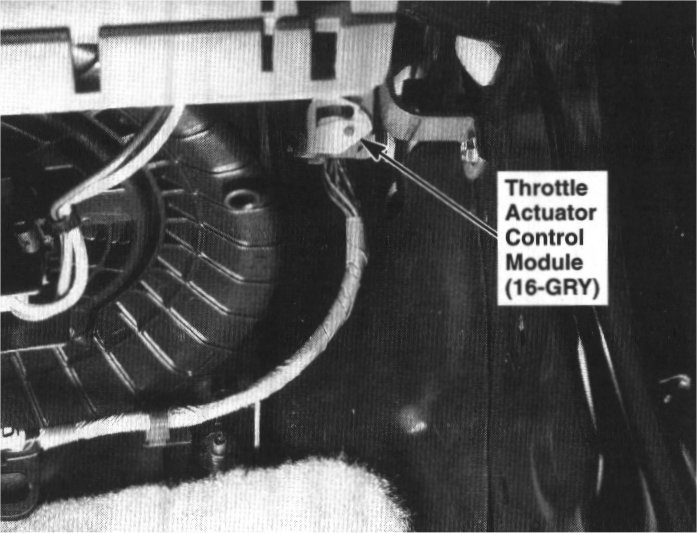

181. Under Right Side of Dash (V6):

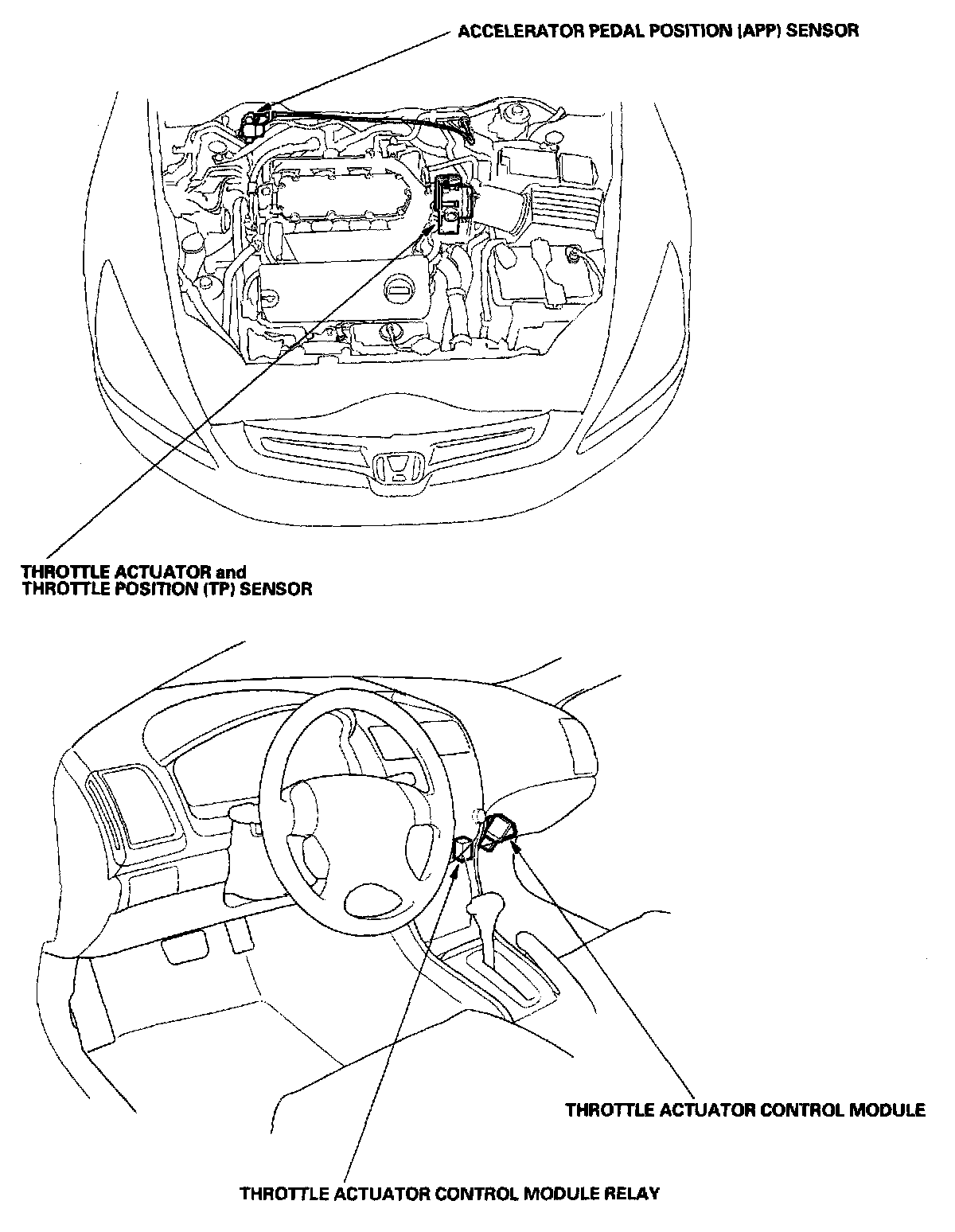

Electronic Throttle Control System - Component Location Index:

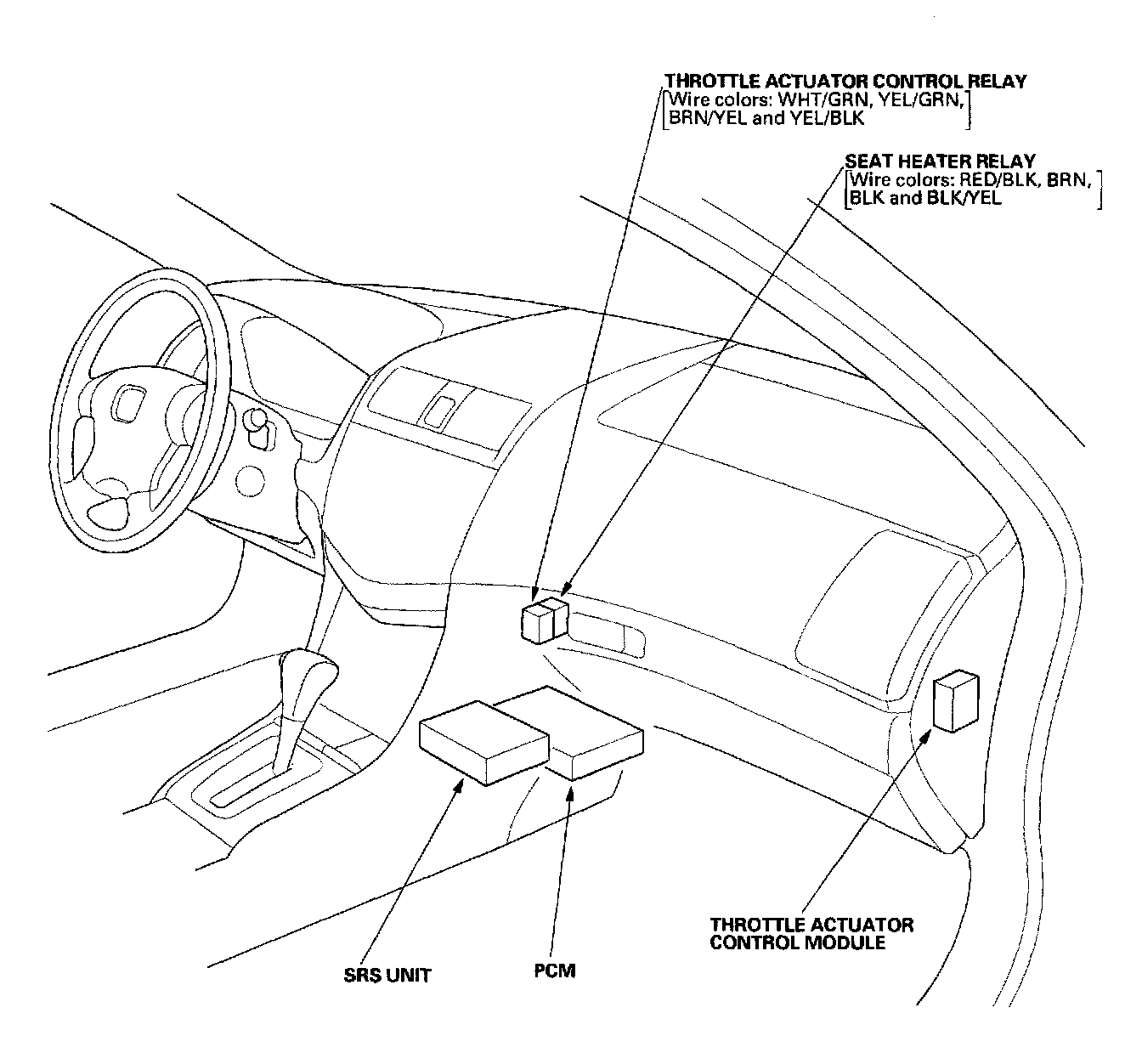

Relay And Control Unit Locations - Dashboard:
