Power Mirror Replacement

Special Tools Required

KTC trim tool set SOJATP2014

NOTE: Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.

Lower the door glass fully.

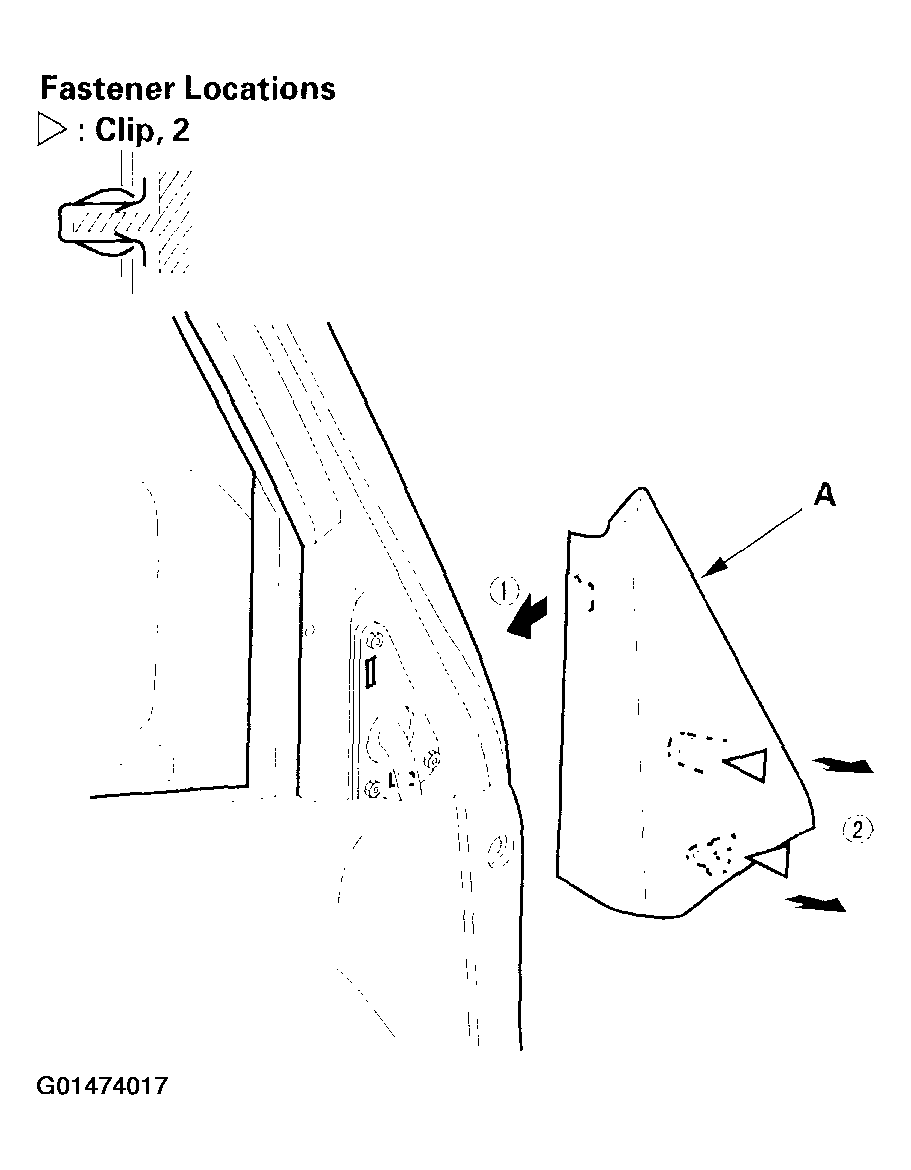

Carefully pry out the mirror mount cover (A) by hand in the sequence shown.

Fig 1: Prying Mirror Mount Cover By Hand
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

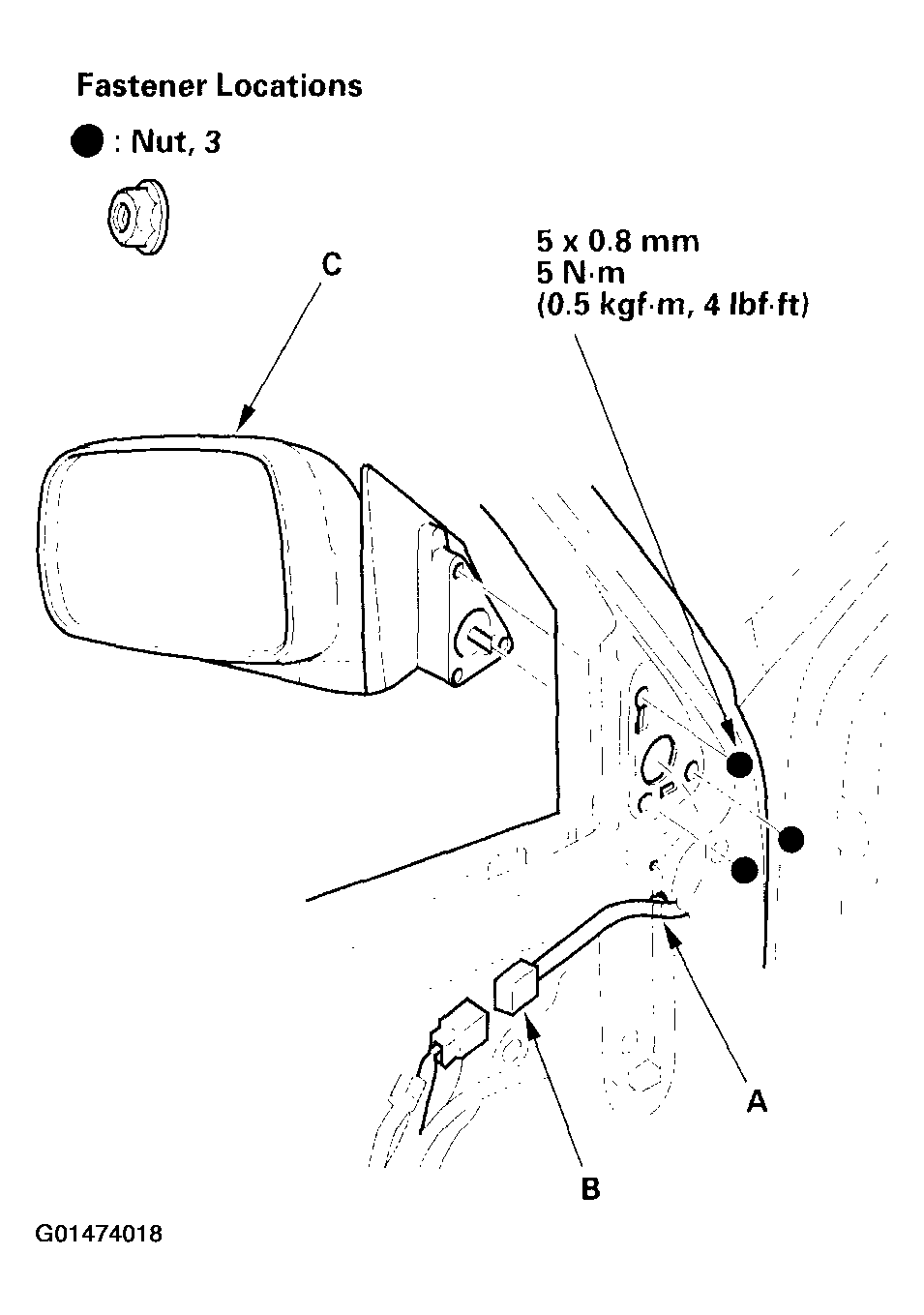

Remove the plastic cover as necessary, then detach the harness clip (A), and disconnect the connector (B). While holding the mirror (C), remove the nuts, then remove the mirror. Take care not to scratch the door.

Fig 2: Disconnecting Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the mirror in the reverse order of removal, and make sure the connector is plugged in properly.
