Power Mirror Switch Test/ Replacement

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 13P connector (A) from the power mirror switch (B).

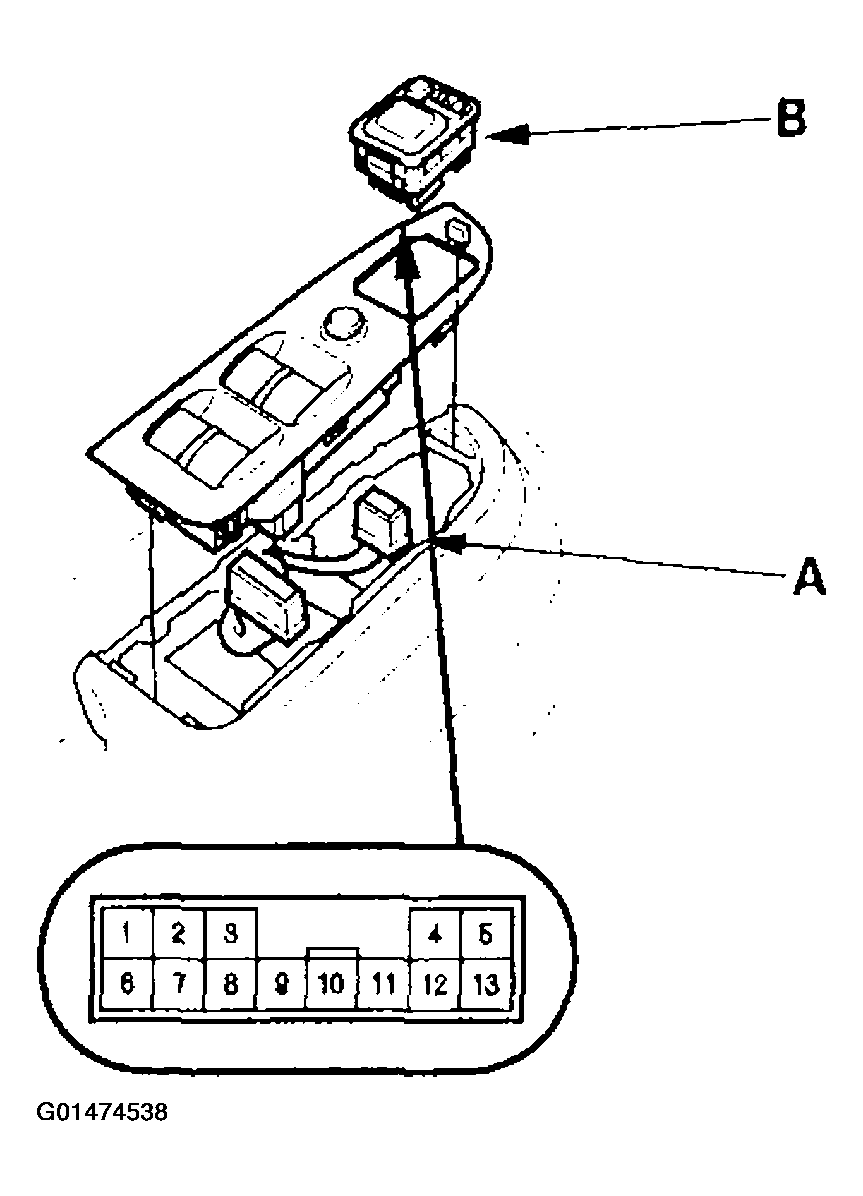

Fig 1: Disconnecting 13-Pin Connector From Power Mirror Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

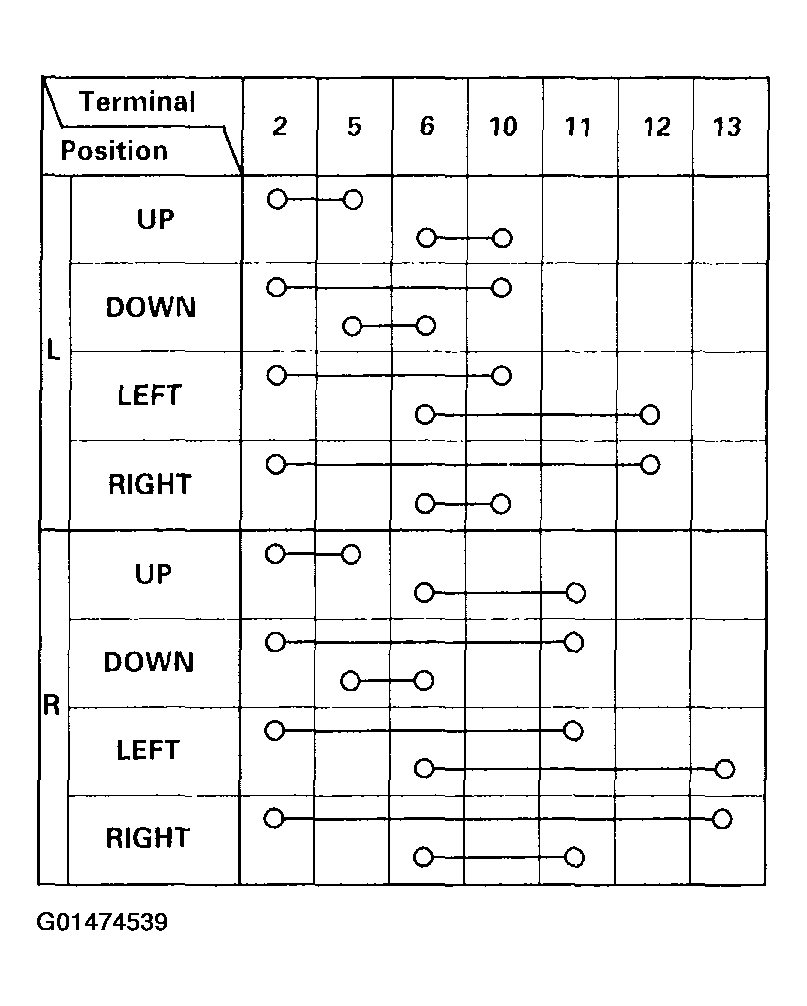

Fig 2: Checking Continuity Between Terminals Each Switch Position Table (Mirror Switch)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Checking Continuity Between Terminals Each Switch Position Table (Defogger Switch - Canada)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
