Test D: Brake System Indicator Does Not Go Off
See
Fig 1
for test flow chart.

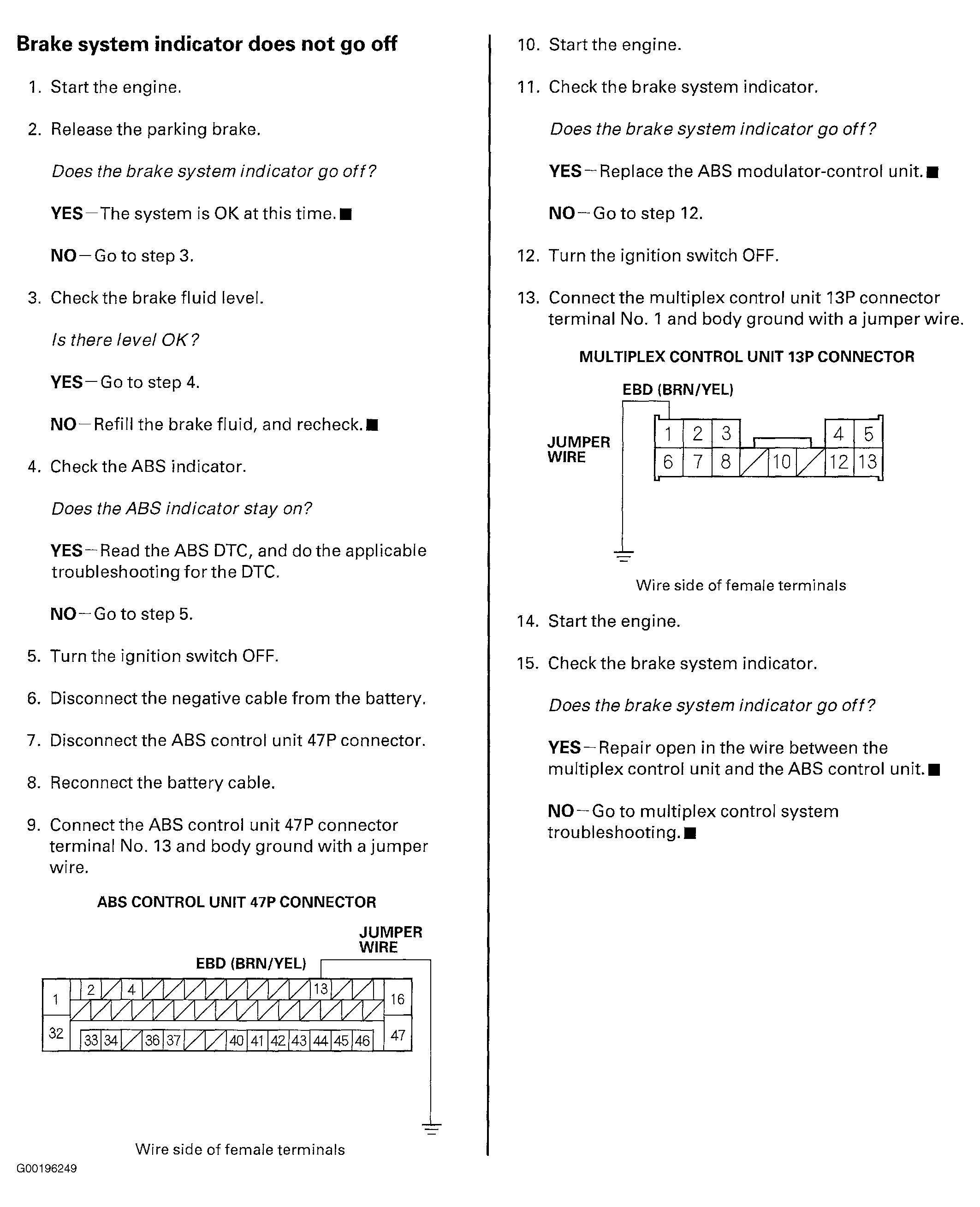

Fig 1: Brake System Indicator Does Not Go Off
Courtesy of AMERICAN HONDA MOTOR CO., INC.
