Fuel Line Inspection

Check the fuel system lines, hoses, and fuel filter for damage, leaks, or deterioration. Replace any damaged parts.

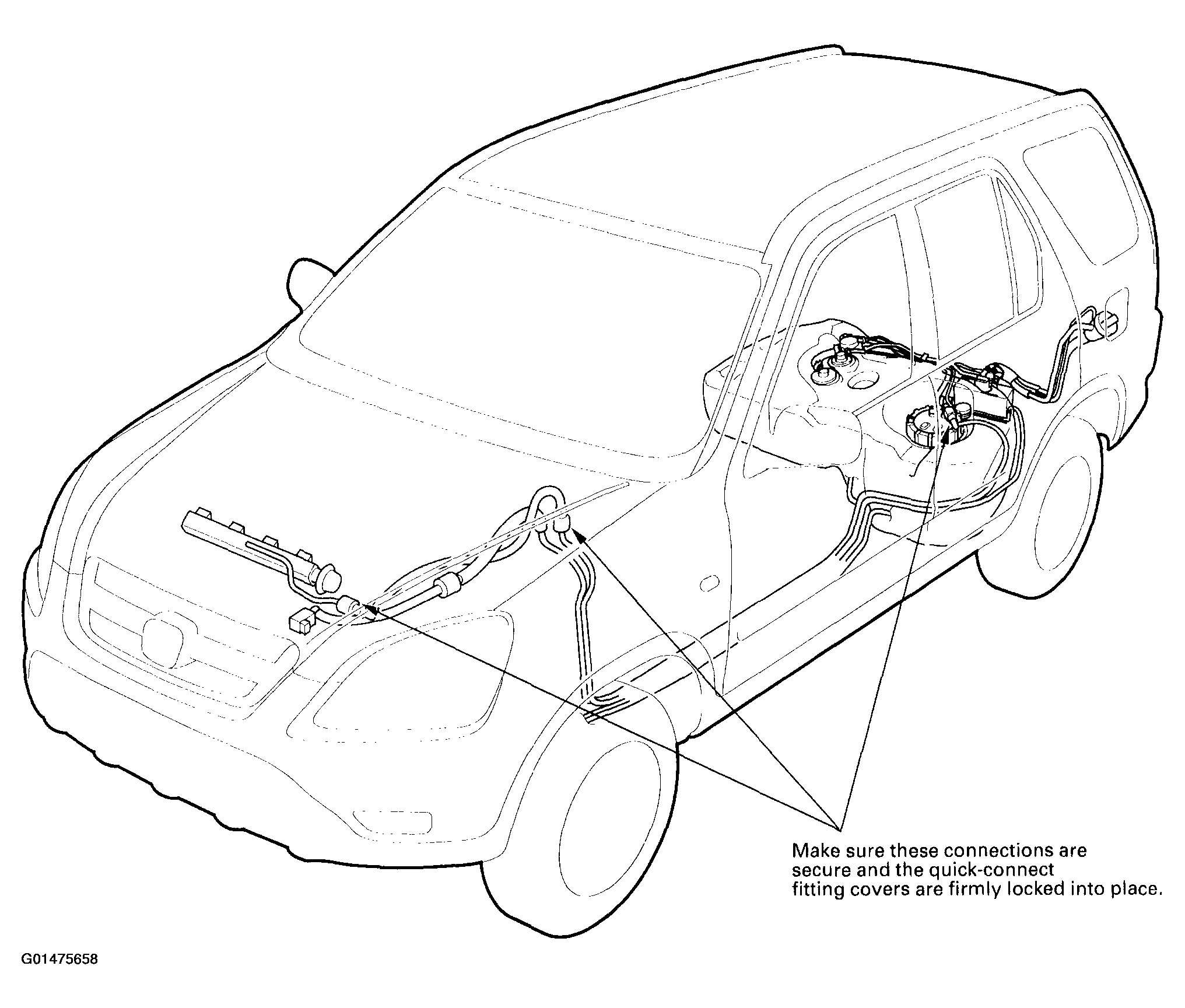

Fig 1: Checking Fuel System Lines, Hoses & Fuel Filter

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps and retighten if necessary.

Fig 2: Checking All Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.
