Body Control Systems: Locations

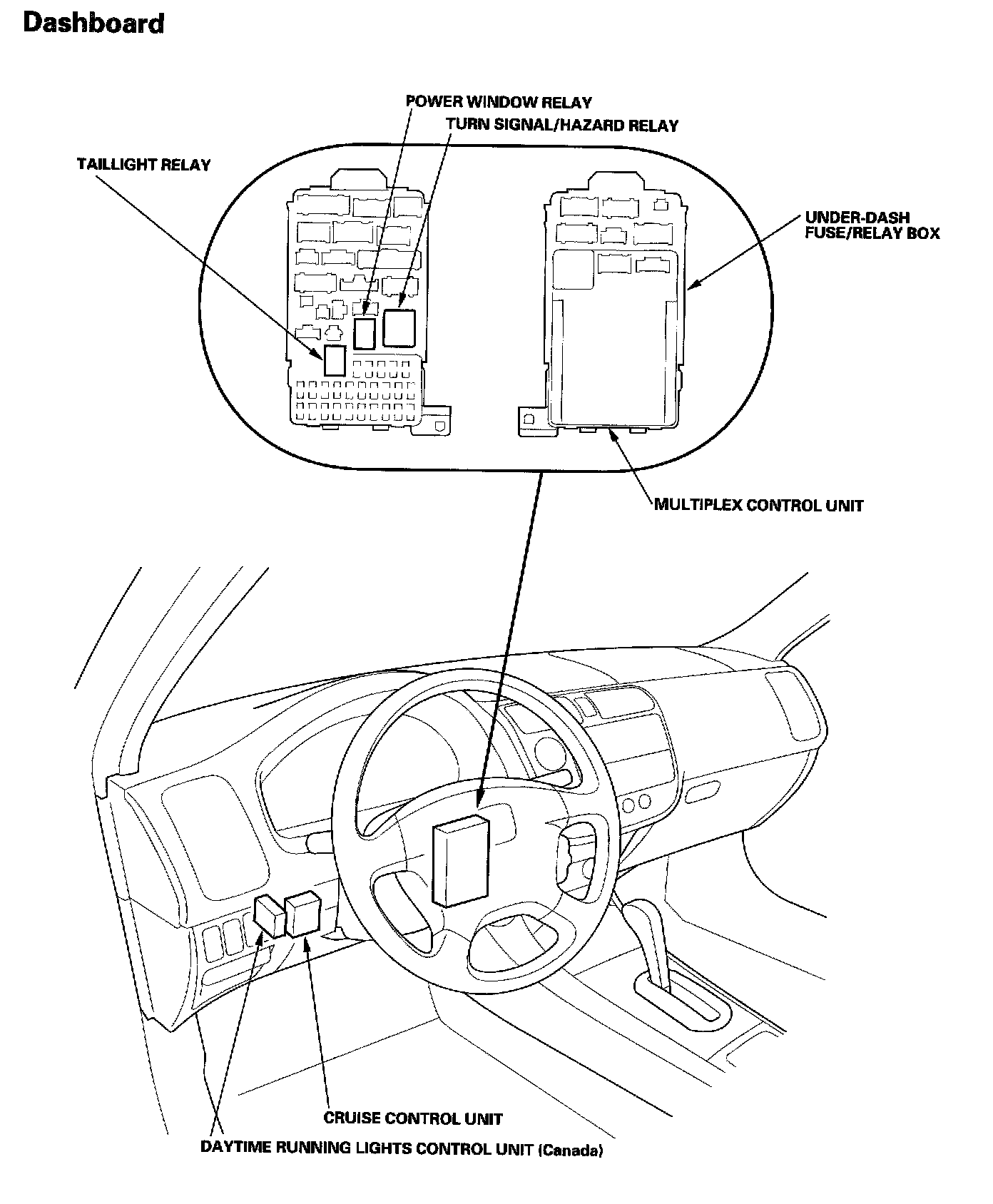

Relay And Control Unit Locations - Dashboard:

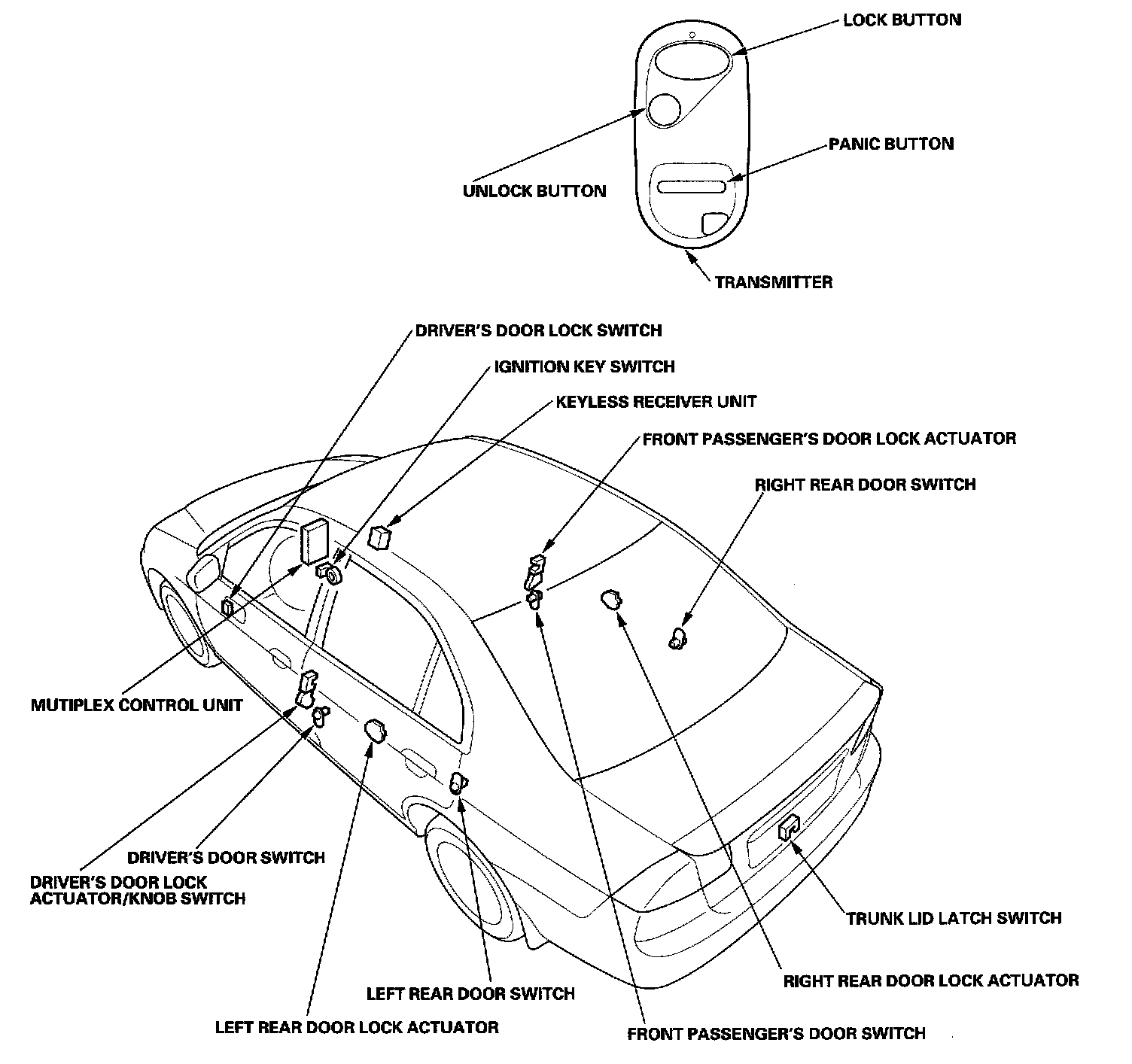

Keyless/Power Door Lock System - Component Location Index:

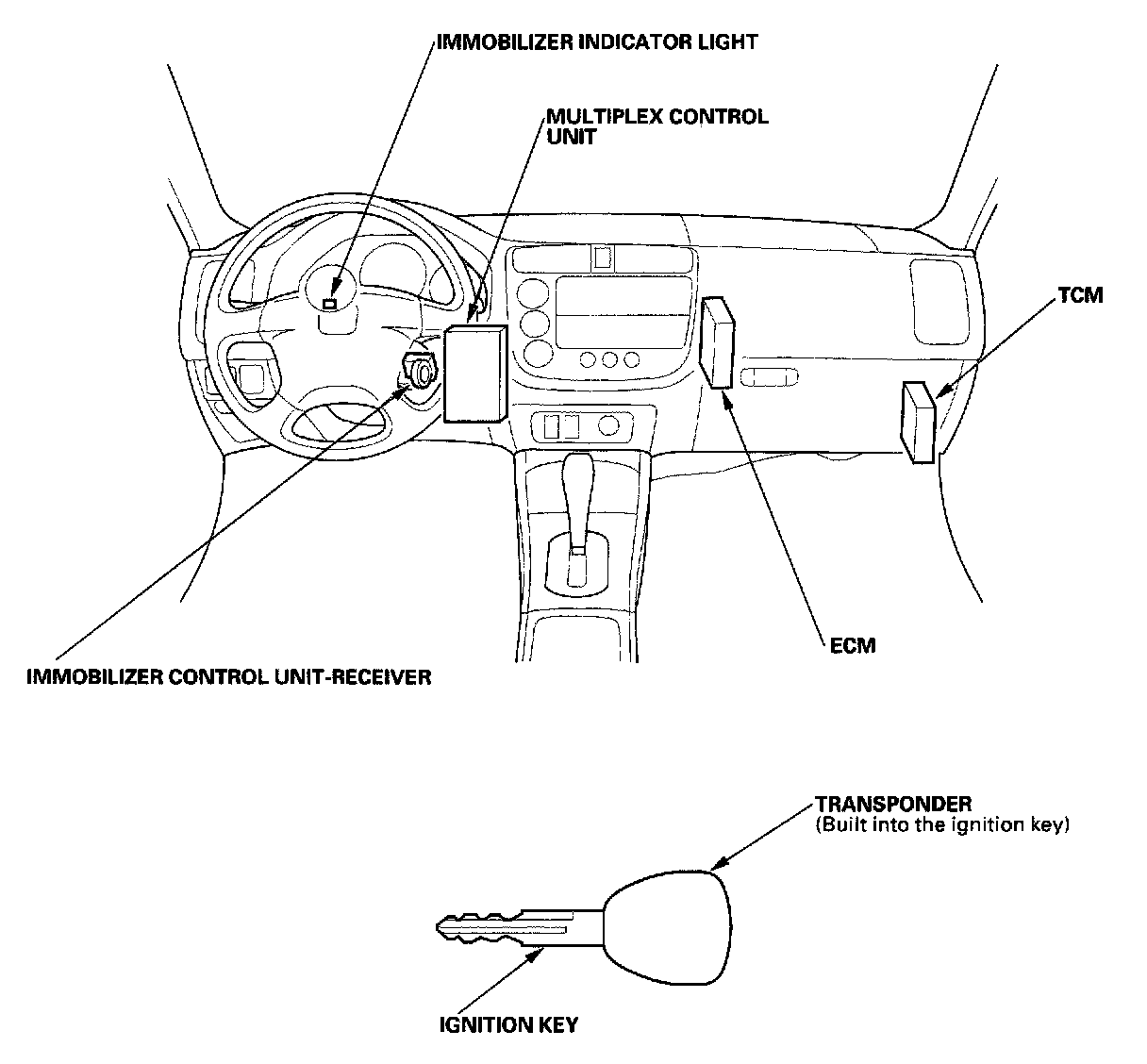

Immobilizer System - Component Location Index:

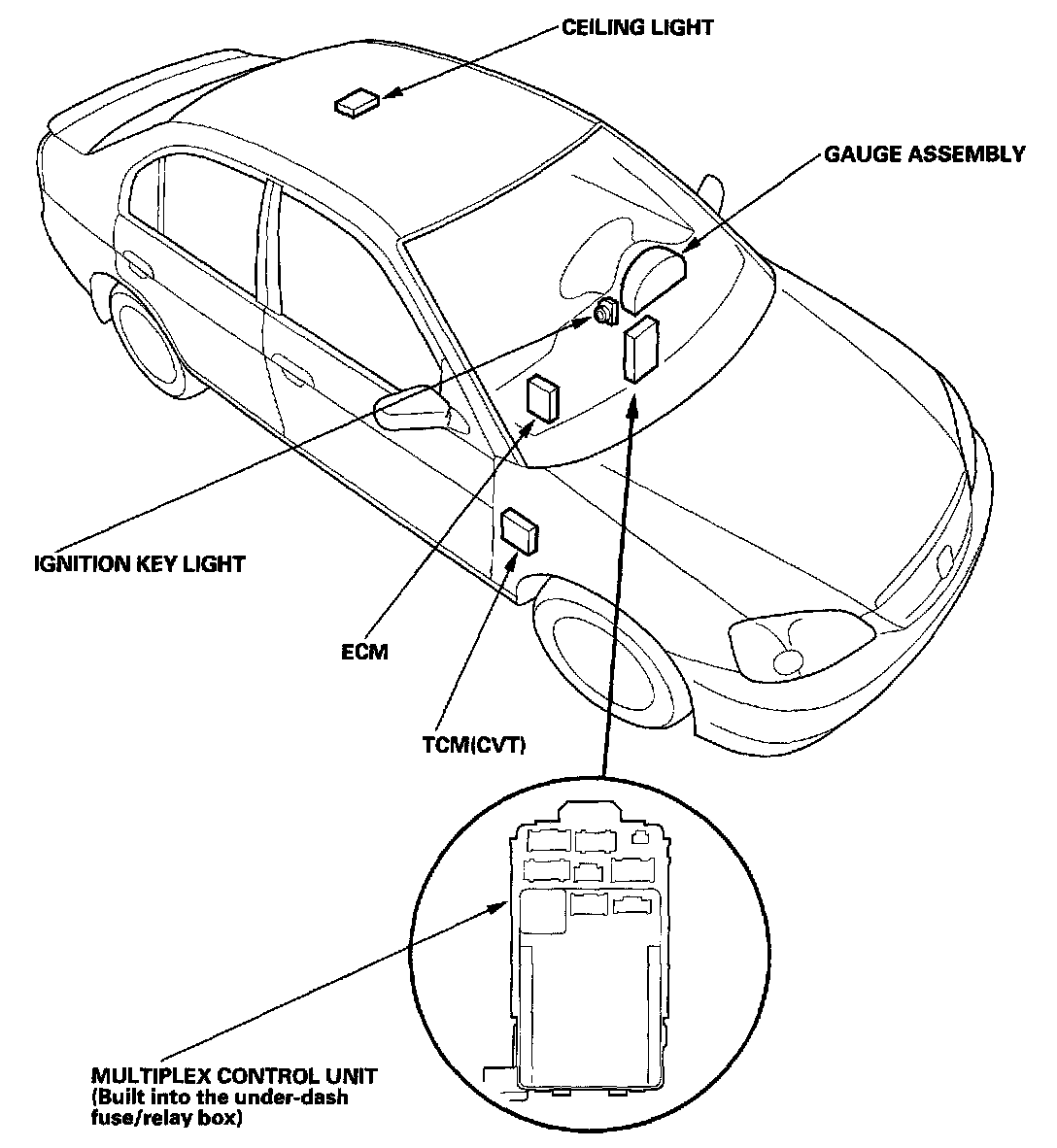

Multiplex Control System - Component Location Index:
