Cruise Control Actuator Input Test

Cruise Control Actuator Input Test

2-door D17A1, D17A2 engines:

1. Disconnect the 12P connector from the actuator.




2. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 3.

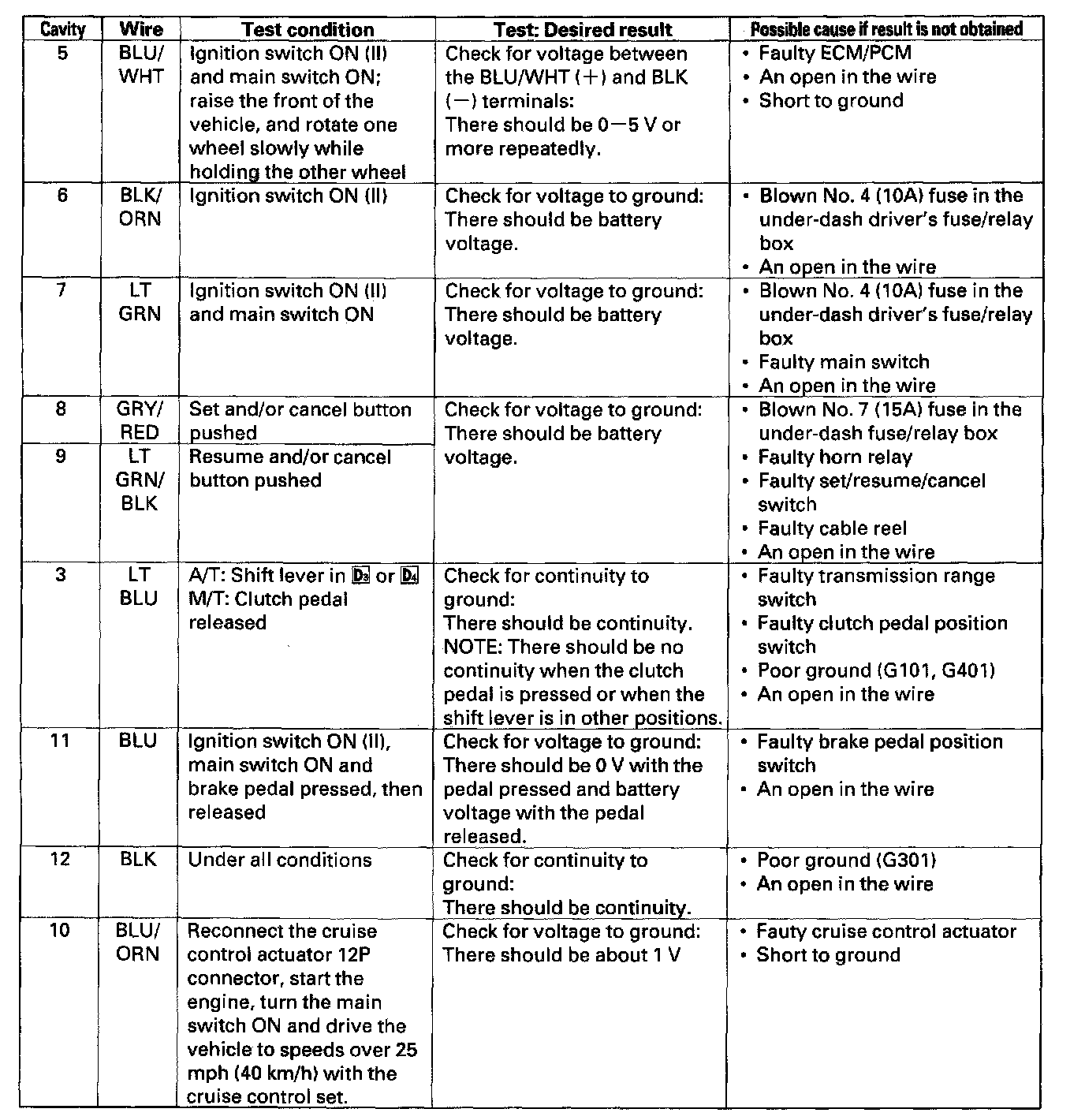

3. With the 12P connector disconnected, make these input tests.
4. If any test indicates a problem, find and correct the cause, then recheck the system. If all the input tests prove OK, the actuator may be faulty. Substitute a known-good control unit and retest. If the system works properly, replace the cruise control actuator.
