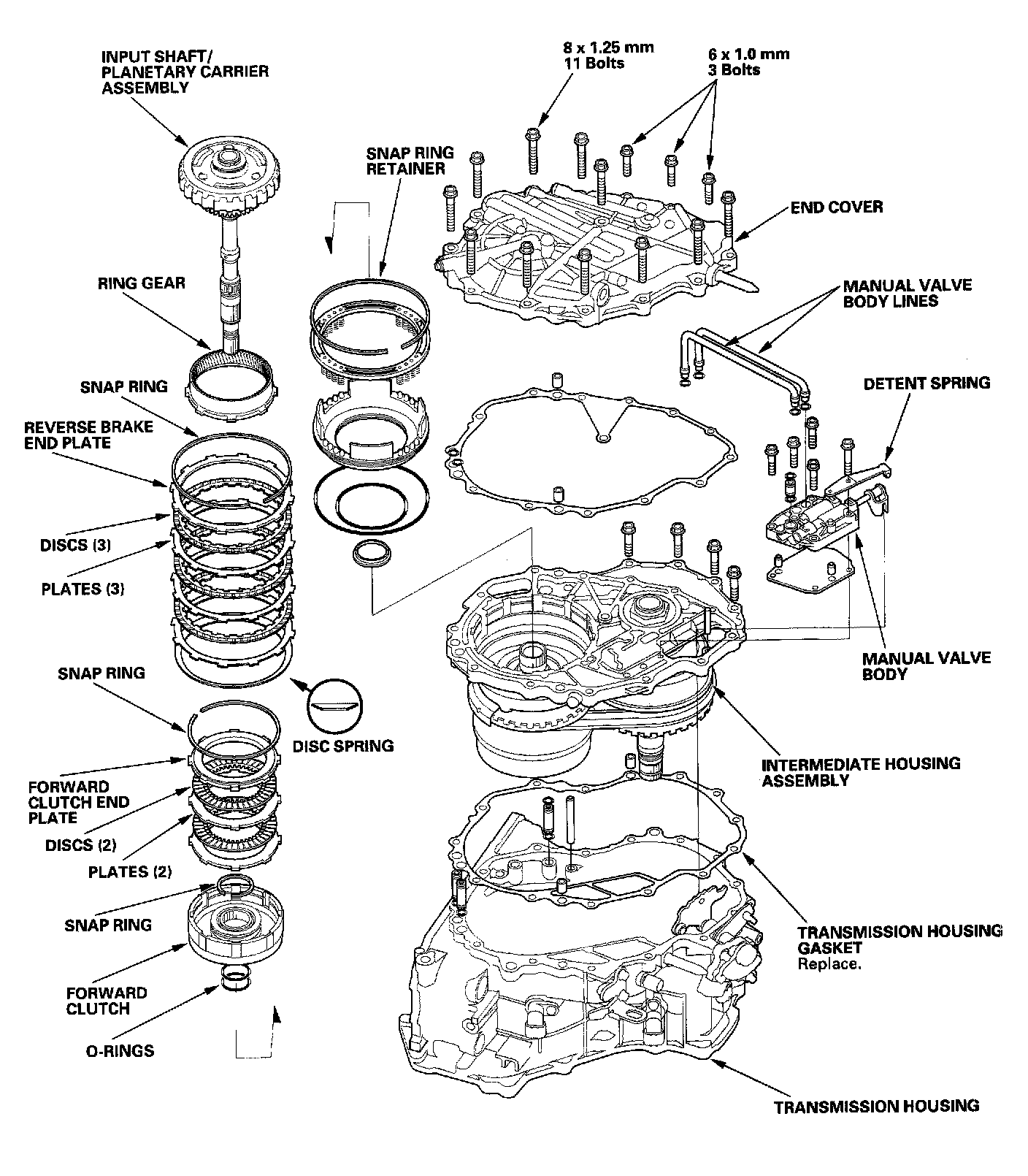

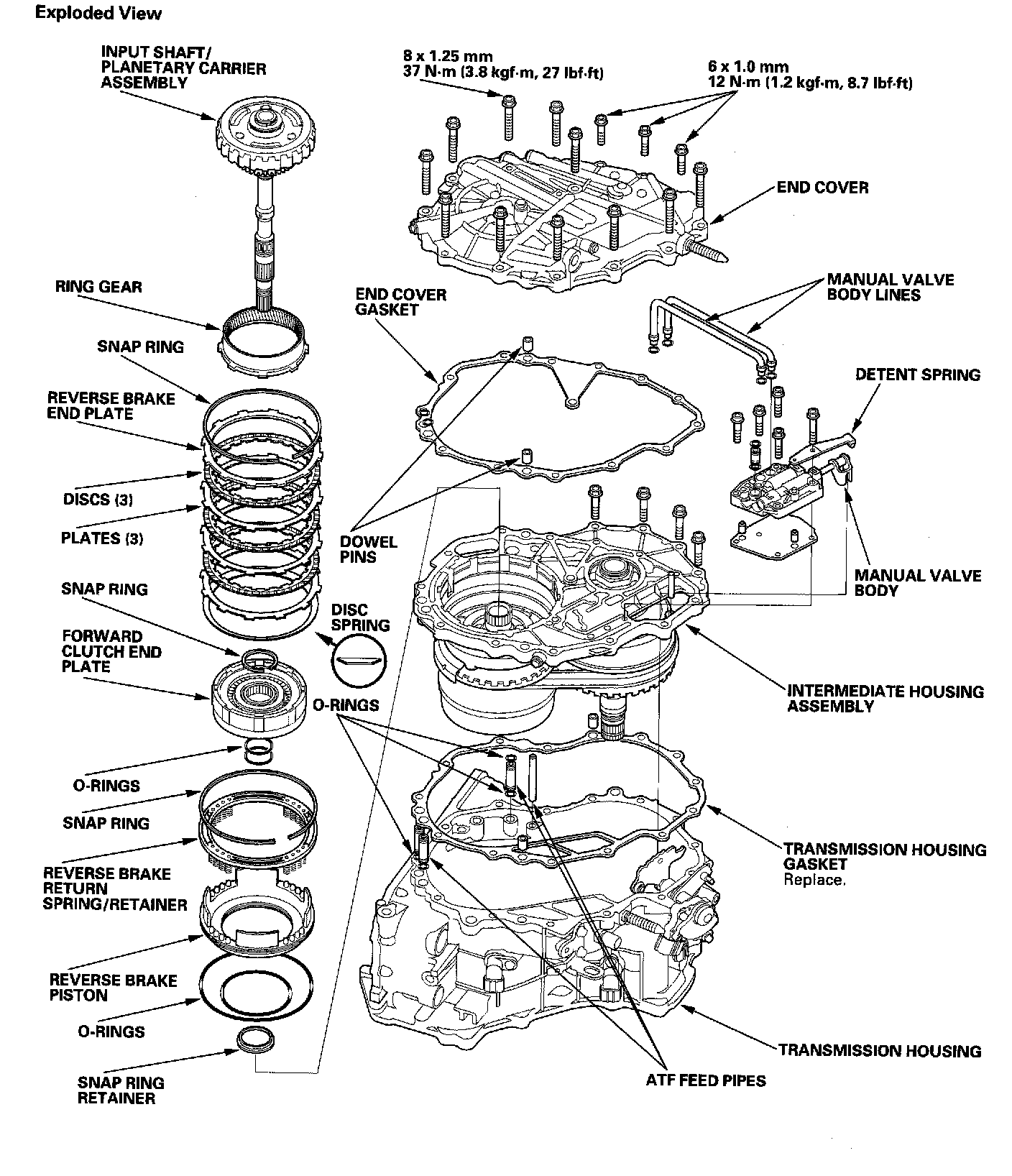

End Cover/Intermediate Housing




Forward Clutch, Reverse Brake, and Intermediate Housing Removal




Intermediate Housing, Reverse Brake, and Forward Clutch Installation
