Passenger's Window Switch Input Test
Passenger's Switch Input Test1. Remove the switch panel.

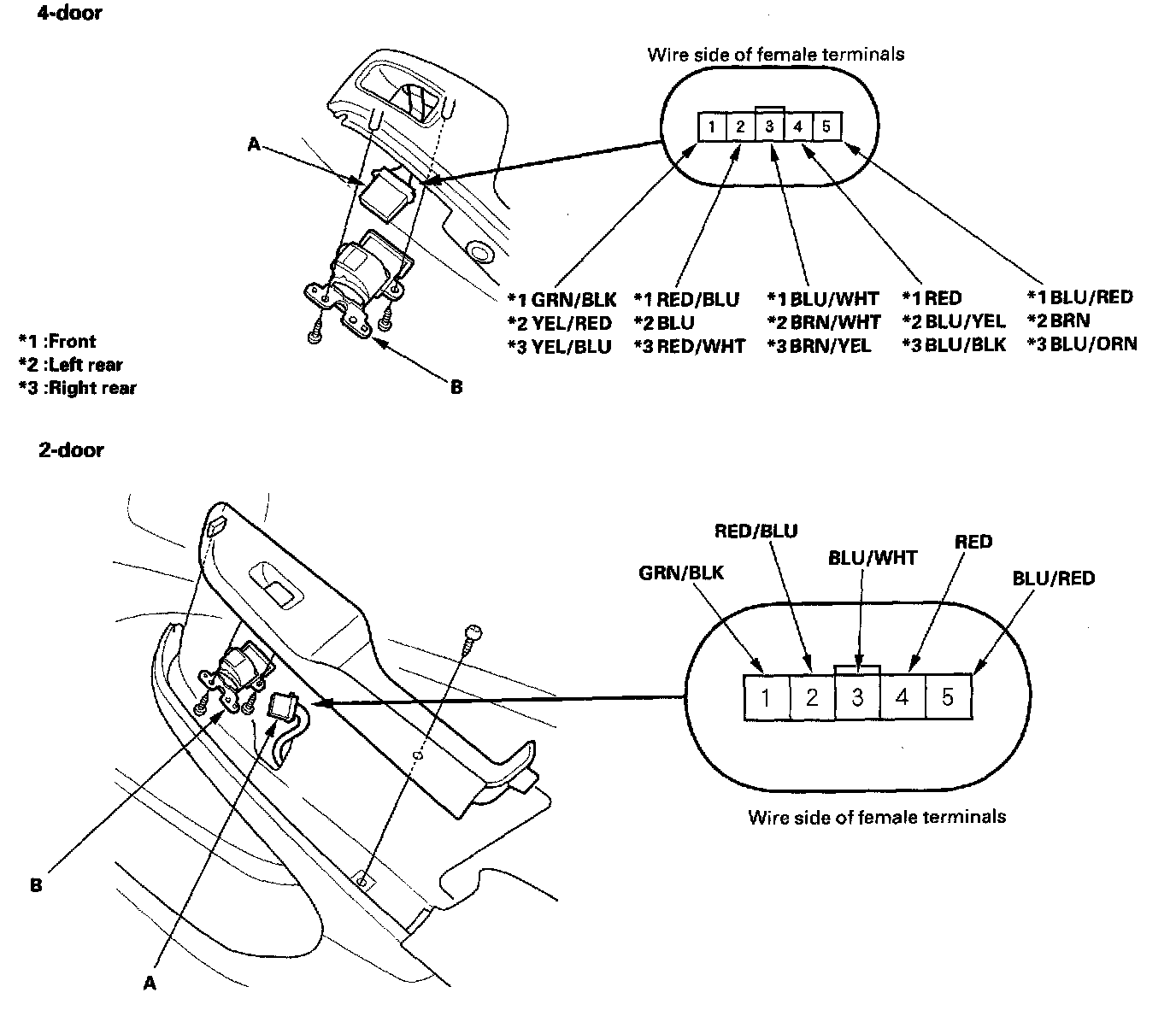

2. Disconnect the 5P connector (A) from the switch (B).
3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

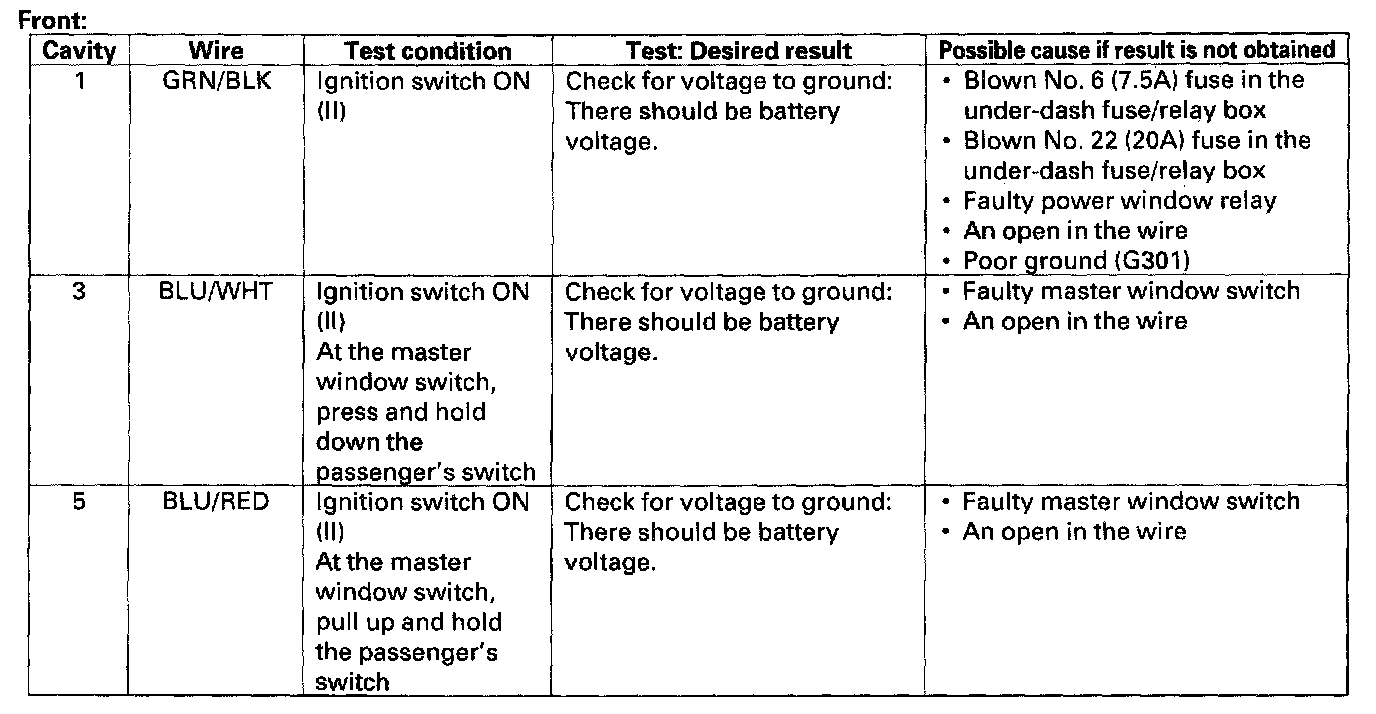

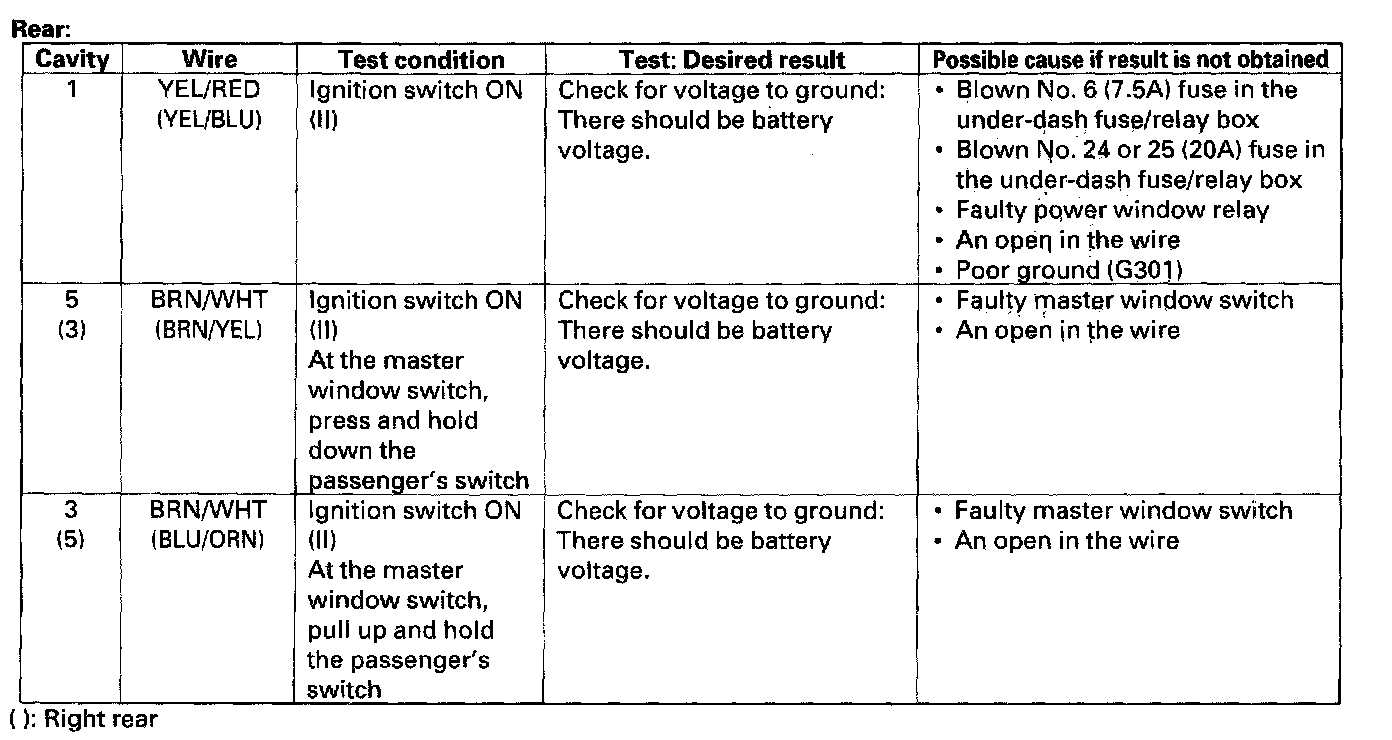

4. Reconnect the connector, and make these input tests at the connector. If any test indicates a problem, find and correct the cause, then recheck the system.
5. Disconnect the 5P connector, and make these input tests.
