Ignition Switch (Hatchback): Test

NOTE: SRS components are located in this area. Review the SRS component locations and precautions and procedures before performing repairs or service. See AIR BAG RESTRAINT SYSTEMS .

Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Disconnect the 5P connector from the under-dash fuse/relay box.

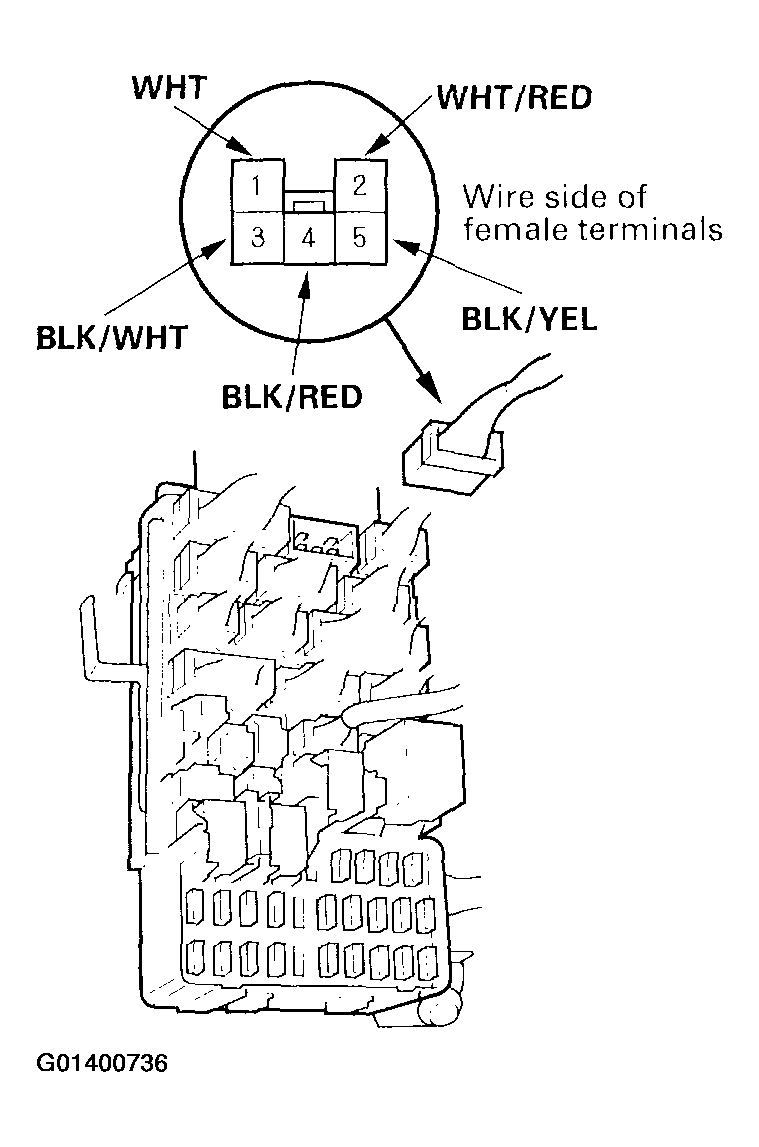

Fig 1: Disconnecting The 5P Connector From The Under-Dash Fuse/Relay Box & Identifying Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table. See Fig 2 .

Fig 2: Ignition Switch Continuity Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity checks do not agree with the table, replace the steering lock assembly (see STEERING LOCK REPLACEMENT ).
