Fuel Pipe Protector Replacement

Fuel Pipe Protector Replacement

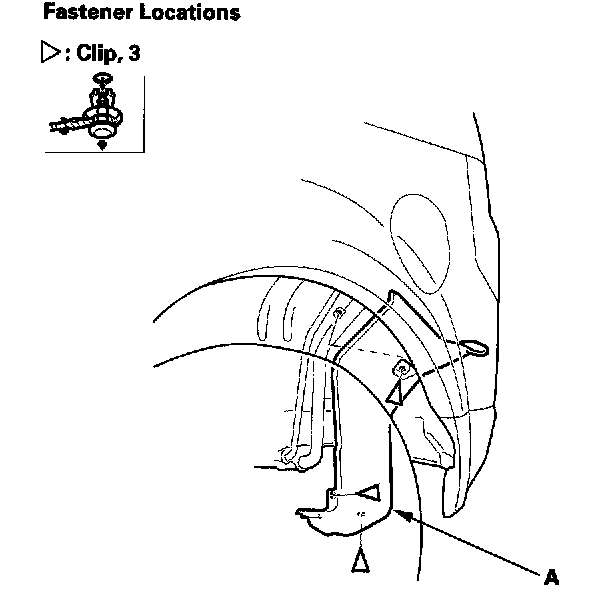

1. Remove the clips, then remove the fuel pipe protector (A). Take care not to scratch the body.
2. Install the protector in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Push the clips into place securely.
