Splash Shield Replacement
FenderwellSplash Shield Replacement
NOTE: Take care not to scratch the body.

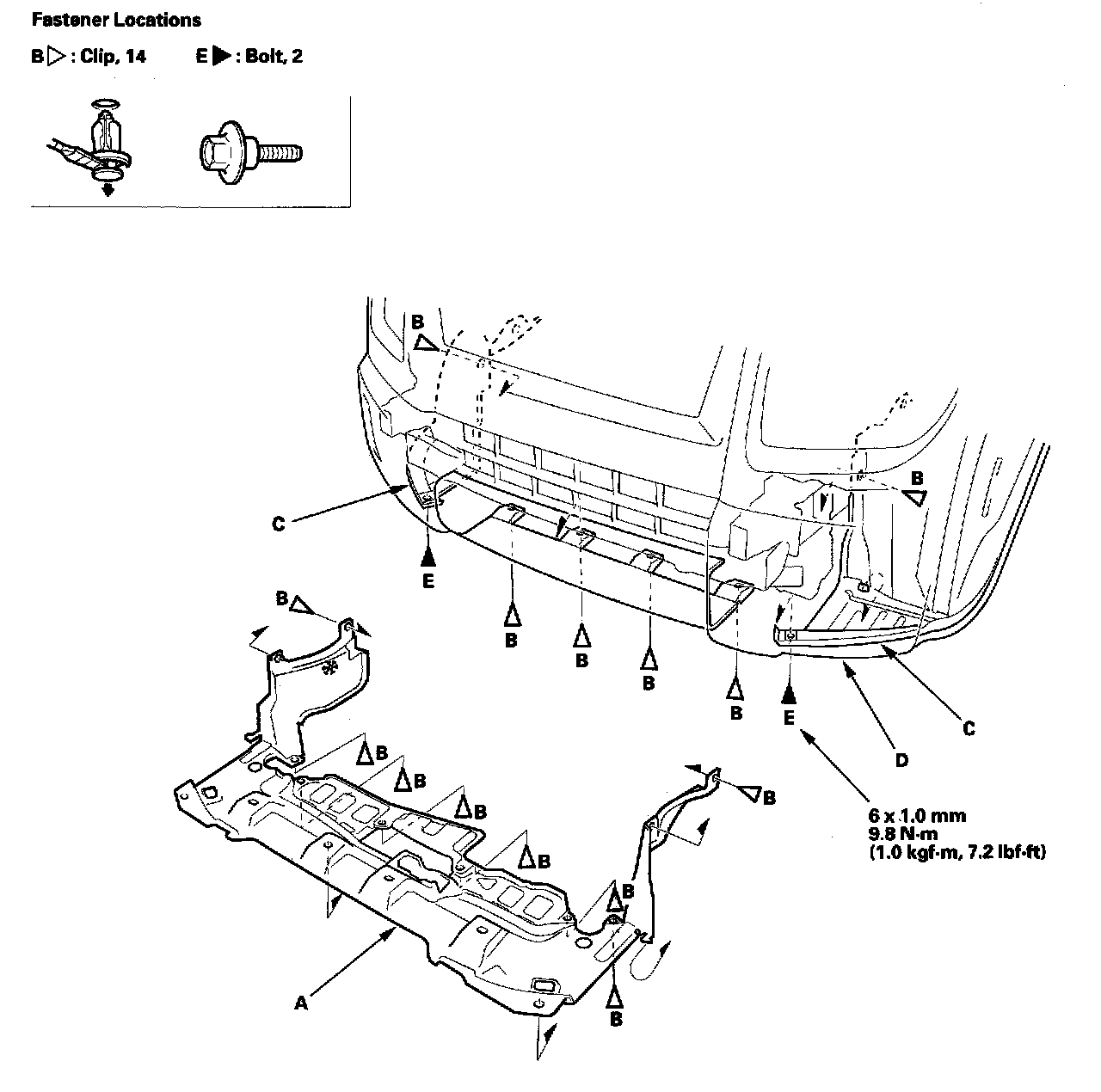

1. Remove the splash shield (A).
1. From both wheel arches, remove the clips (B) securing the front inner fender (C) and splash shield to the body.
2. From under the front bumper (D), remove the clips (B) and bolts (E).
3. Pull the splash shield out.
2. Install the splash shield in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Push the clips into place securely.
