SRS Unit Replacement

SRS Unit Replacement

Removal

1. Disconnect the battery negative cable, and wait at least 3 minutes before beginning work.
2. Disconnect the driver's and front passenger's airbag connectors.
3. Disconnect the side airbag connectors.
4. Disconnect both seat belt tensioner connectors and both seat belt buckle tensioner connectors.
5. Remove the dashboard center lower cover.

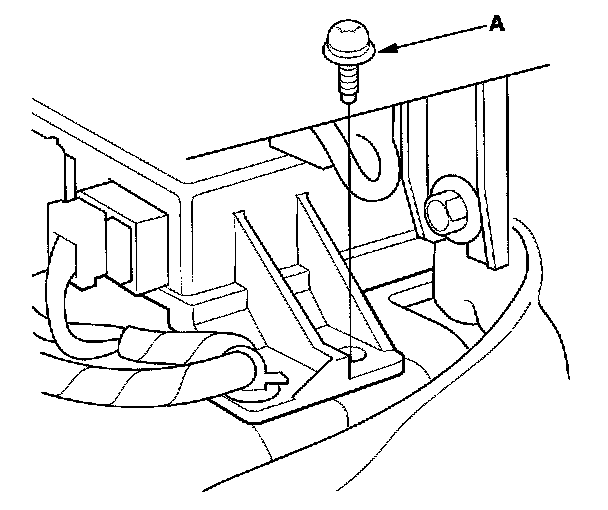

6. Pull down the carpet, then remove the torx bolt (A) from the SRS unit.




7. Disconnect the connectors and remove the two torx bolts (A), then pull out the SRS unit.

Installation

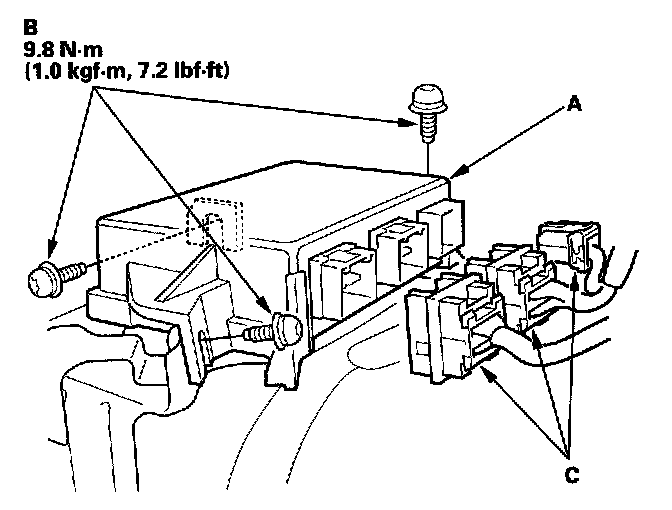

1. Install the new SRS unit (A) with Torx bolts (B), then connect the connectors (C) to the SRS unit; push them into position until they click.

NOTE: Be sure the SRS unit is sitting squarely against its bracket before torquing the Torx bolts.

2. Reinstall the dashboard center lower cover.
3. Reconnect the driver's and front passenger's airbag connectors.
4. Reconnect the side airbag connectors.
5. Reconnect both seat belt tensioner connectors and both seat belt buckle tensioner connectors.
6. Reconnect the battery negative cable.
7. After installing the SRS unit, confirm proper system operation: Turn the ignition switch ON (II); the SRS indicator should come on for about 6 seconds and then go off.
