ATF Level Check

NOTE: Keep all foreign particles out of the transmission.

Warm up the engine to normal operating temperature (the radiator fan comes on).
Park the vehicle on level ground, and turn the engine off.
NOTE: Check the fluid level within 60-90 seconds after turning the engine off.
Remove the dipstick (yellow loop) (A) from the transmission, and wipe it with a clean cloth.

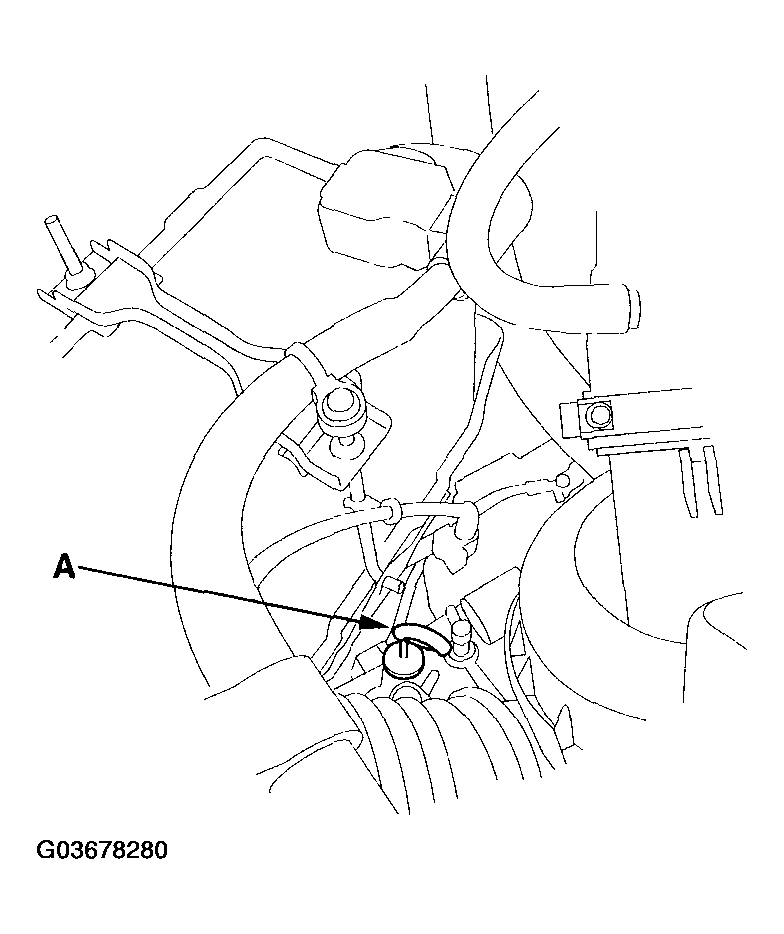

Fig 1: Removing Dipstick From Transmission
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert the dipstick back into the transmission.
Remove the dipstick (A), and check the fluid level. It should be at the upper mark (B).

Fig 2: Identifying Fluid Level On Dipstick
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the level is below the upper mark, check for fluid leaks at the transmission, hose and line joints, and cooler lines.
If a problem is found, fix it before filling the transmission.

If the level is above the upper mark, drain the ATF to proper level (see step 3 ).
If necessary fill the transmission through the dipstick hole to bring the fluid level up to the upper mark. Always use Honda ATF-Z1 Automatic Transmission Fluid (ATF). Using a non-Honda ATF can affect shift quality.
Insert the dipstick (A) back into the transmission with the handle pointing toward the breather pipe (B).

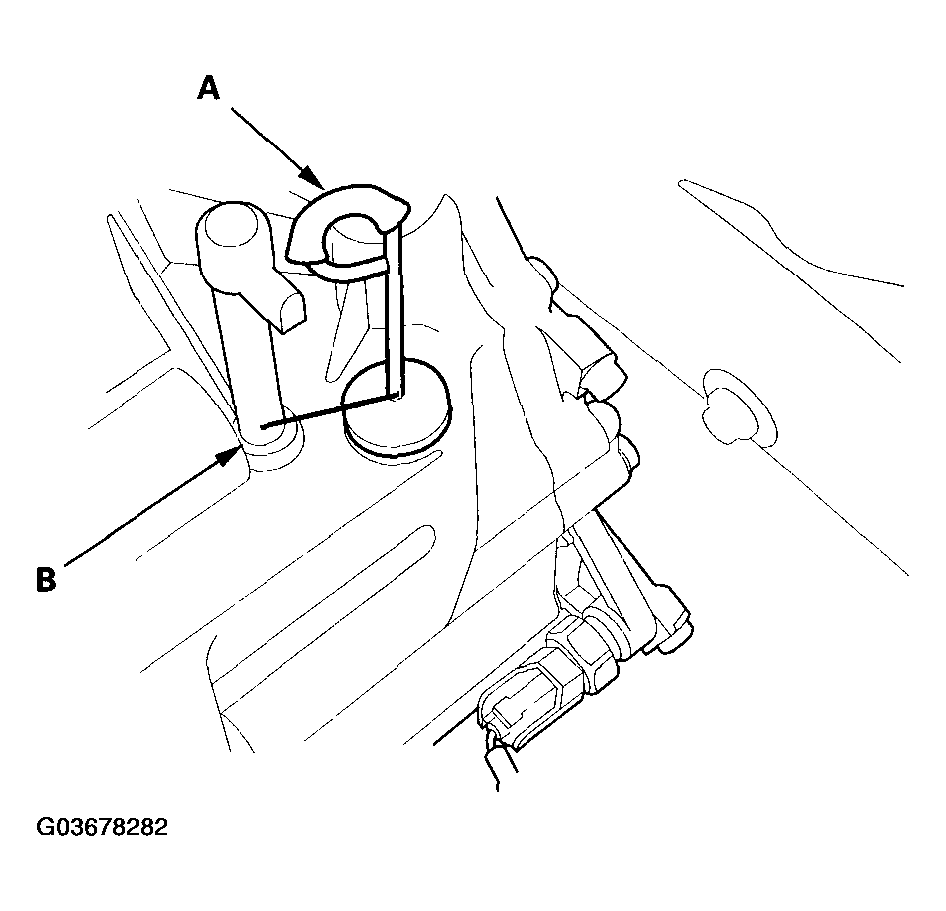

Fig 3: Inserting Dipstick Into Transmission
Courtesy of AMERICAN HONDA MOTOR CO., INC.
