Electronic Controls Location

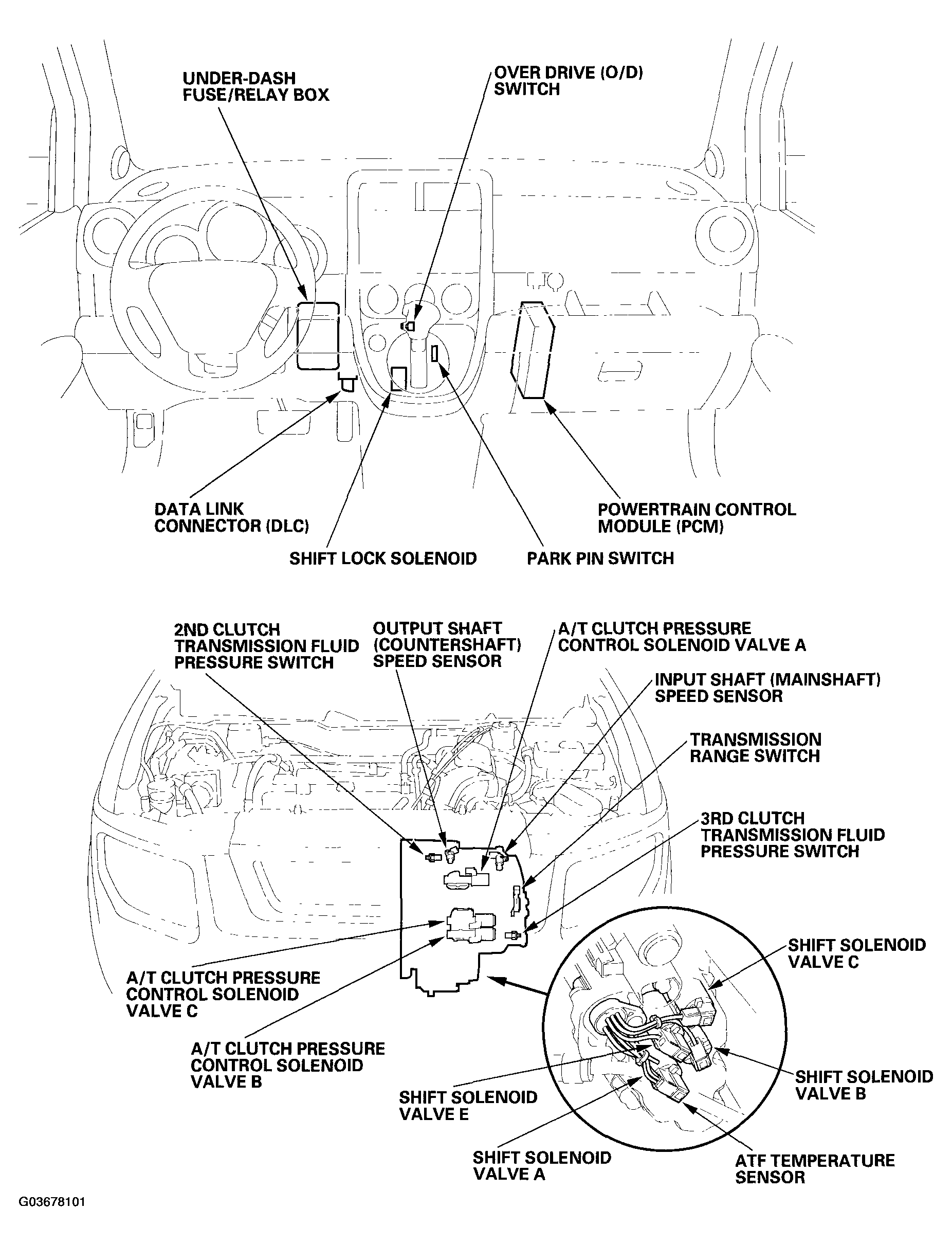

Fig 1: Identifying Electronic Controls Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
