PCM Inputs and Outputs

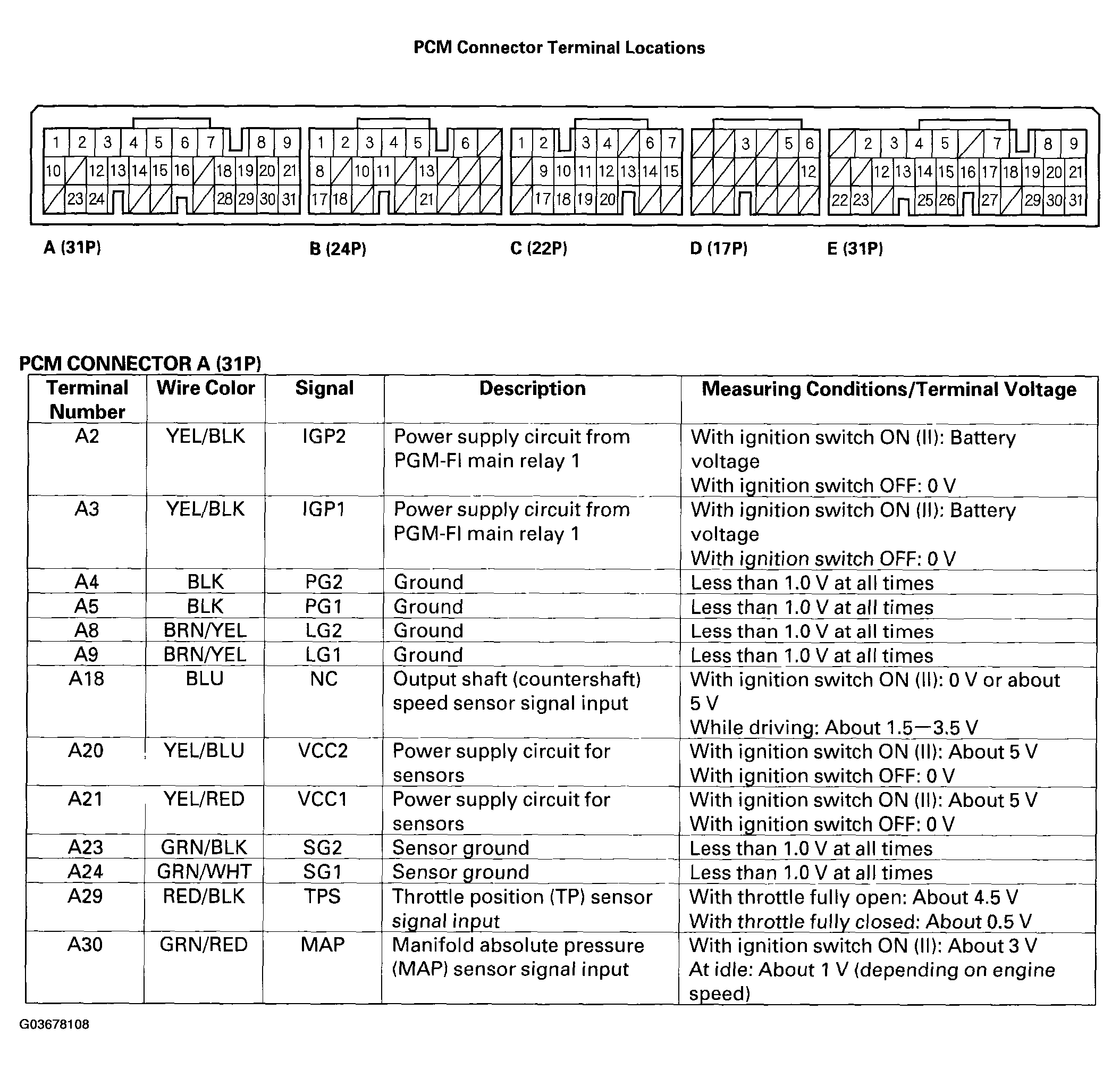

Fig 1: Identifying PCM Connector Terminal Locations (PCM Connector A 31P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

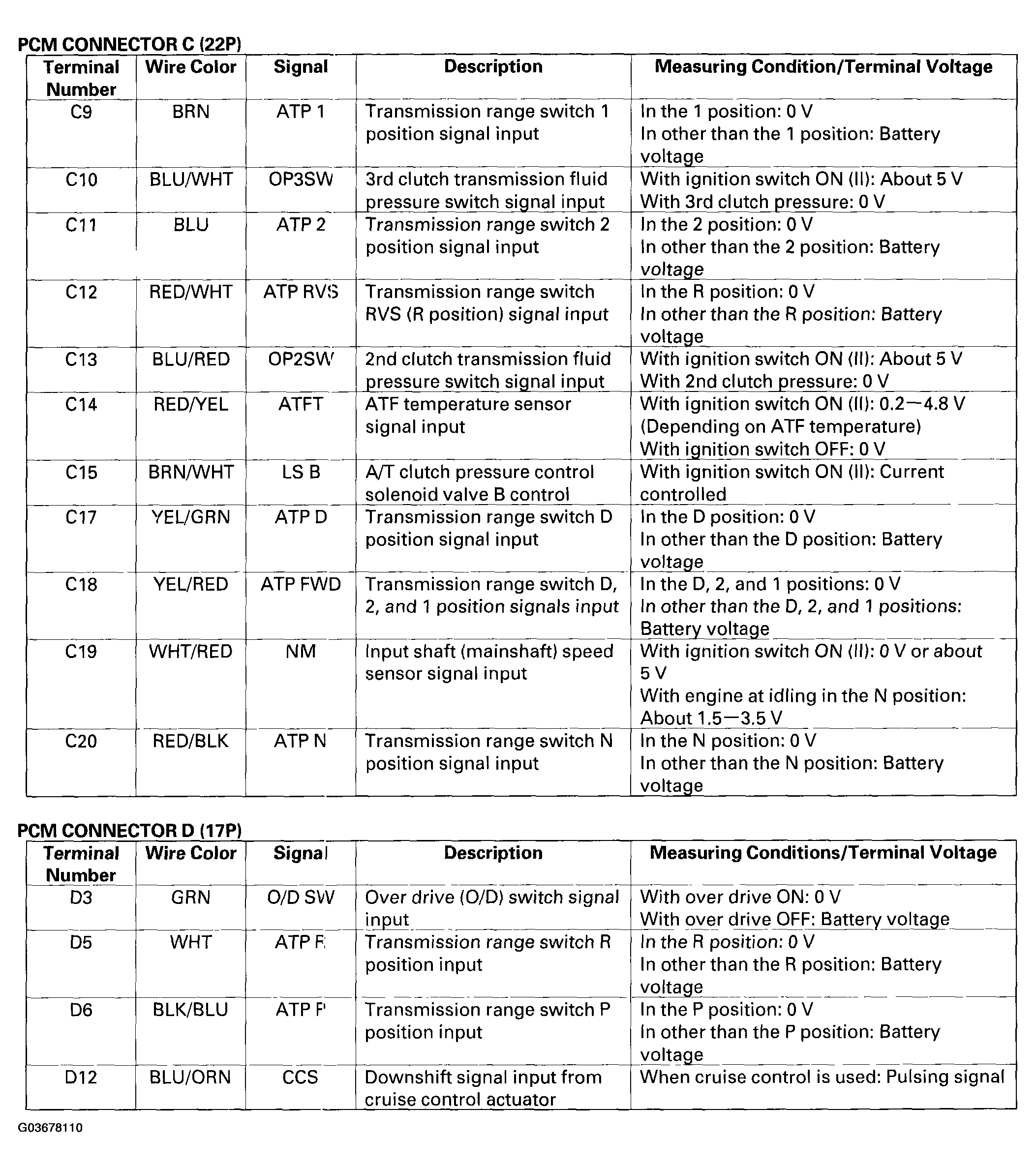

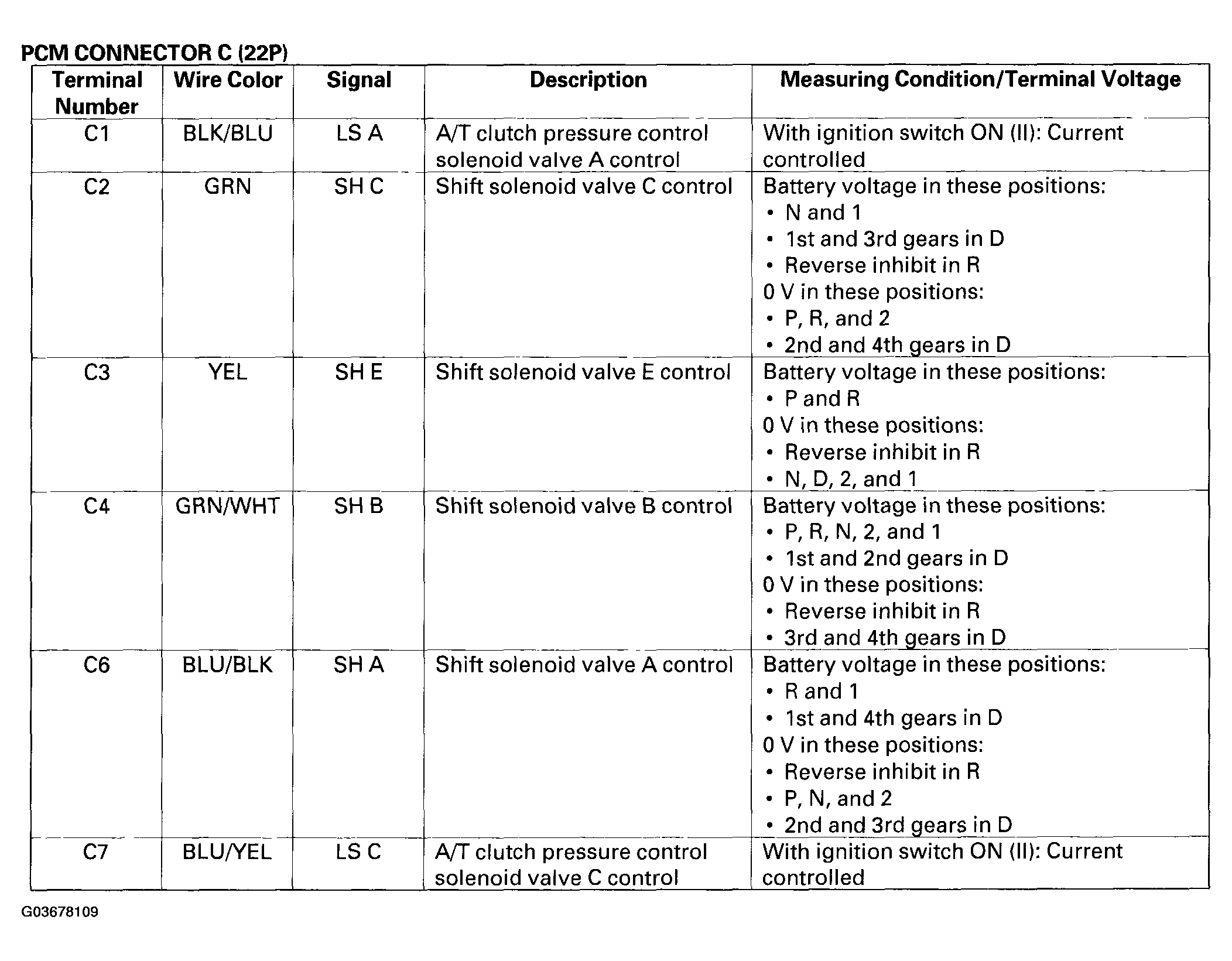

Fig 2: Identifying PCM Connector Terminal Locations And Description (C 22P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: PCM Connector D (17P) Terminal Description

Courtesy of AMERICAN HONDA MOTOR CO., INC.

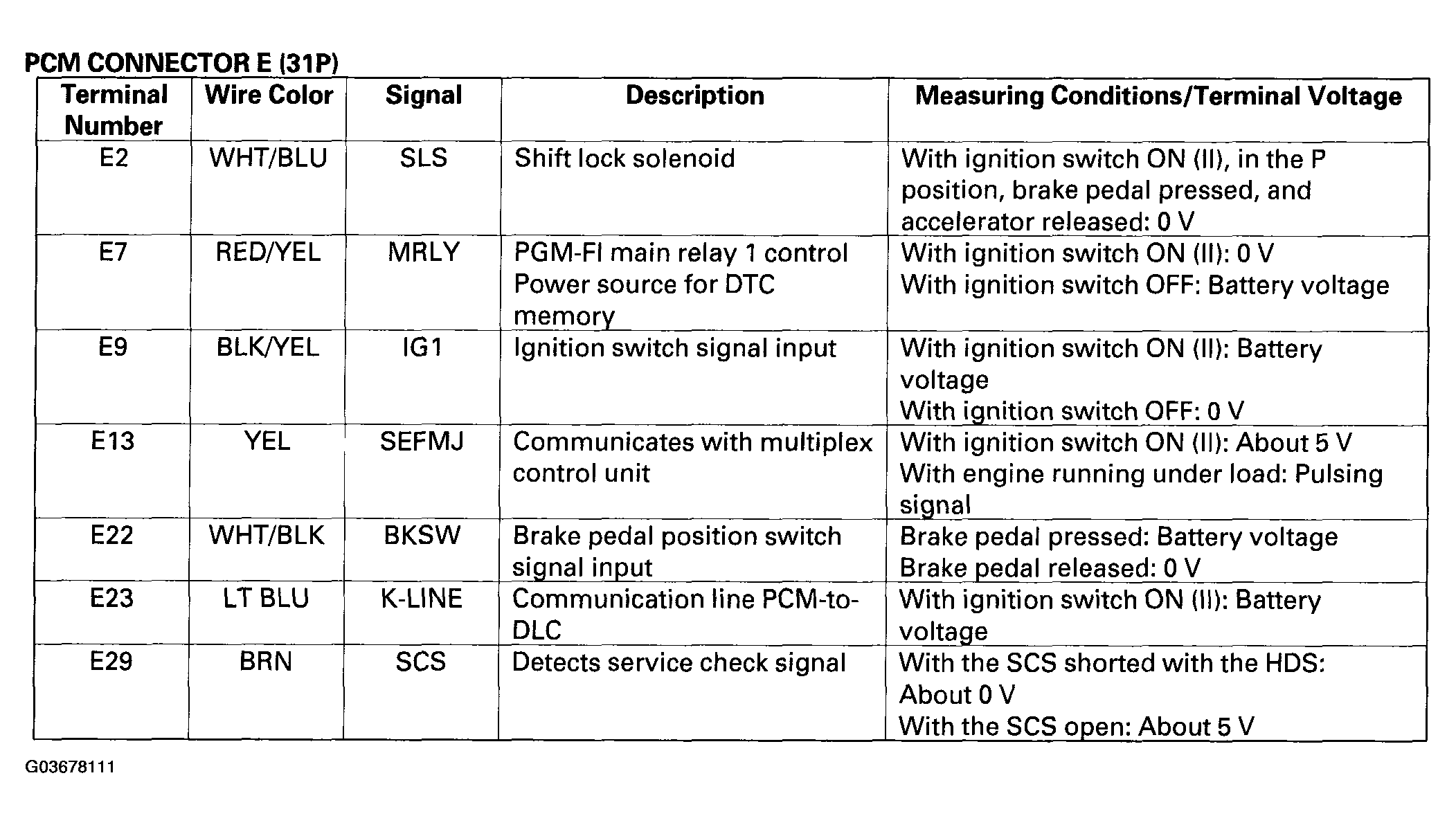

Fig 4: Identifying PCM Connector Terminal Location And Description (E 31P)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
