Exploded View - 2003-2004 Models

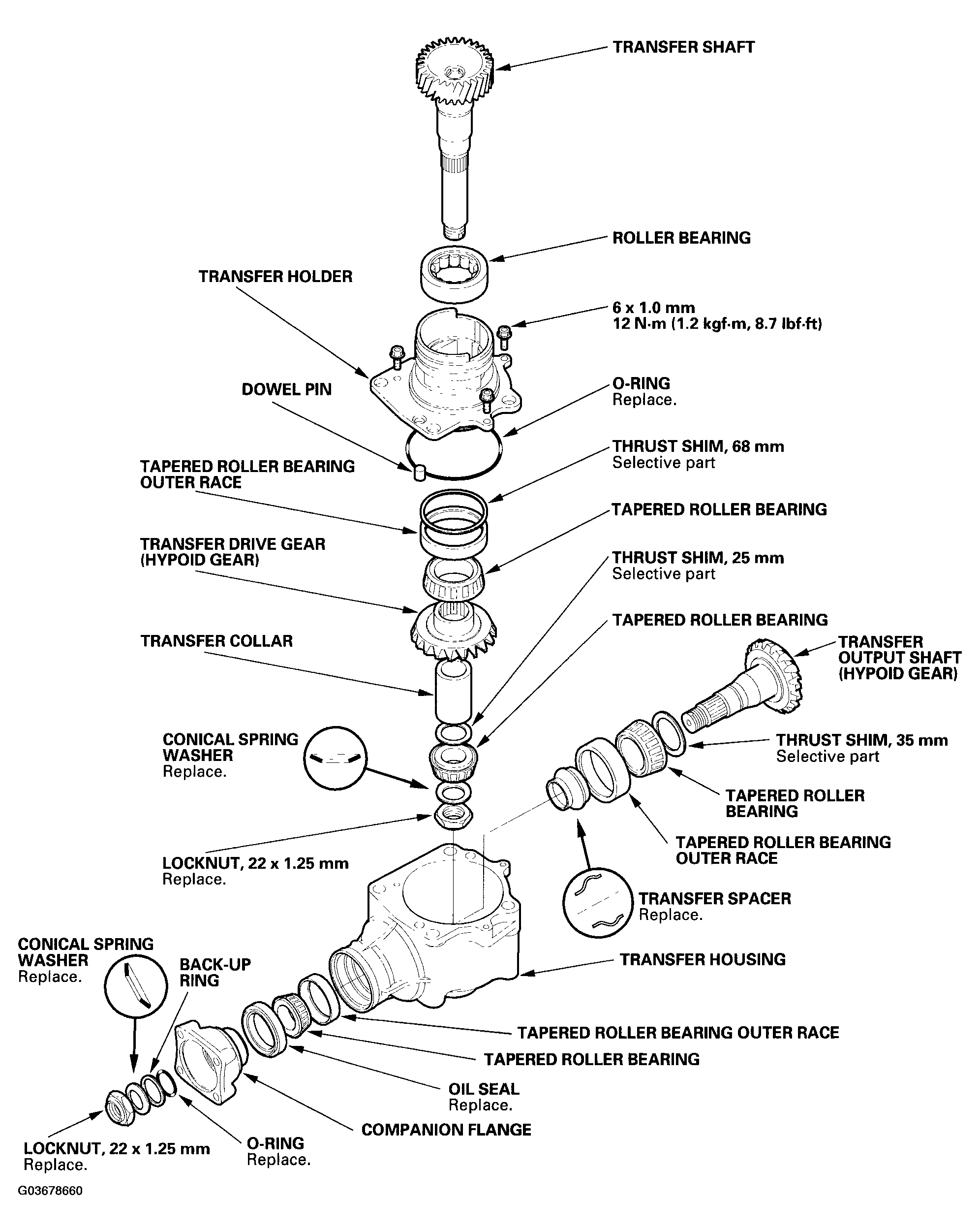

Fig 1: Exploded View Of Transfer Assembly And Torque Specifications(2003 - 2004 Models)
G03678660Courtesy of AMERICAN HONDA MOTOR CO., INC.
