Front Subframe Torque
NOTE:
After loosening the subframe mounting bolts, be sure to replace them with new ones.

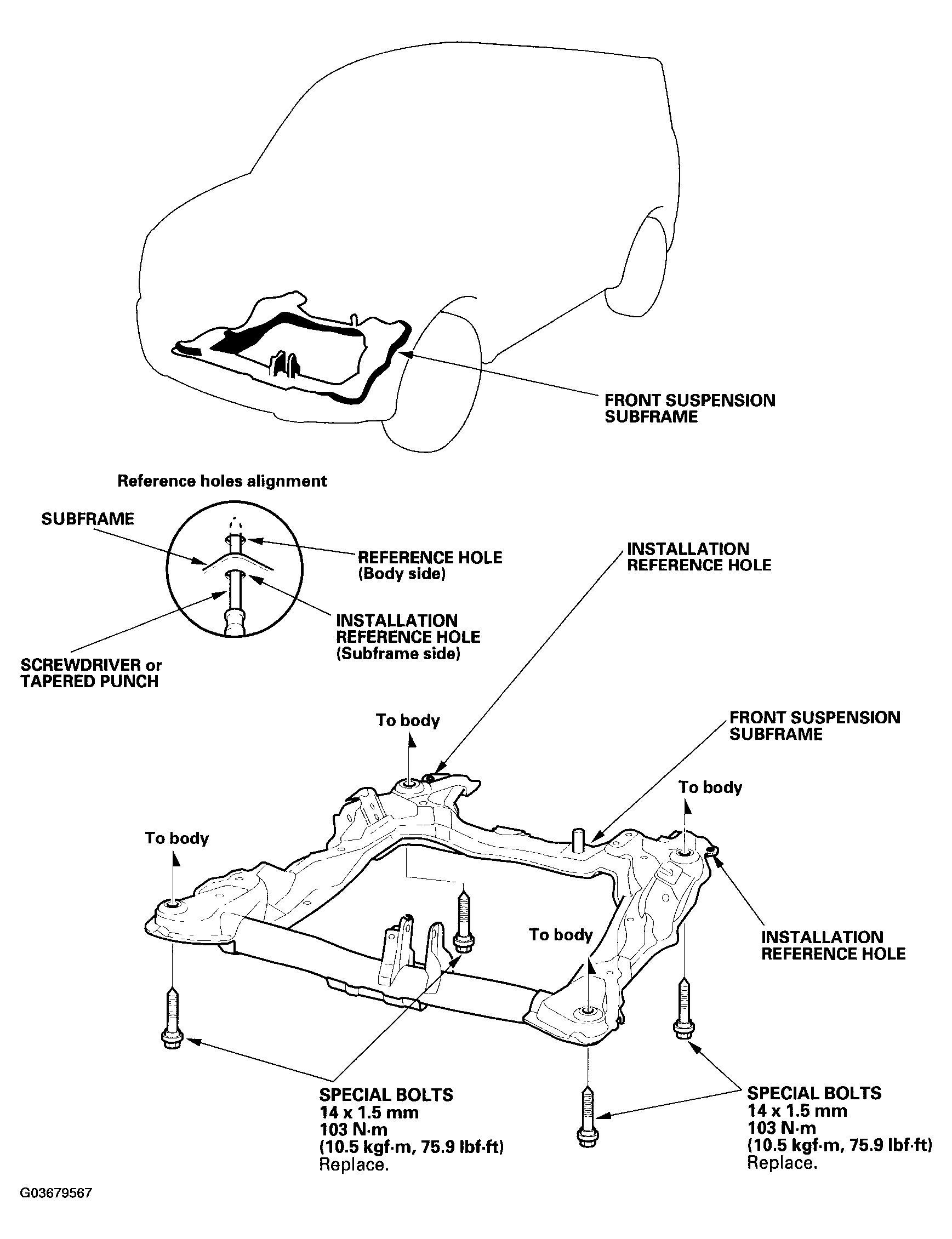

Fig 1: Replacing Front Subframe & Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
