Heater Control Panel Inputs and Outputs

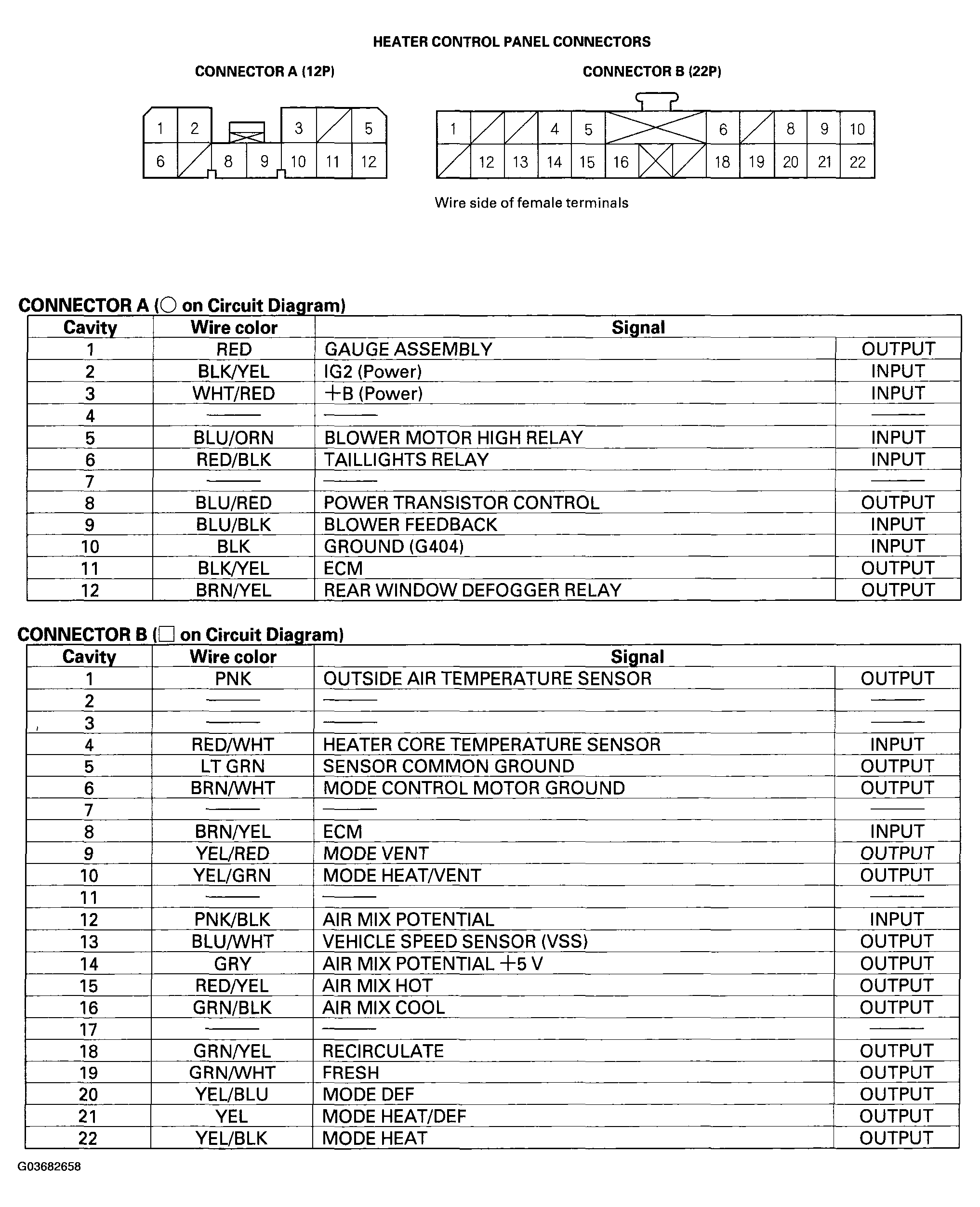

Fig 1: Identifying Heater Control Panel Inputs And Outputs Connectors
G03682658Courtesy of AMERICAN HONDA MOTOR CO., INC.
