Component Location Index: Notes

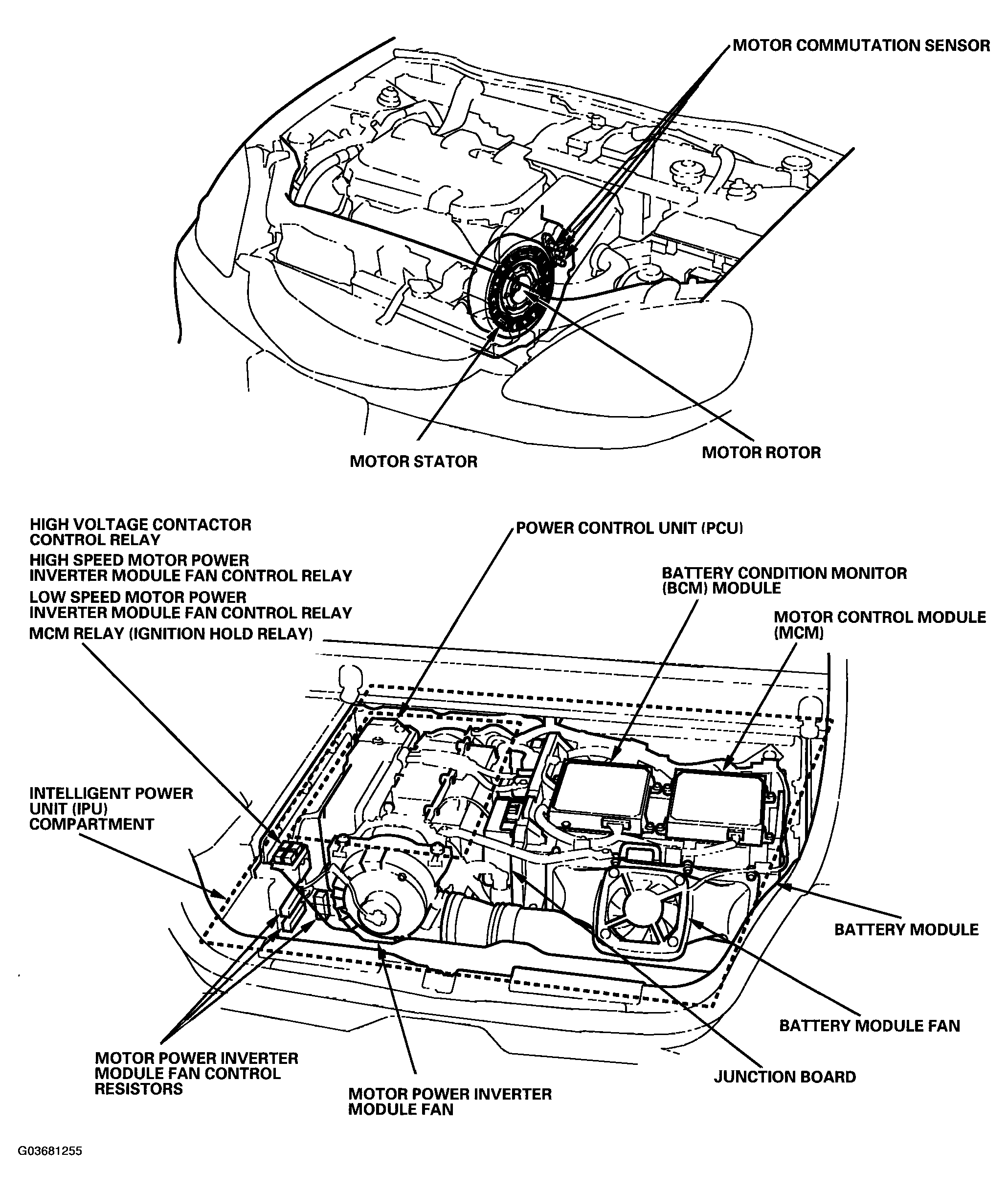

Fig 1: Identifying IMA System Components Location

G03681255

Courtesy of AMERICAN HONDA MOTOR CO., INC.
