Switch Test/Replacement

  1. Remove the power seat adjustment switch knobs and recline cover from the driver's seat, then remove the two screws and the power seat switch (see Front Seat Disassembly/Reassembly - 8-Way Power  ).
  2. Disconnect the 6P connectors from the power seat adjustment switch (A).

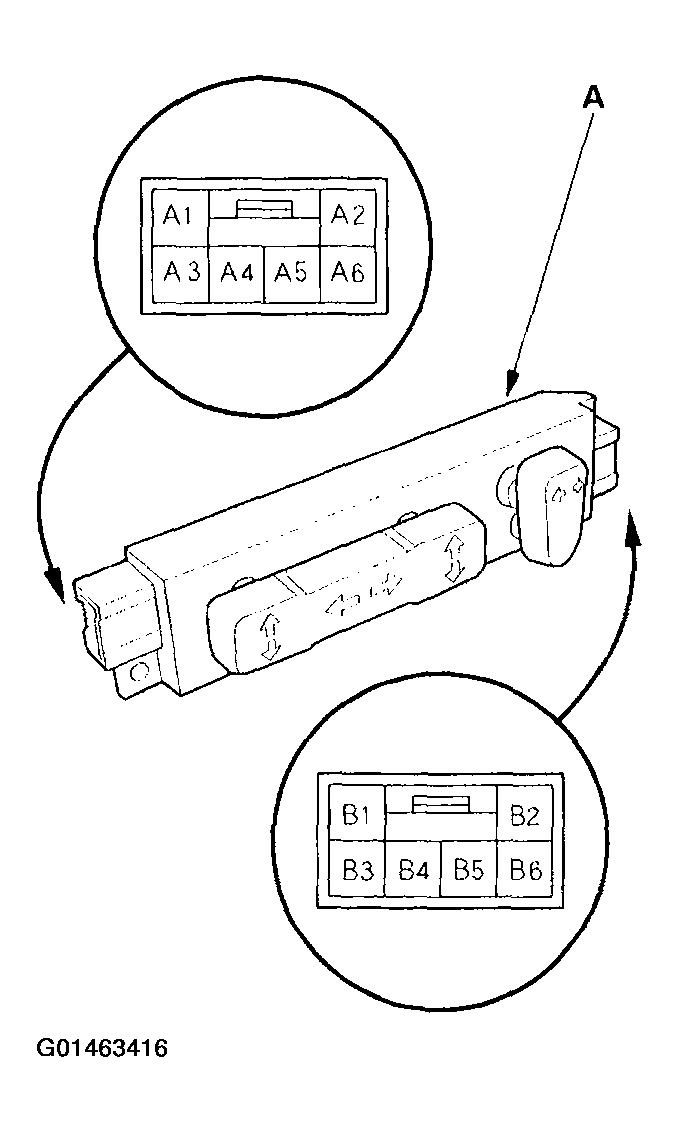

    Fig 1: Identifying The Power Seat Adjustment Switch 6P Connector Terminals
    G01463416Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Reinstall the adjustment switch knobs to the switch.
  4. Check for continuity between the terminals in each switch position according to the table.

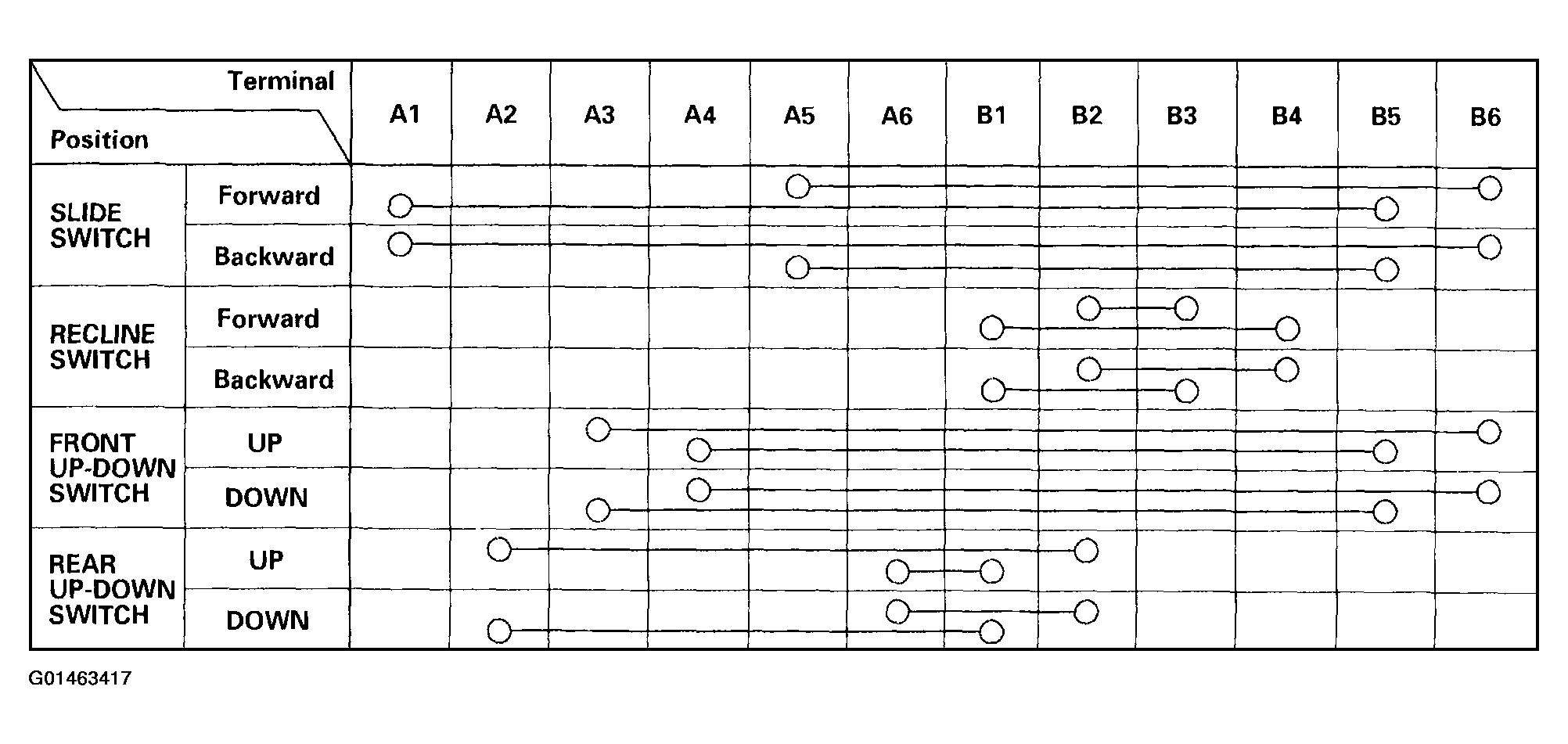

    Fig 2: Power Seat Adjustment Switch Continuity Test Table
    G01463417Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the switch.
