Wiper Motor Test/Replacement: Windshield

Remove the cowl cover (see Wiper Motor Replacement ).
Disconnect the wiper motor connector (A) from the wiper motor (B).

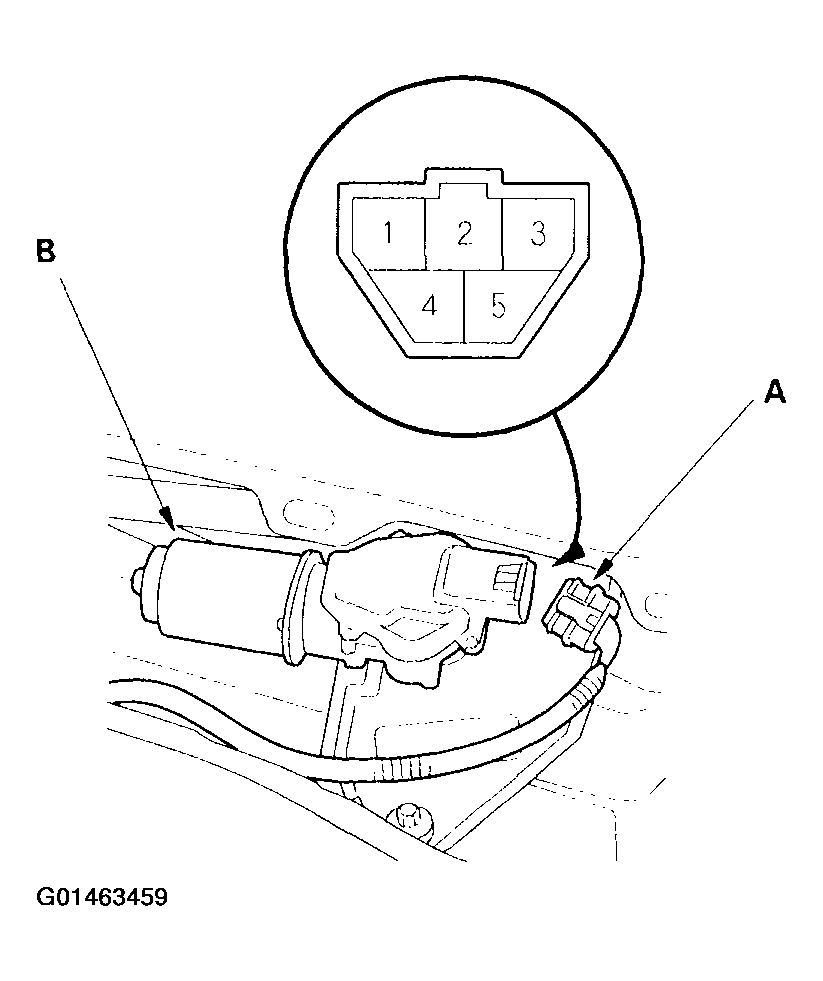

Fig 1: Identifying Windshield Wiper Motor 5P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor by connecting battery power and ground according to the table.

Fig 2: Windshield Wiper Motor Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect an analog voltmeter between the No. 5 (+) and No. 3 (-) terminals, and run the motor at low or high speed. The voltmeter should indicate 0 V and 4 V or more alternately.
If the voltmeter does not indicate as specified, replace the wiper motor.
