Door Lock Switch Test
- Remove the door panel (see TRIM REMOVAL/INSTALLATION - DOOR AREA
).

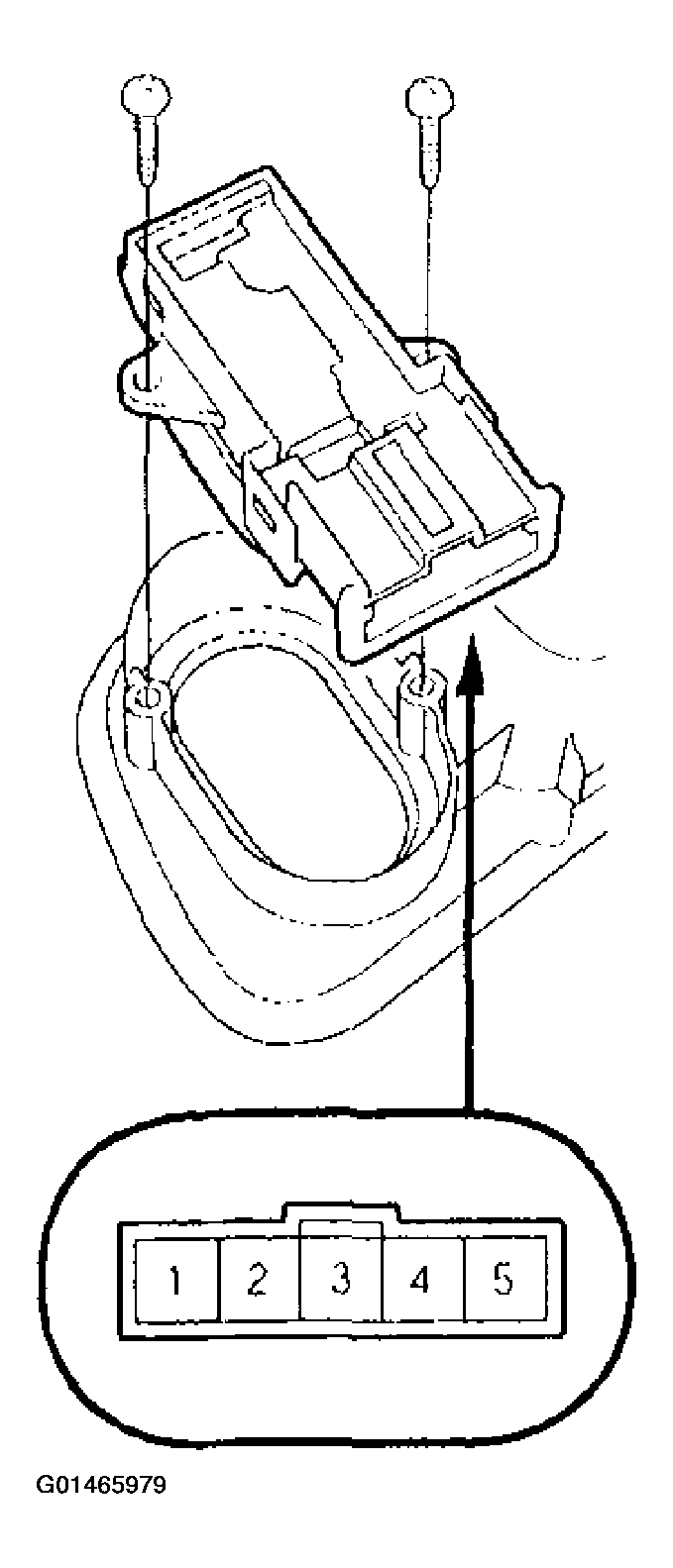

- Remove the two screws, then remove the door lock switch.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for continuity between the terminals.
- There should be continuity between the No. 1 and No. 2 terminals when the door lock switch is in the LOCK position.
- There should be no continuity between the No. 1 and No. 2 terminals when the door lock switch is in the neutral position.
- There should be continuity between the No. 2 and No. 3 terminals when the door lock switch is in the UNLOCK position.
- There should be no continuity between the No. 2 and No. 3 terminals when the door lock switch is in the neutral position.
- Except LX: There should be continuity between the No. 5 (+) and No. 4 (-) terminals under all condition.
- If the continuity is not as specified, replace the switch.
