EX and EXL

  1. Remove the driver's door panel (see TRIM REMOVAL/INSTALLATION - DOOR AREA ).
  2. Disconnect the 2P connector from the security indicator.

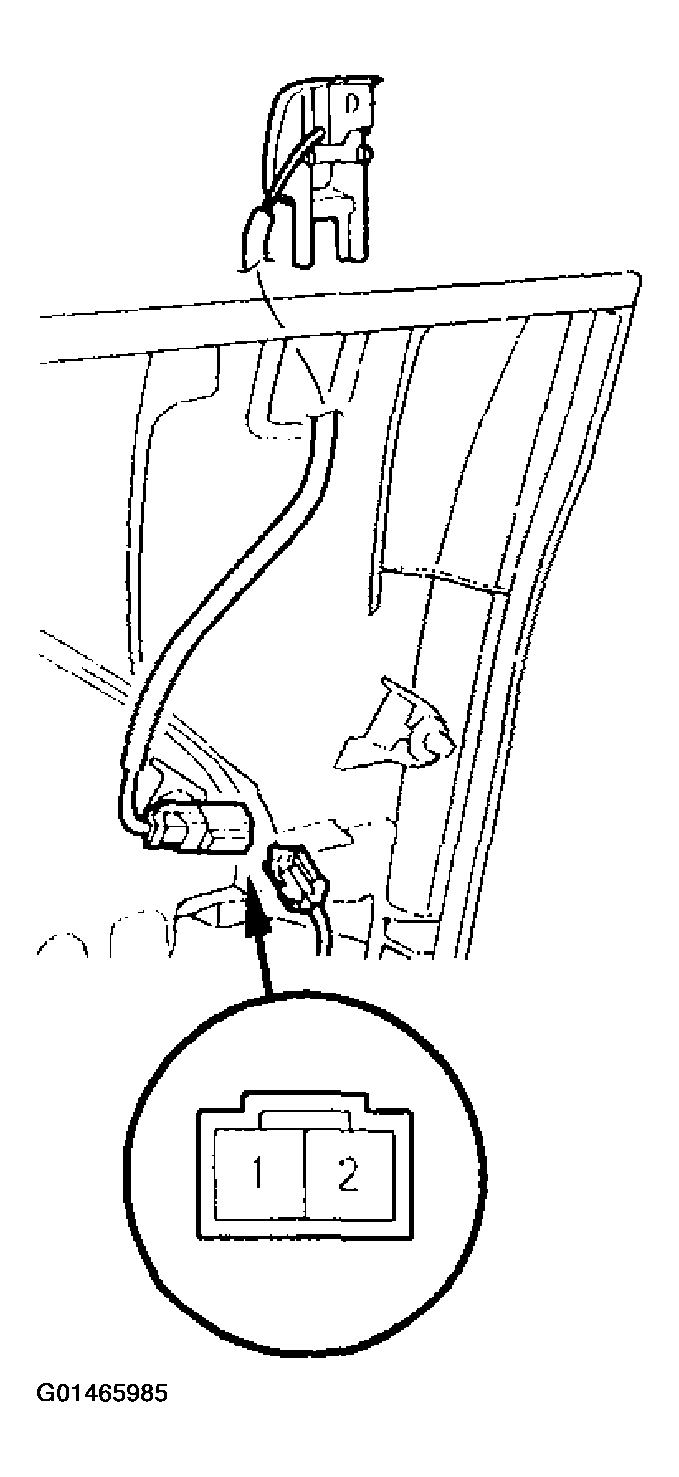

    Fig 1: Disconnecting The 2P Connector From The Security Indicator
    G01465985Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the indicator by connecting battery power to the No. 2 terminal and grounding the No. 1 terminal. The LED should come on.
  4. If the LED does not come on, replace the security indicator.
