Symptom Troubleshooting Index
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Symptom Troubleshooting Index

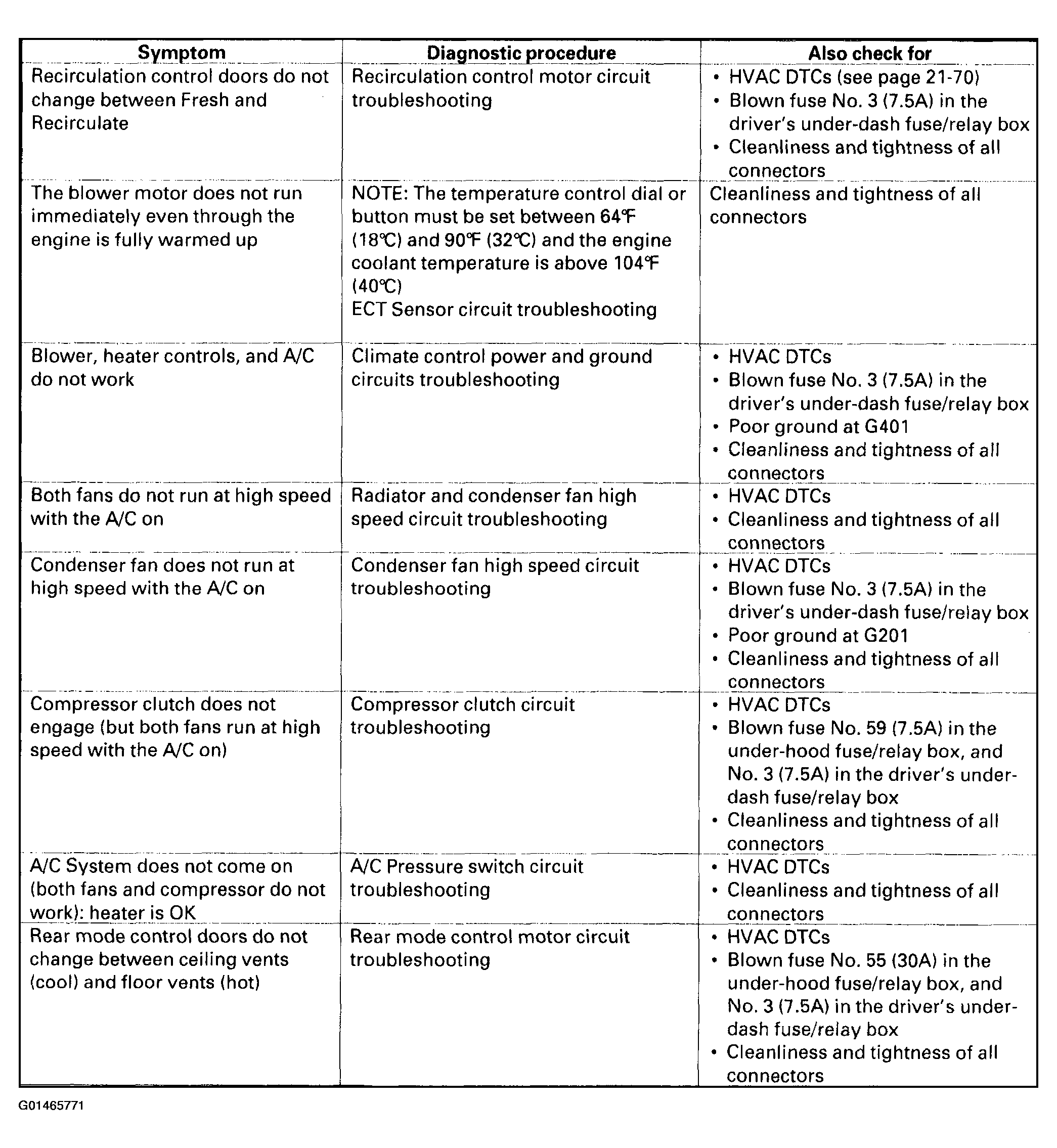

Fig 1: Symptom Troubleshooting Index
Courtesy of AMERICAN HONDA MOTOR CO., INC.
