Fluid Leakage Inspection

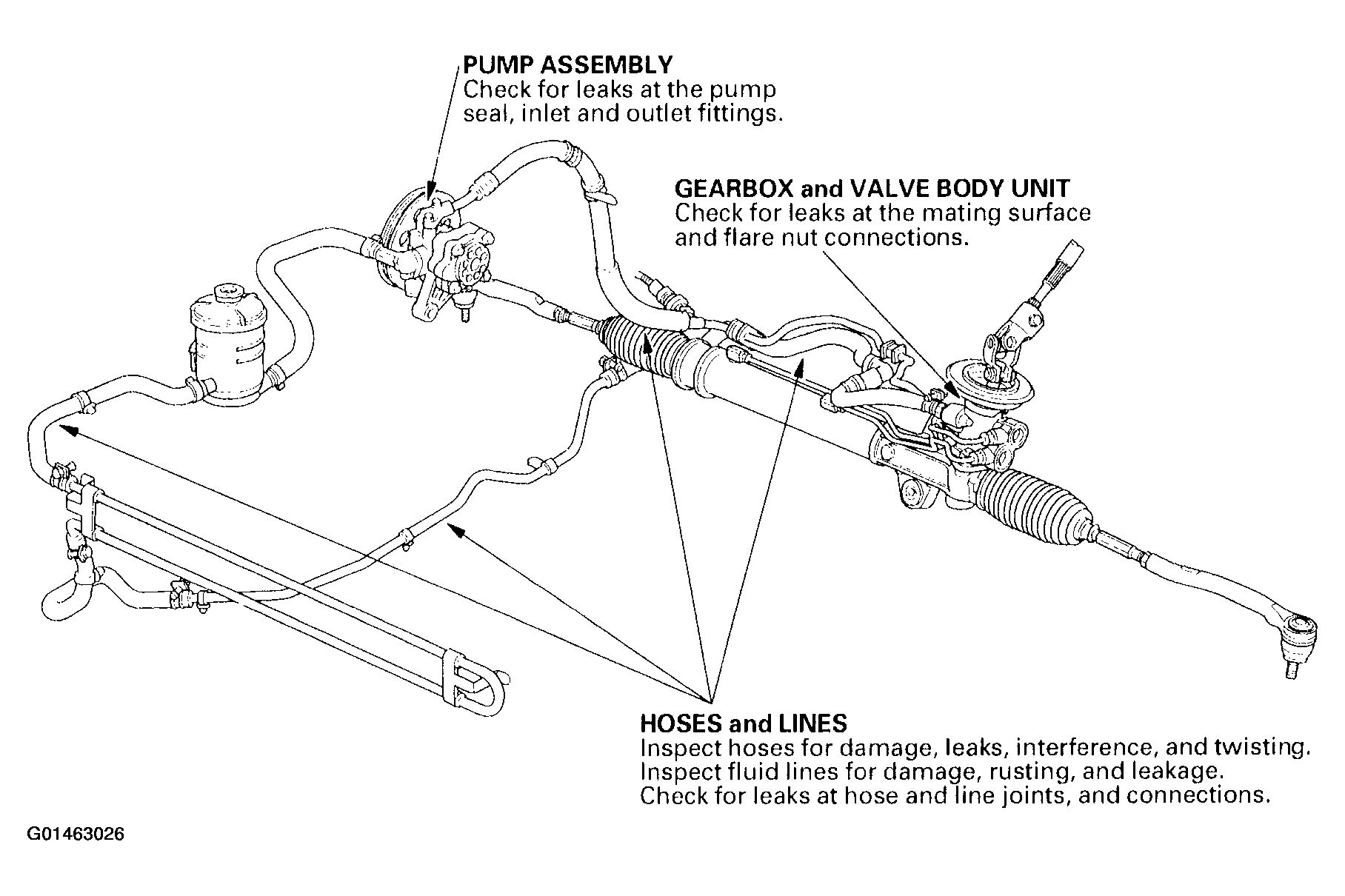

Fig 1: Checking For Leaks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
