Power Assist Check
NOTE:
This test should be done with original equipment tires and wheels at the correct tire pressure.
- Check the power steering fluid level (see Fluid Replacement ) and pump belt tension (see PUMP BELT INSPECTION & ADJUSTMENT ).
- Start the engine, let it idle, and turn the steering wheel from lock-to-lock several times to warm up the fluid.

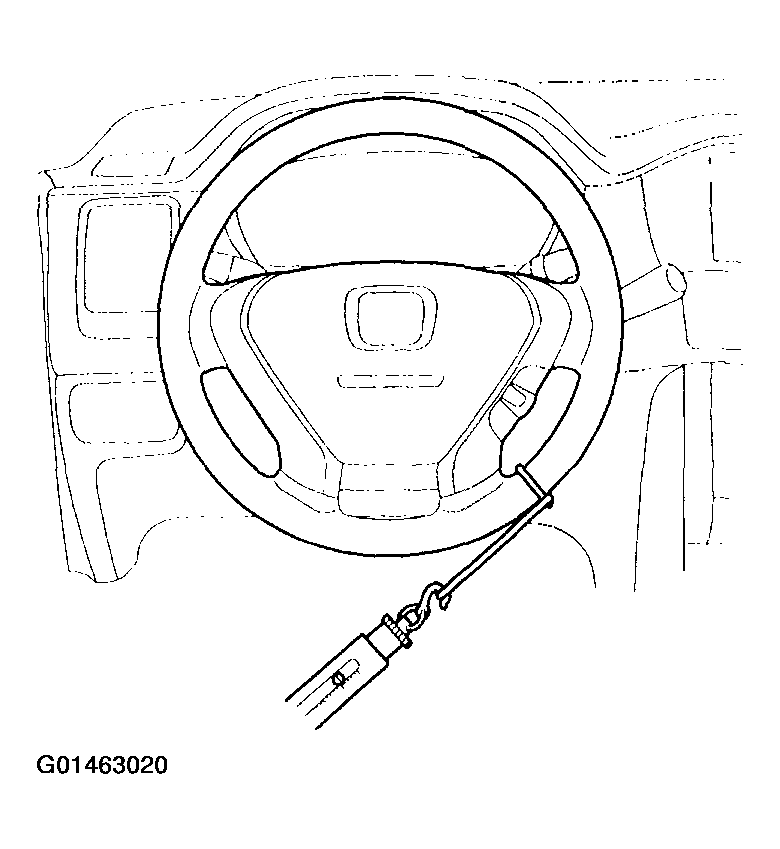

- Attach a commercially available spring scale to the steering wheel. With the engine idling and the vehicle on a clean, dry floor, pull the scale as shown and read it as soon as the tires begin to turn.
- If the scale reads no more than 29 N (3.0 kgf, 6.6 lbf) the gearbox and pump are OK.
- If the scale reads more than 29 N (3.0 kgf, 6.6 lbf) check the gearbox and pump.
