Front Door Weatherstrip Replacement

NOTE:
  • Take care not to scratch the door.
  • Use a clip remover to remove the clips.
  1. At the A-pillar, remove the door checker mounting bolt (A).

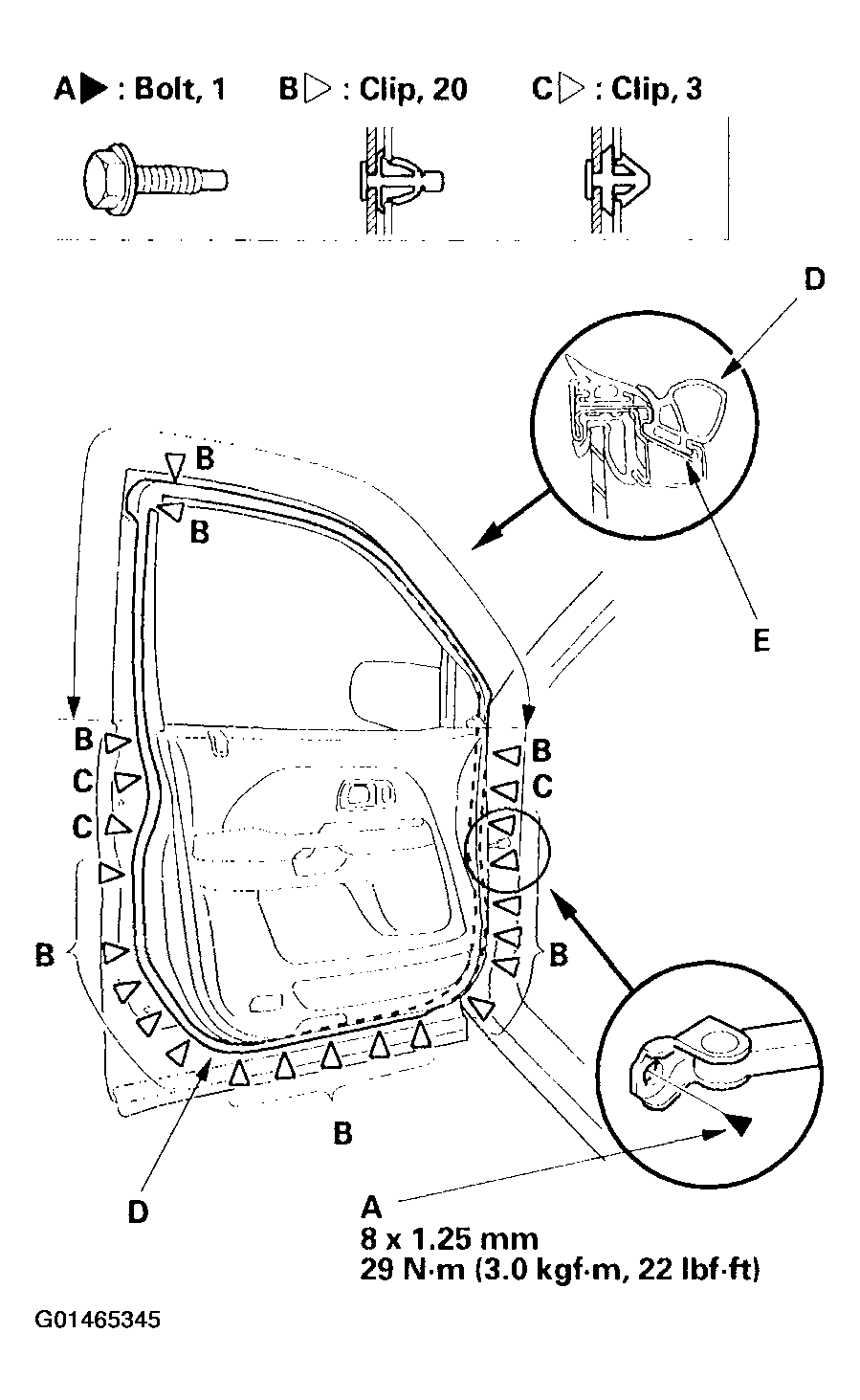

    Fig 1: Removing The Door Checker Mounting Bolt
    G01465345Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Detach the clips (B, C), then remove the door weatherstrip (D).
  3. Install the weatherstrip in the reverse order of removal, and note these items:
    • Replace any damaged clips.
    • Make sure the weatherstrip is installed in the holder (E) securely.
    • Apply liquid thread lock to door checker mounting bolt before installation.
    • Check for water leaks (see step 7 on FRONT & REAR DOOR GLASS ADJUSTMENT  ).
