Rear Controller and Screen Connector Replacement

Rear Controller and Screen Connector Replacement

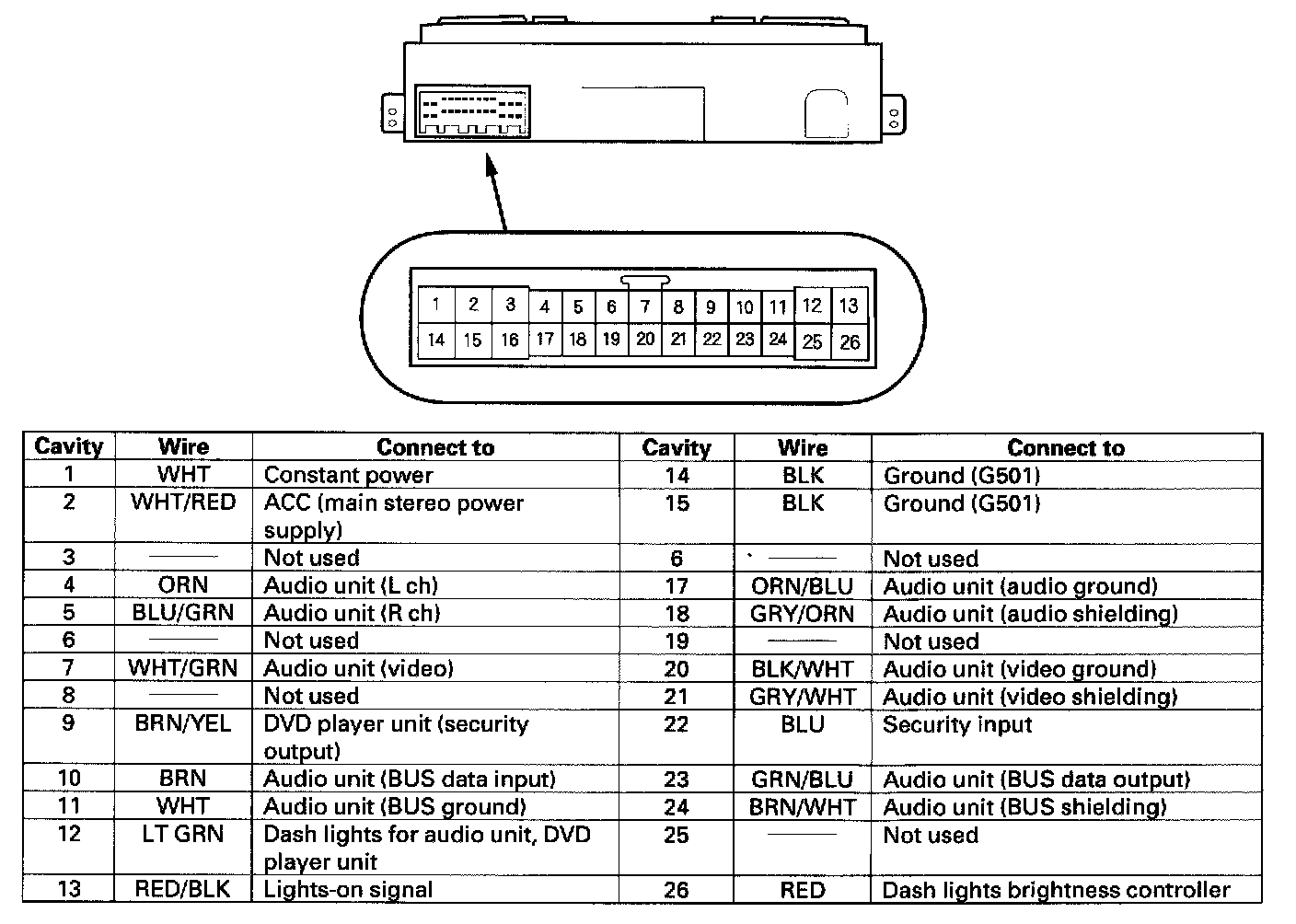

When replacing a rear controller and screen connector, match the wires to the cavities listed in the table.
