Body Control Systems

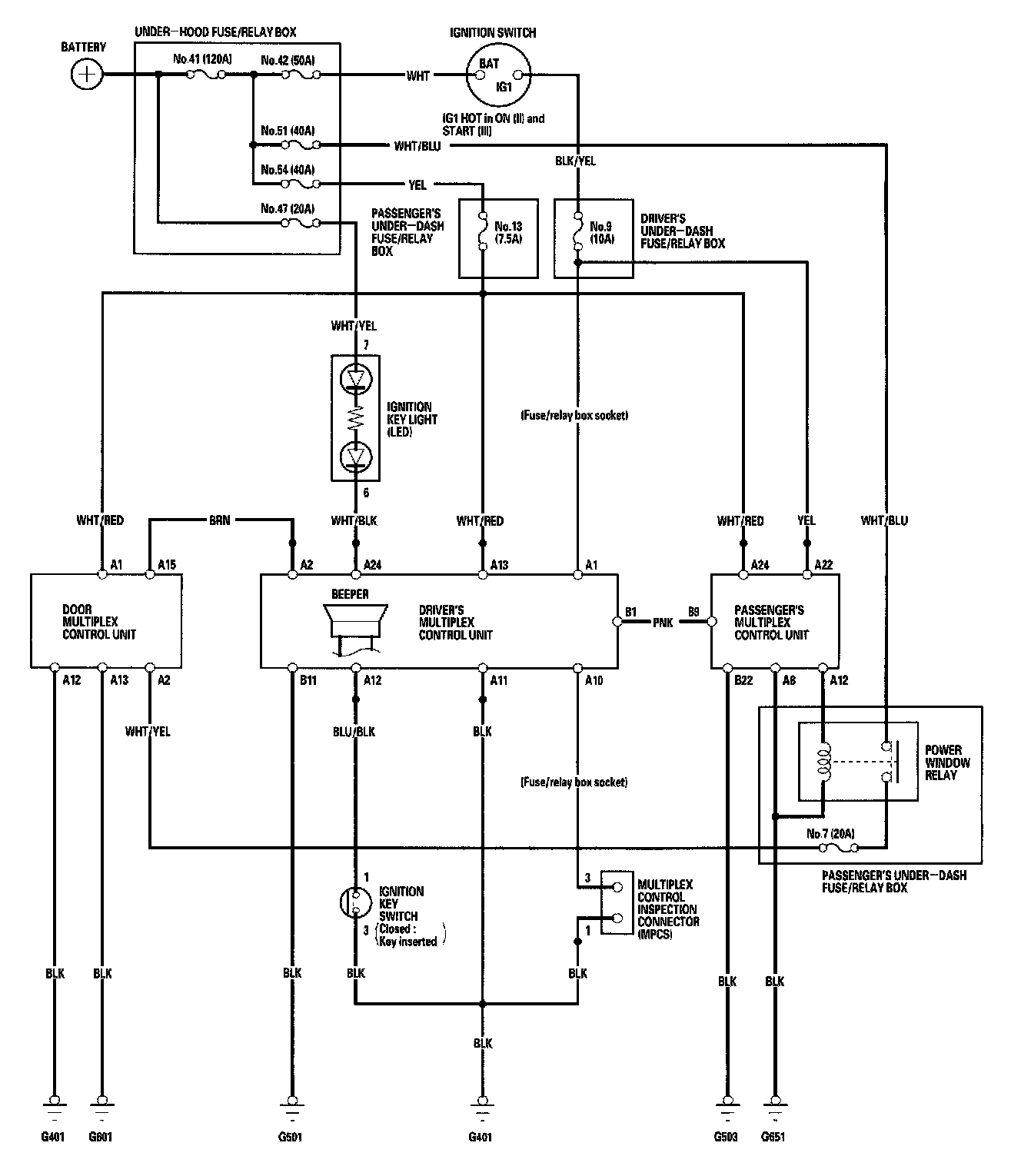

Multiplex Control System - Circuit Diagram (Power, Ground, Communication Lines):
