Rear Console Box Replacement

NOTE: Take care not to scratch the front seat and related parts.

Remove these items, then remove the rear console box as shown:
- Roll bar upper trim, both sides (see TRIM REMOVAL/INSTALLATION - SEAT SIDE AREA )
- Spare tire
Remove the rear console box as shown below.
Install the rear console box in the reverse order of removal.

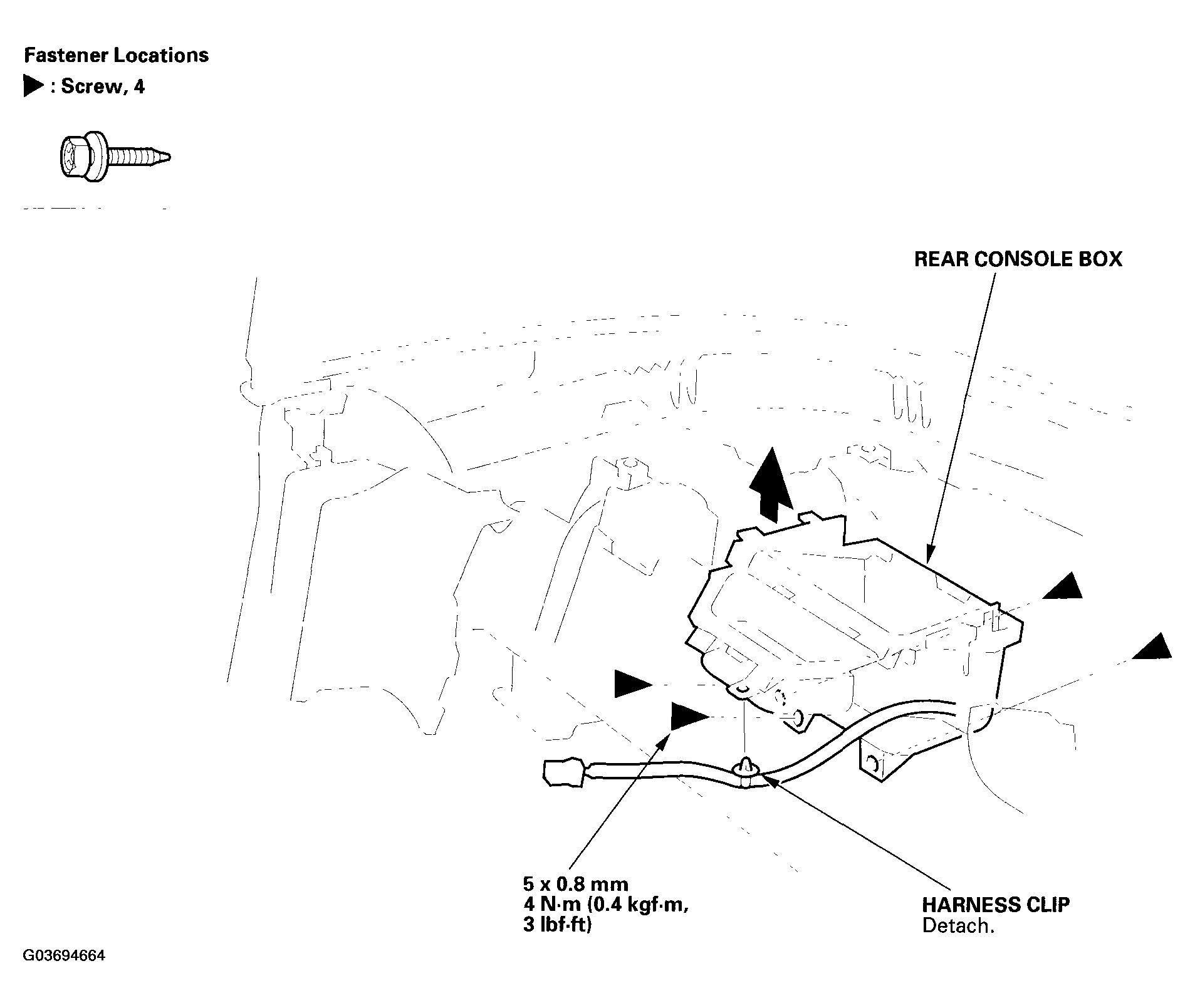

Fig 1: Rear Console Box With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
