Throttle Actuator Control Module Sub-harness

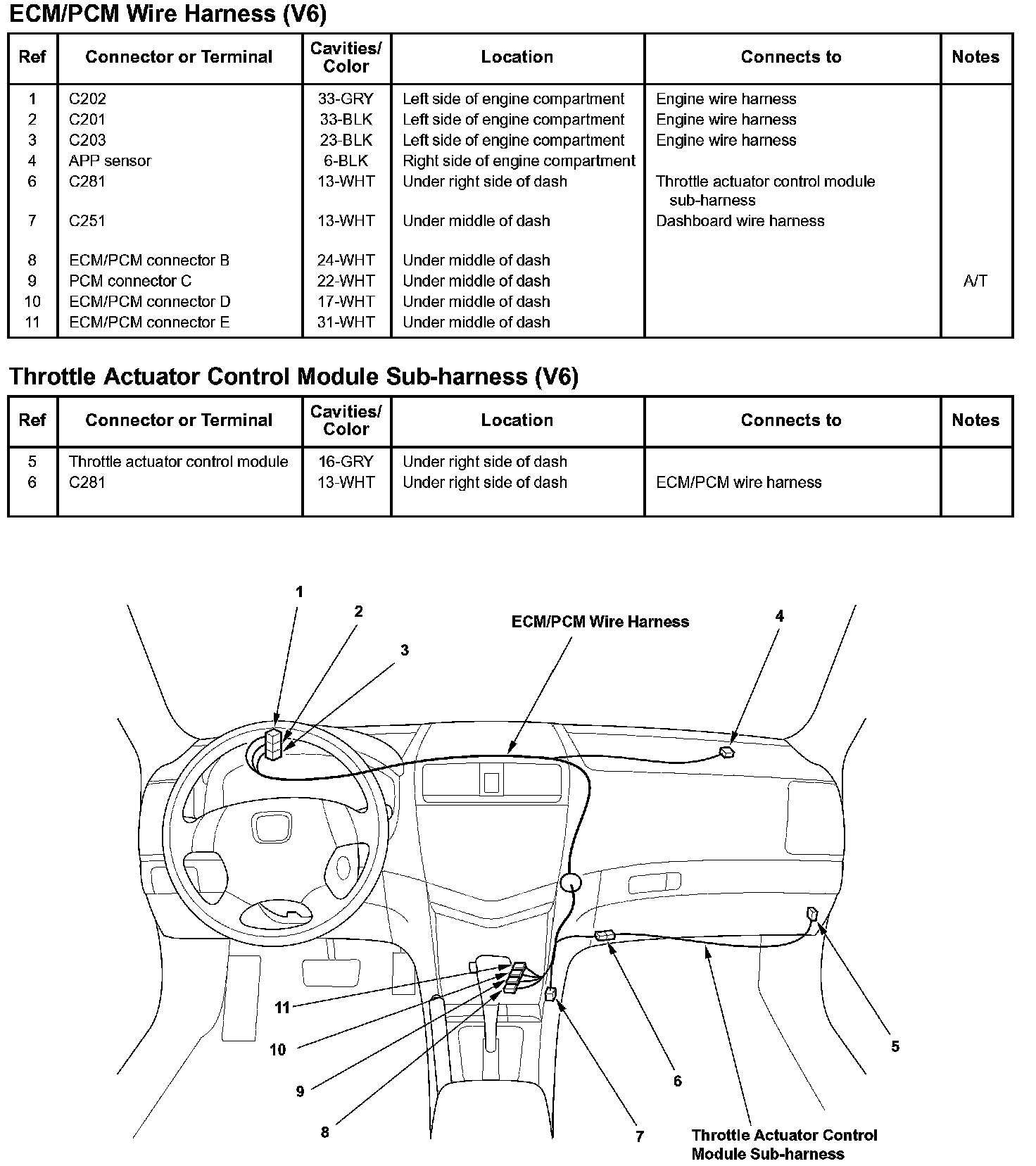

ECM/PCM Wire Harness/ Throttle Actuator Control Module Sub-harness:

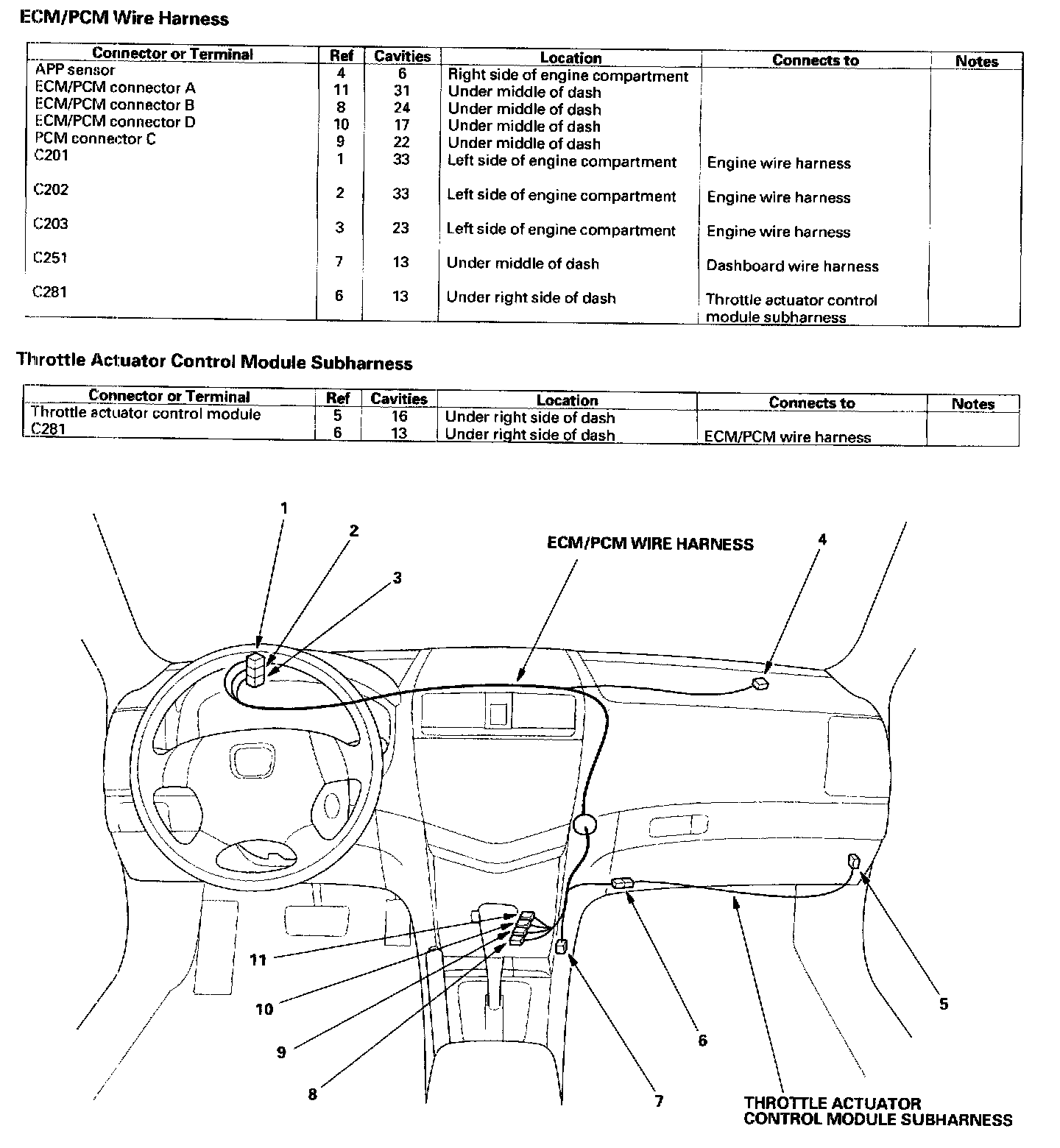

ECM/PCM Wire Harness/Throttle Actuator Control Module Subharness:
