Pinout Values and Diagnostic Parameters

Electronic Control System

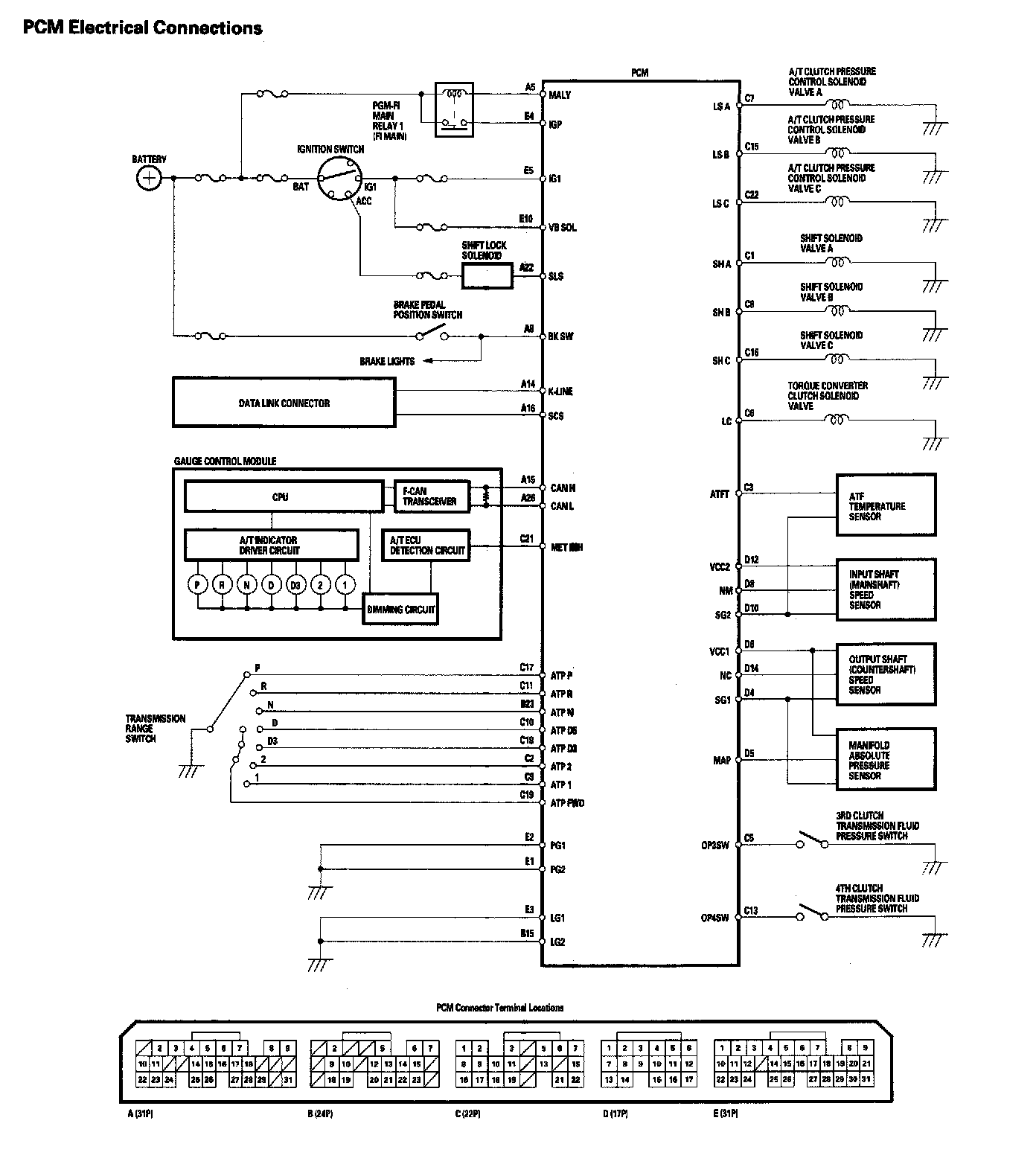

PCM Electrical Connections:

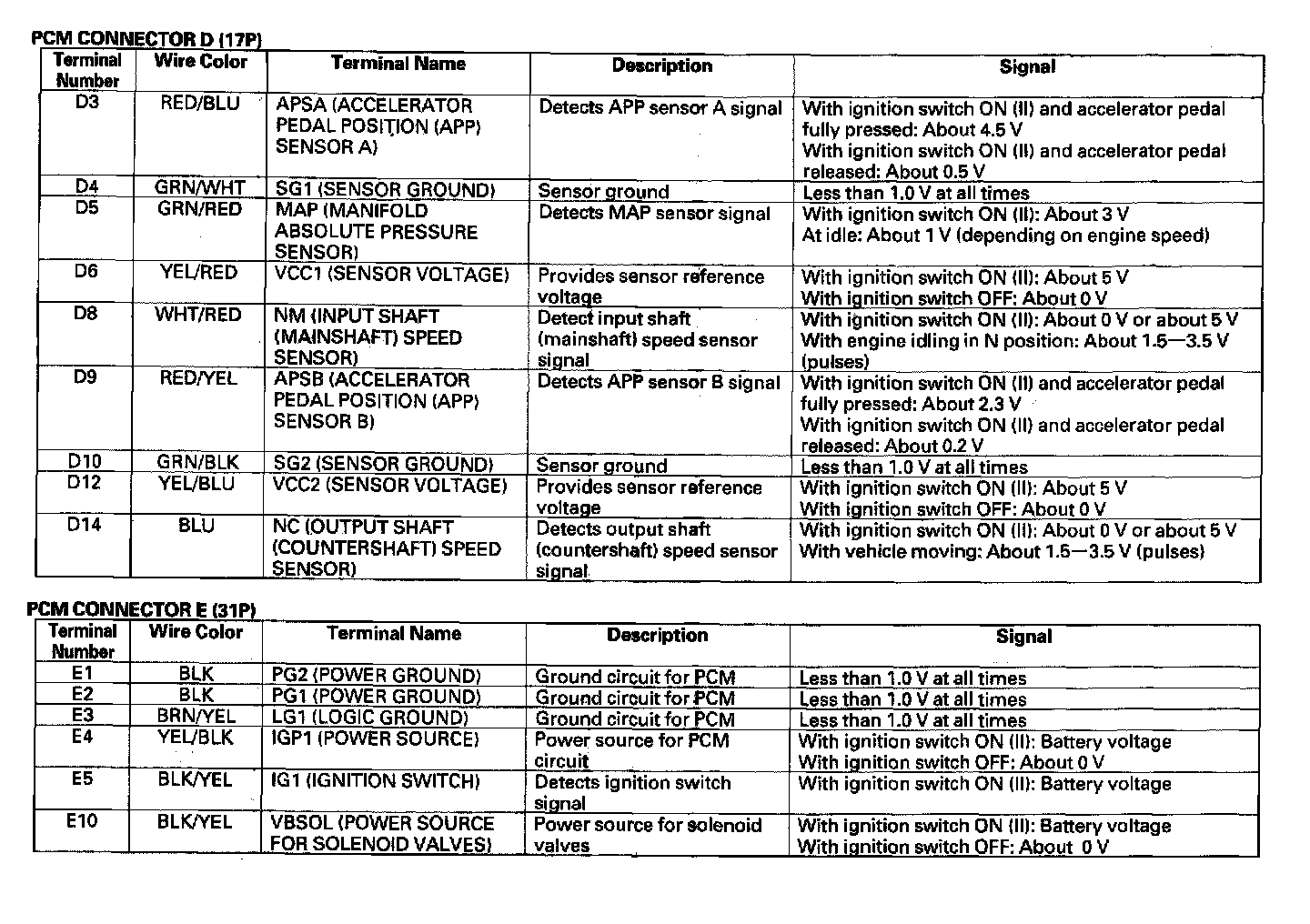

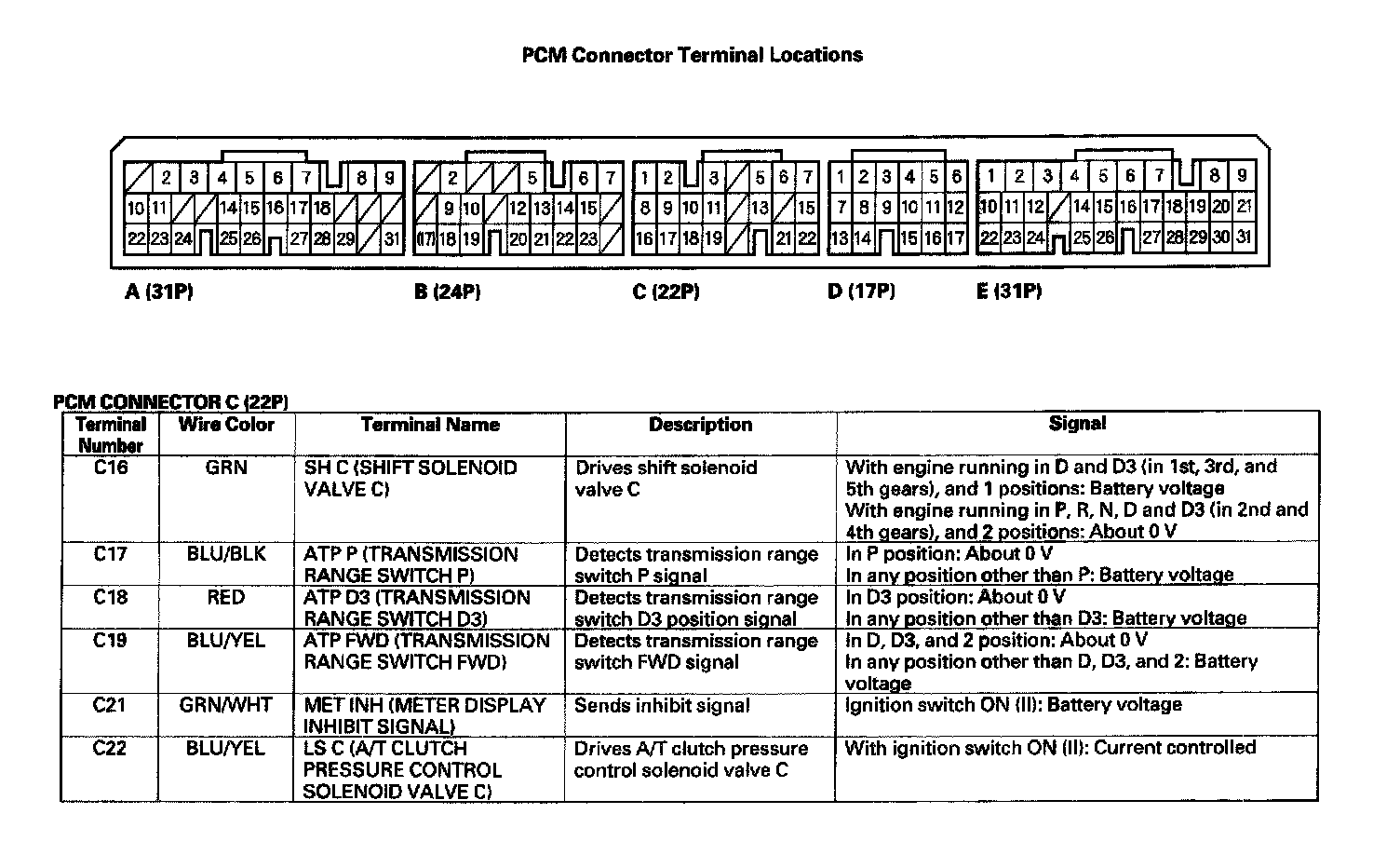

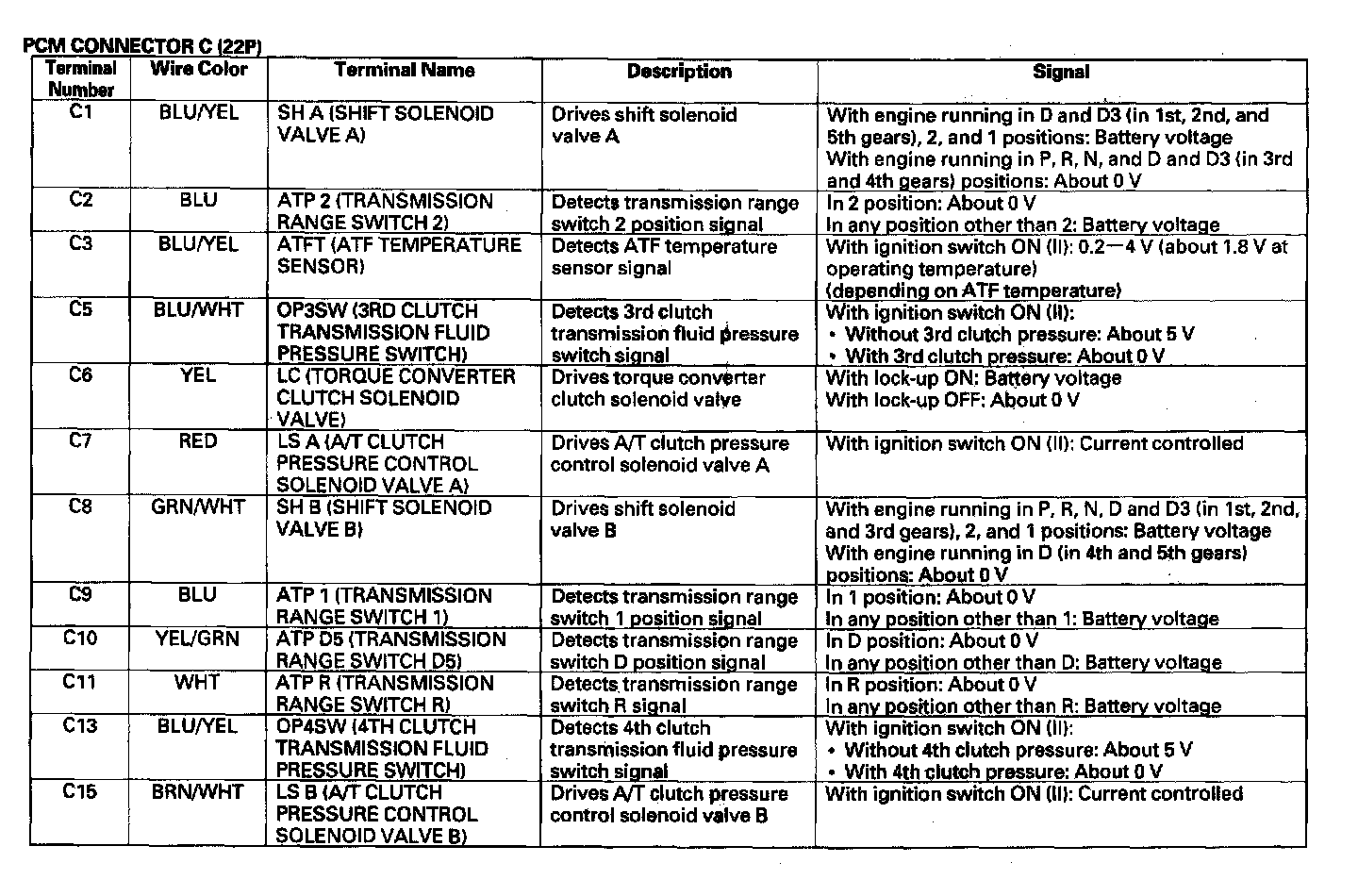

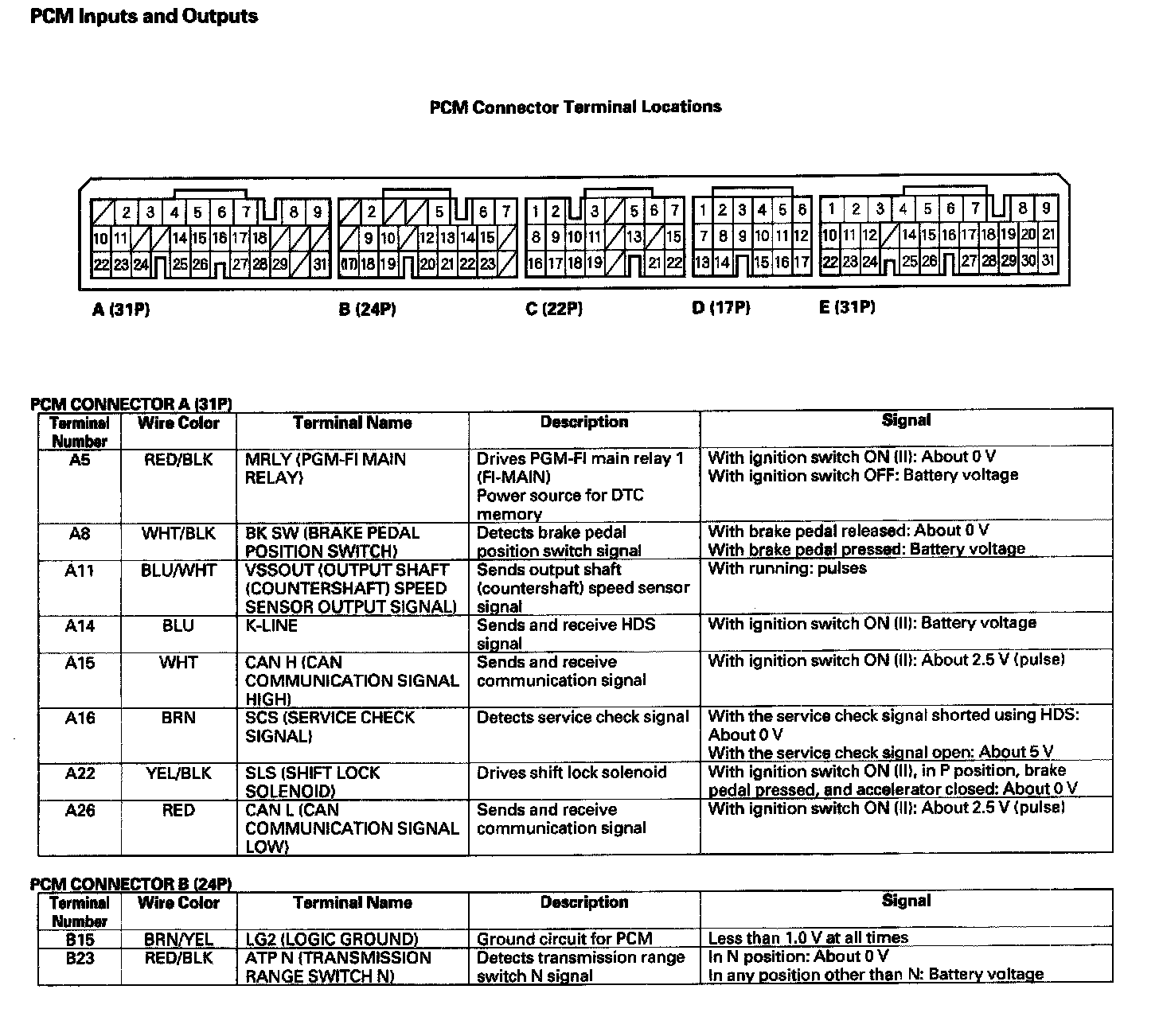

PCM Inputs And Outputs:




PCM Inputs And Outputs:




PCM Inputs And Outputs:




PCM Inputs And Outputs:
