ECM/PCM Circuit Diagrams

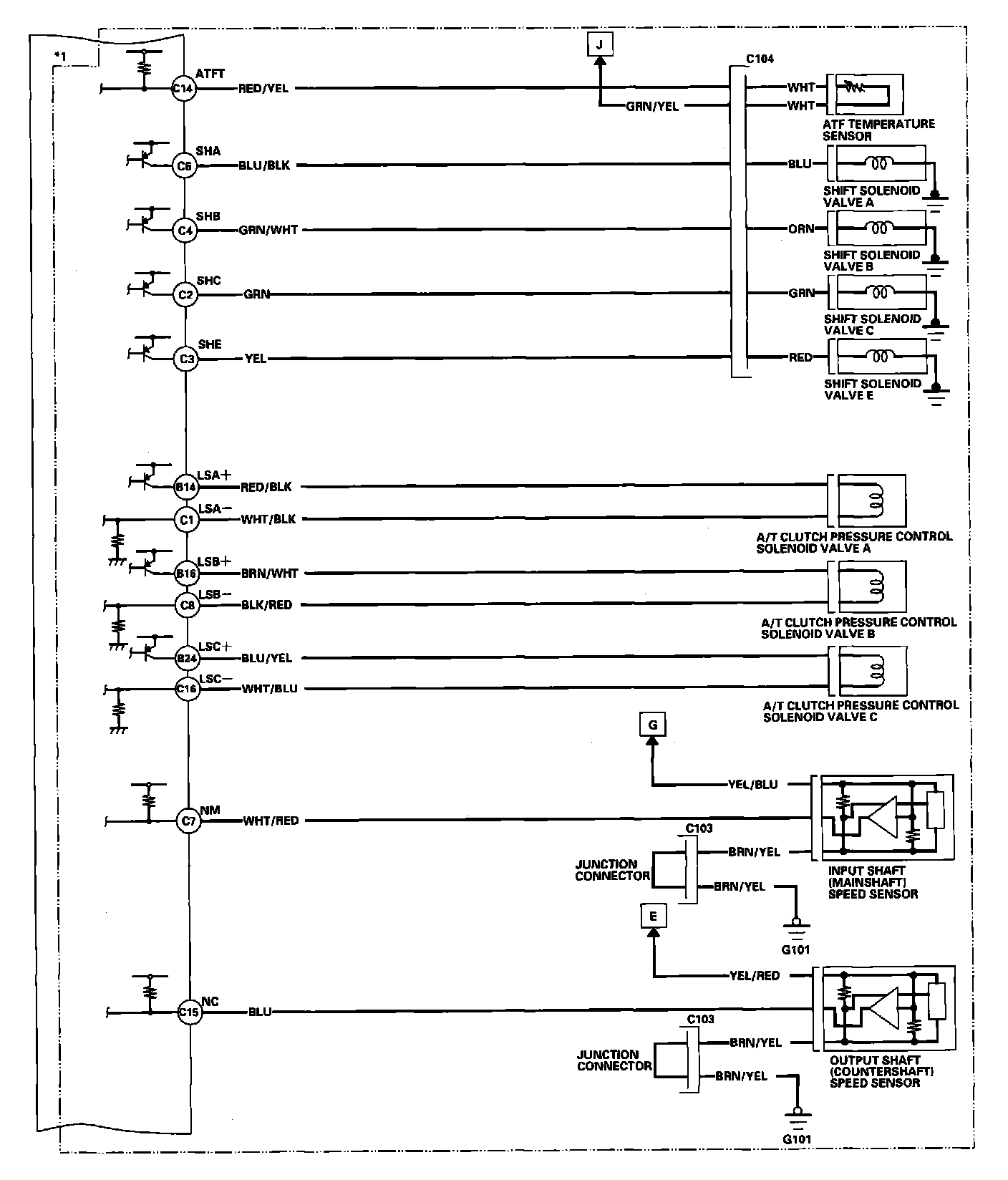

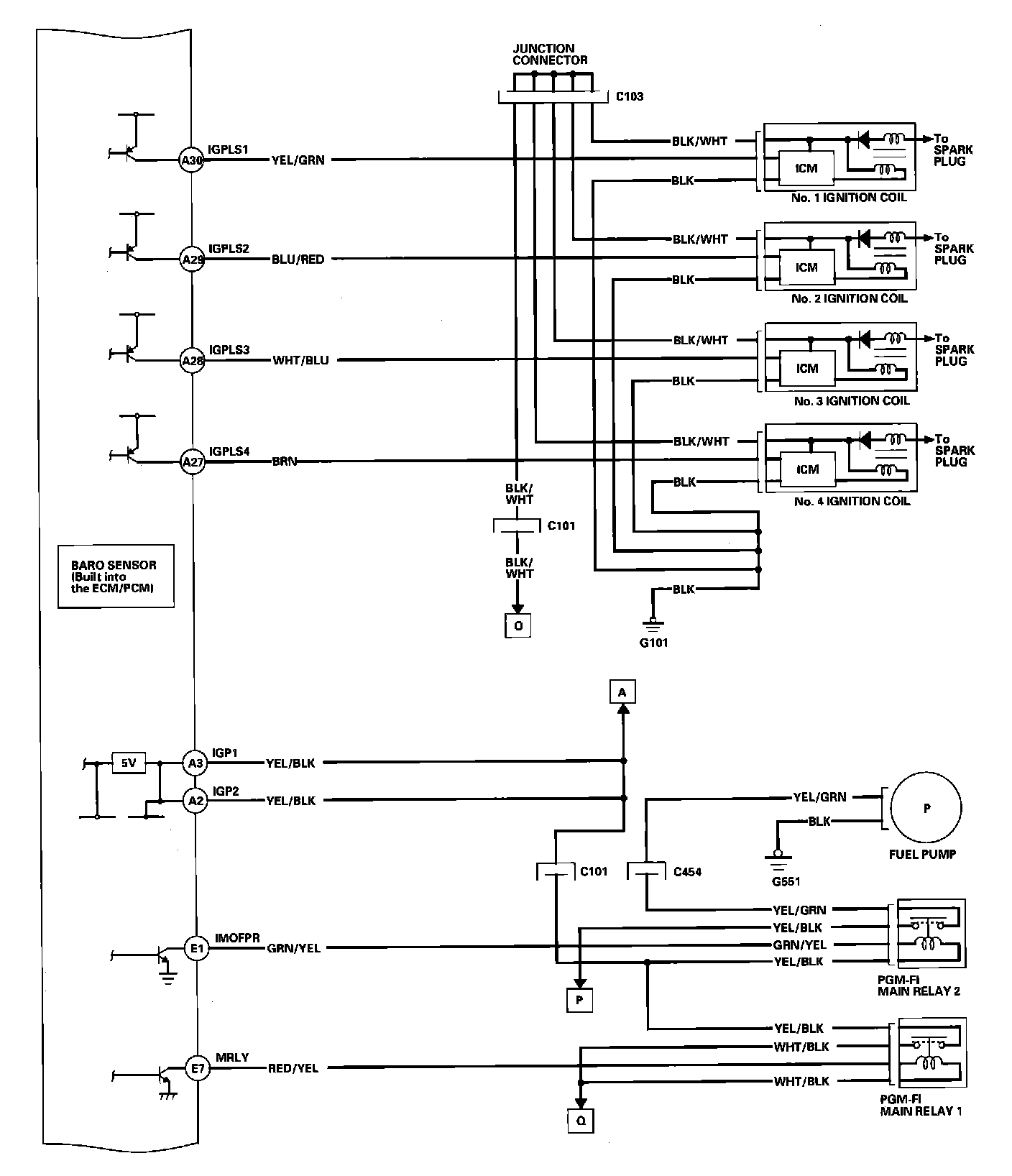

ECM/PCM Circuit Diagram 11-43:

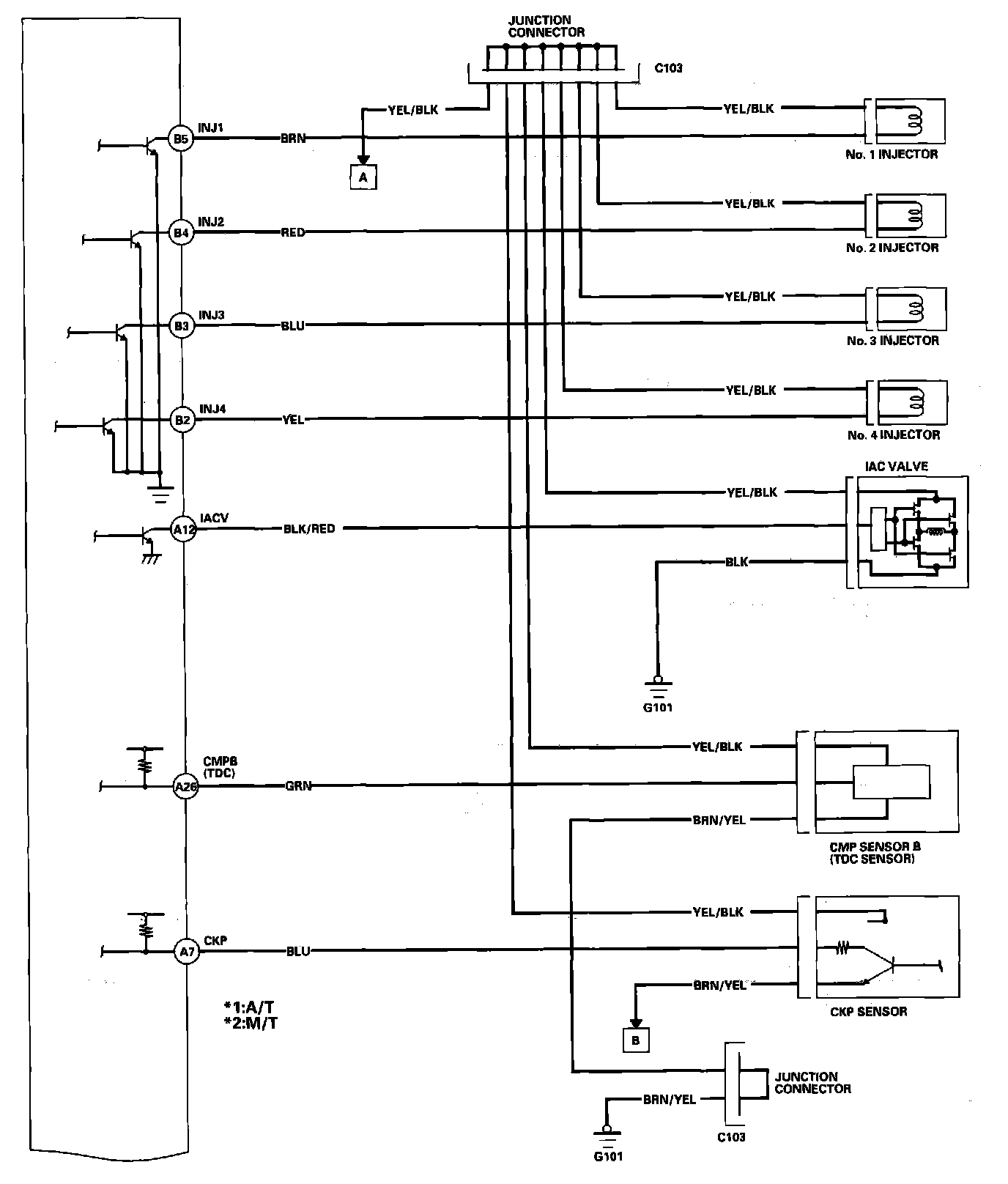

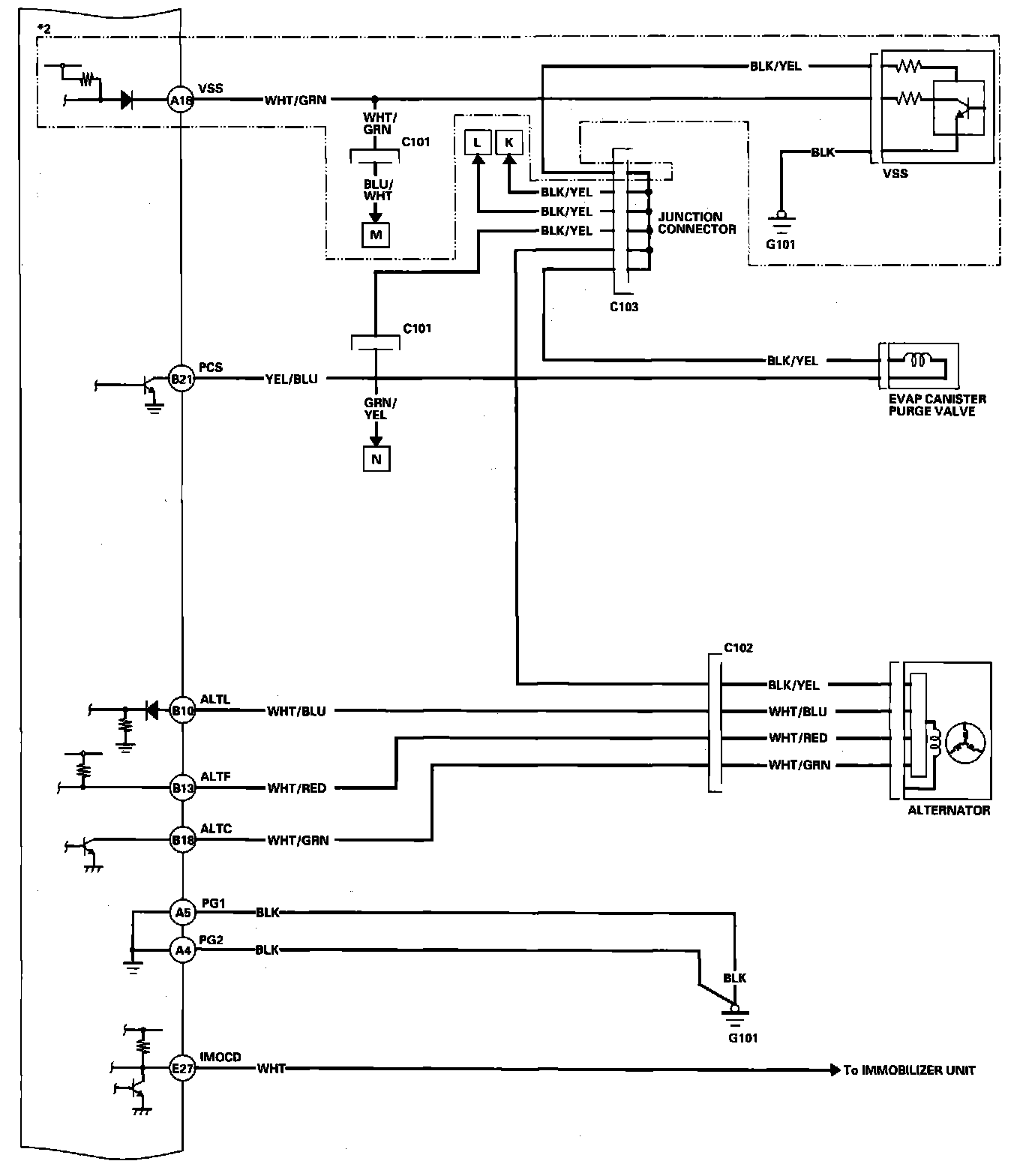

ECM/PCM Circuit Diagram 11-44:

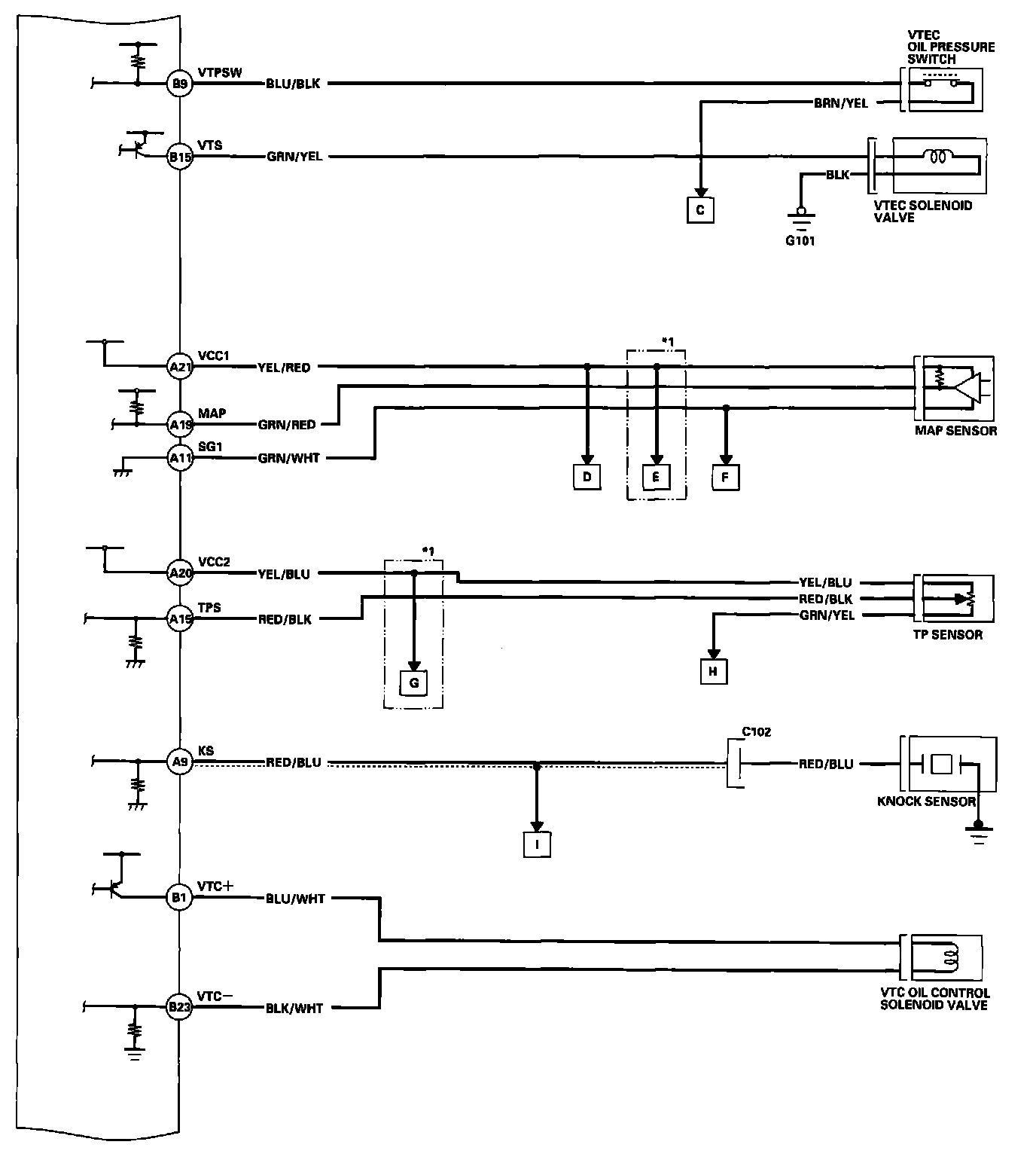

ECM/PCM Circuit Diagram 11-45:

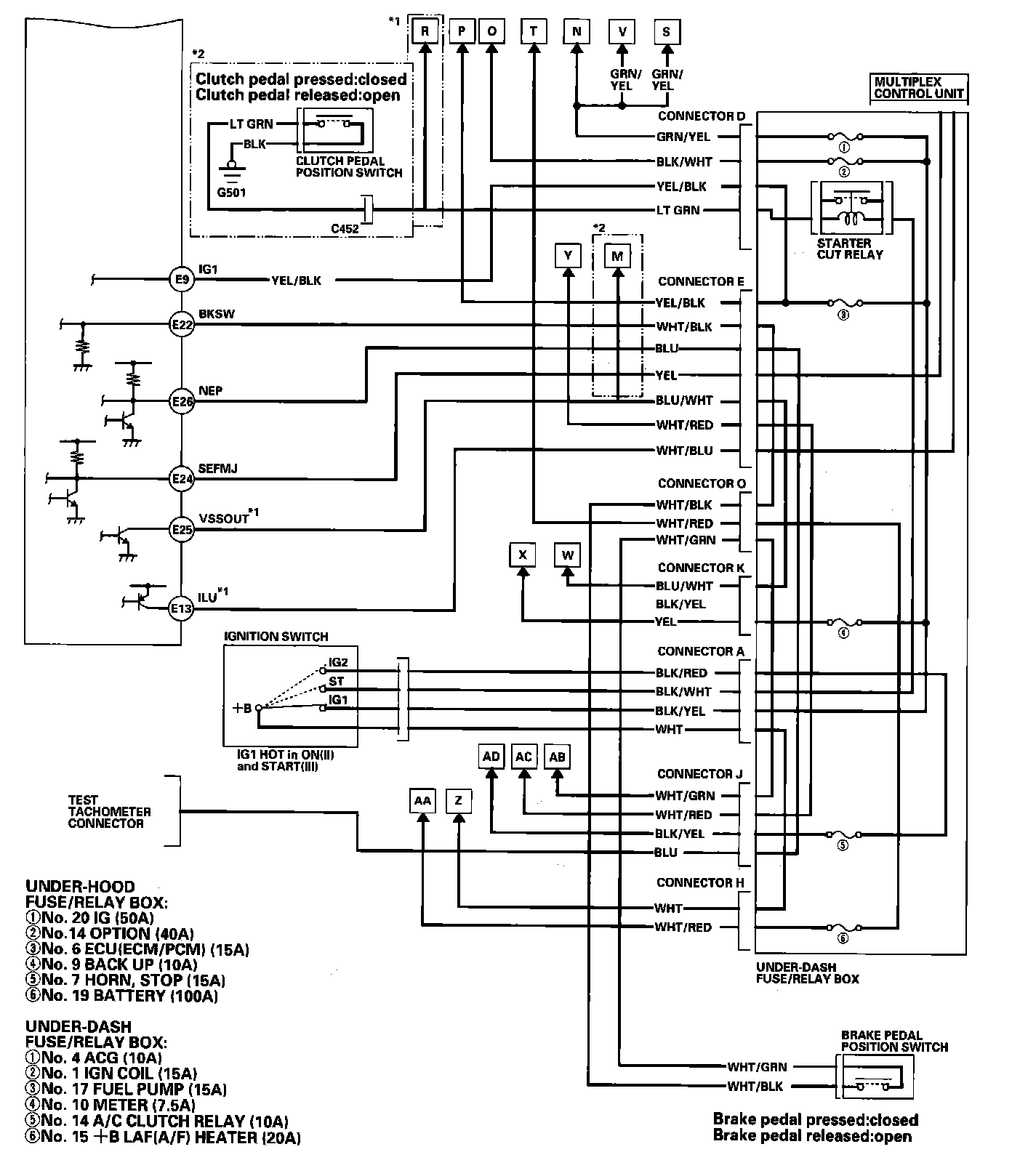

ECM/PCM Circuit Diagram 11-46:

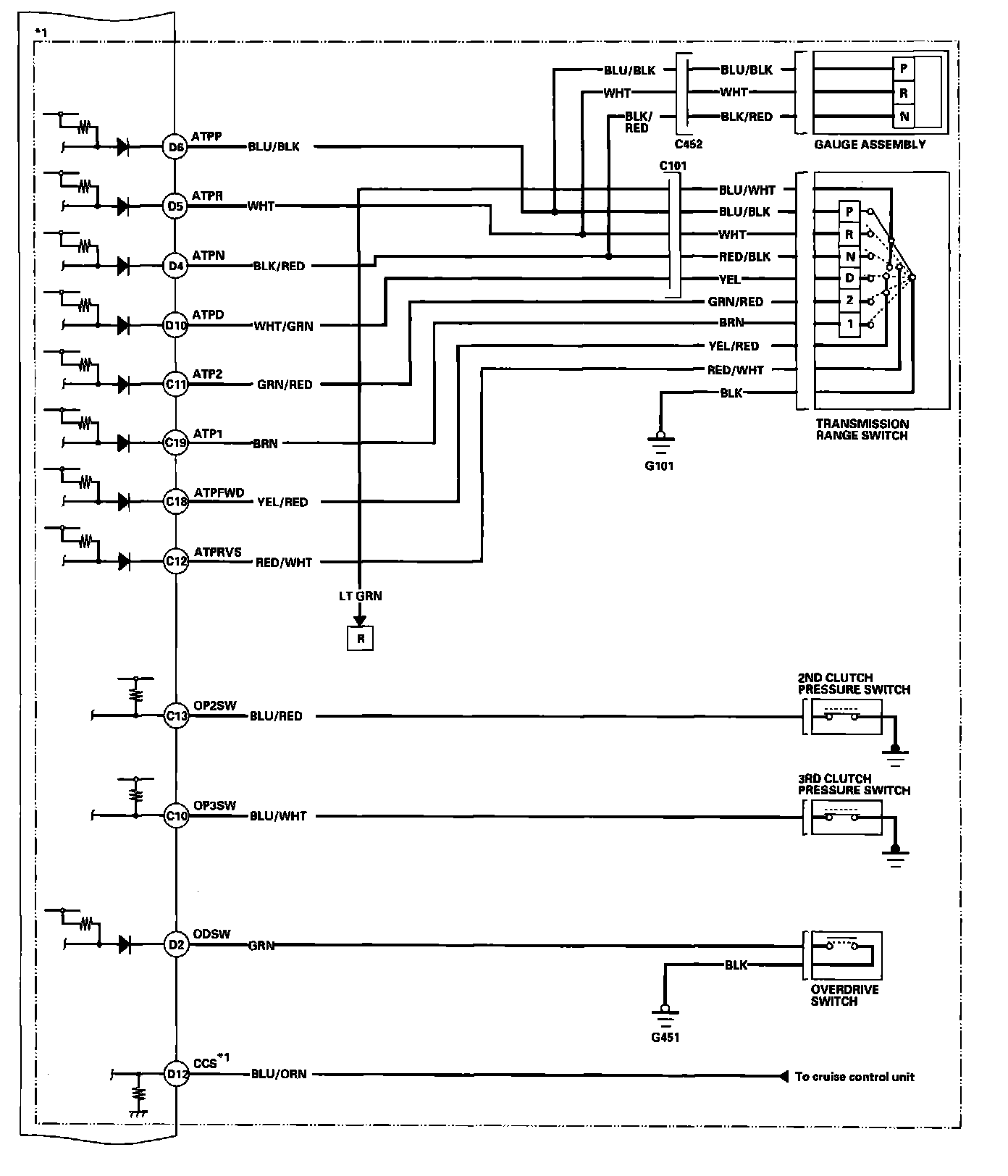

ECM/PCM Circuit Diagram 11-47:

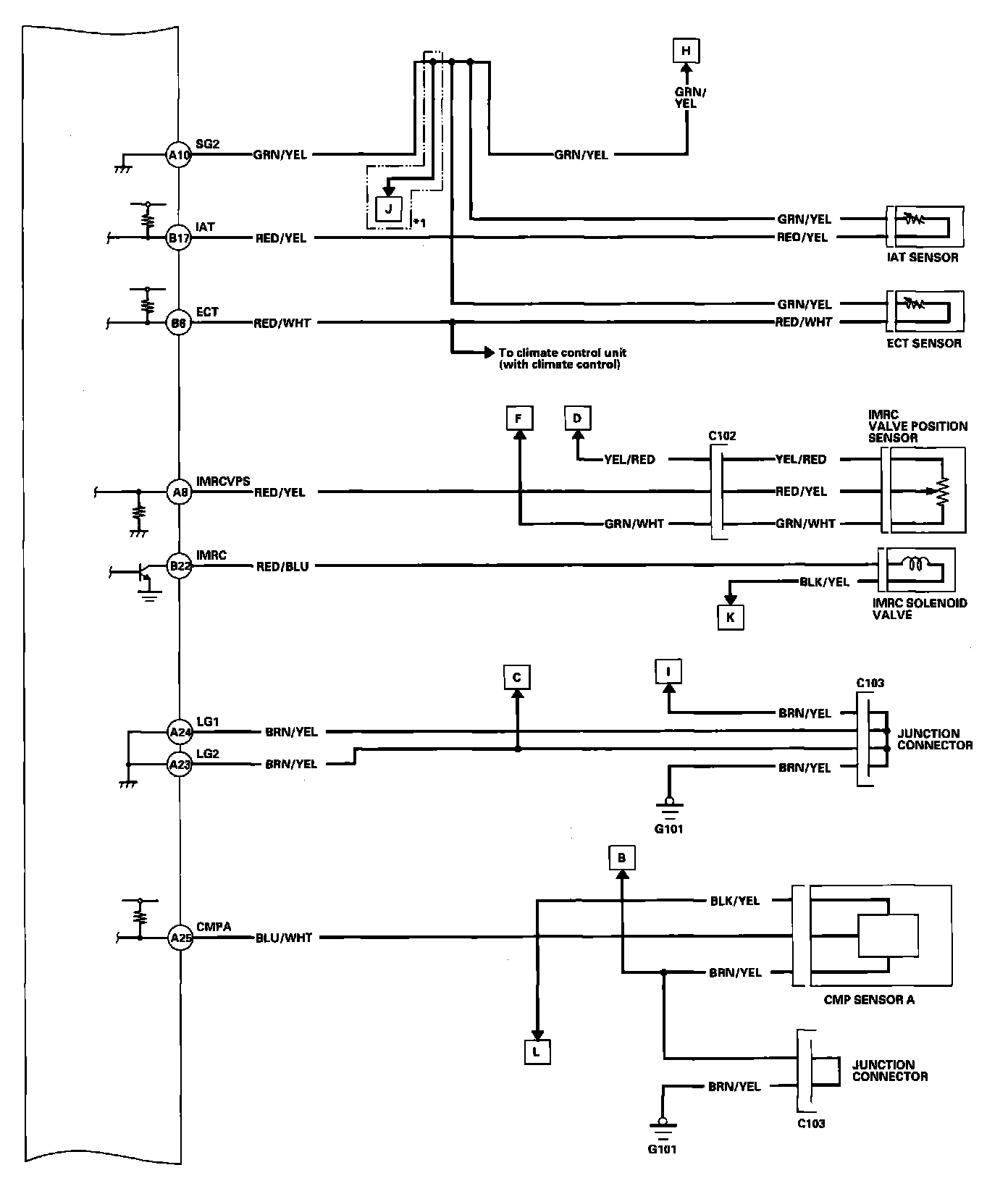

ECM/PCM Circuit Diagram 11-48:

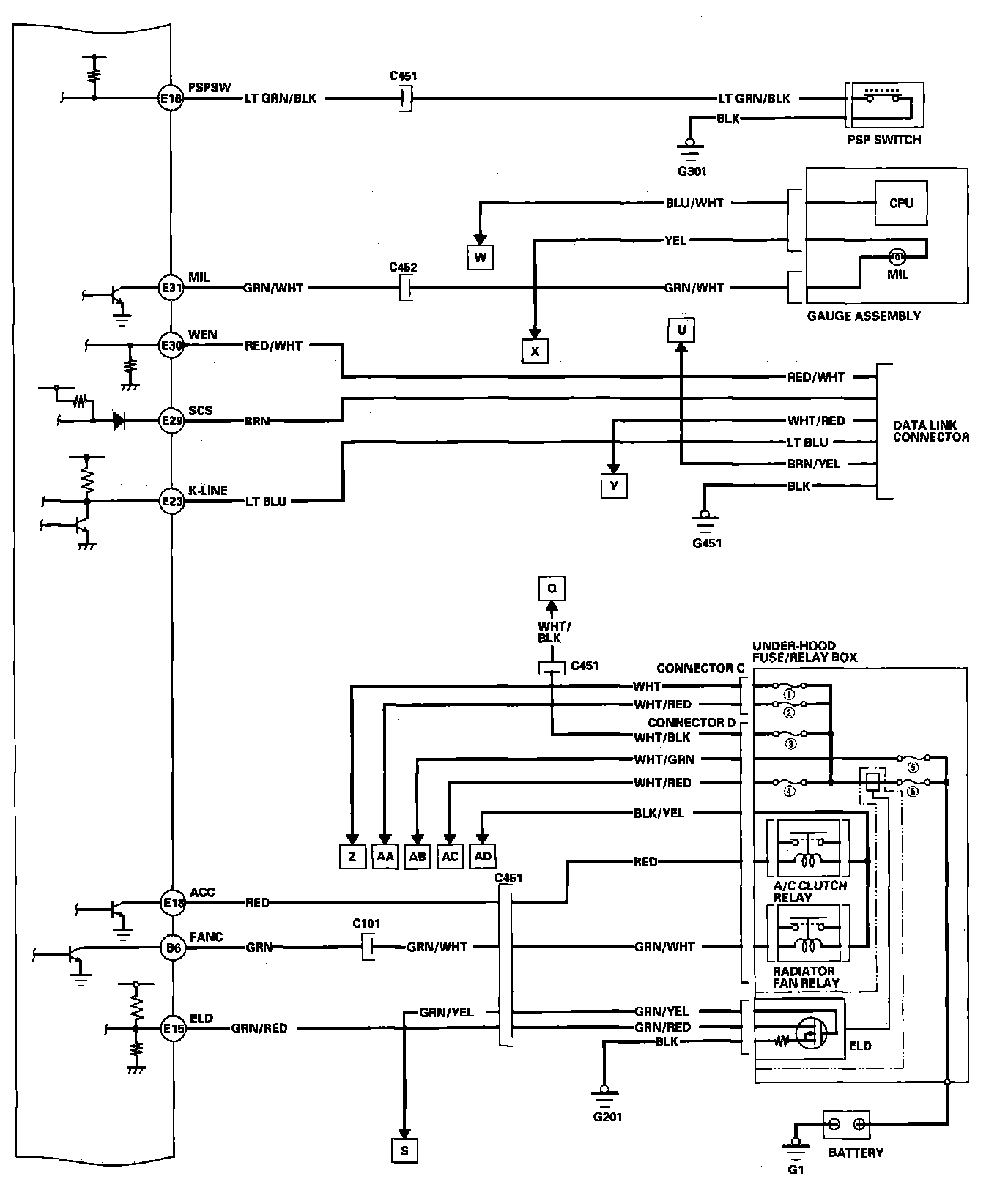

ECM/PCM Circuit Diagram 11-49:

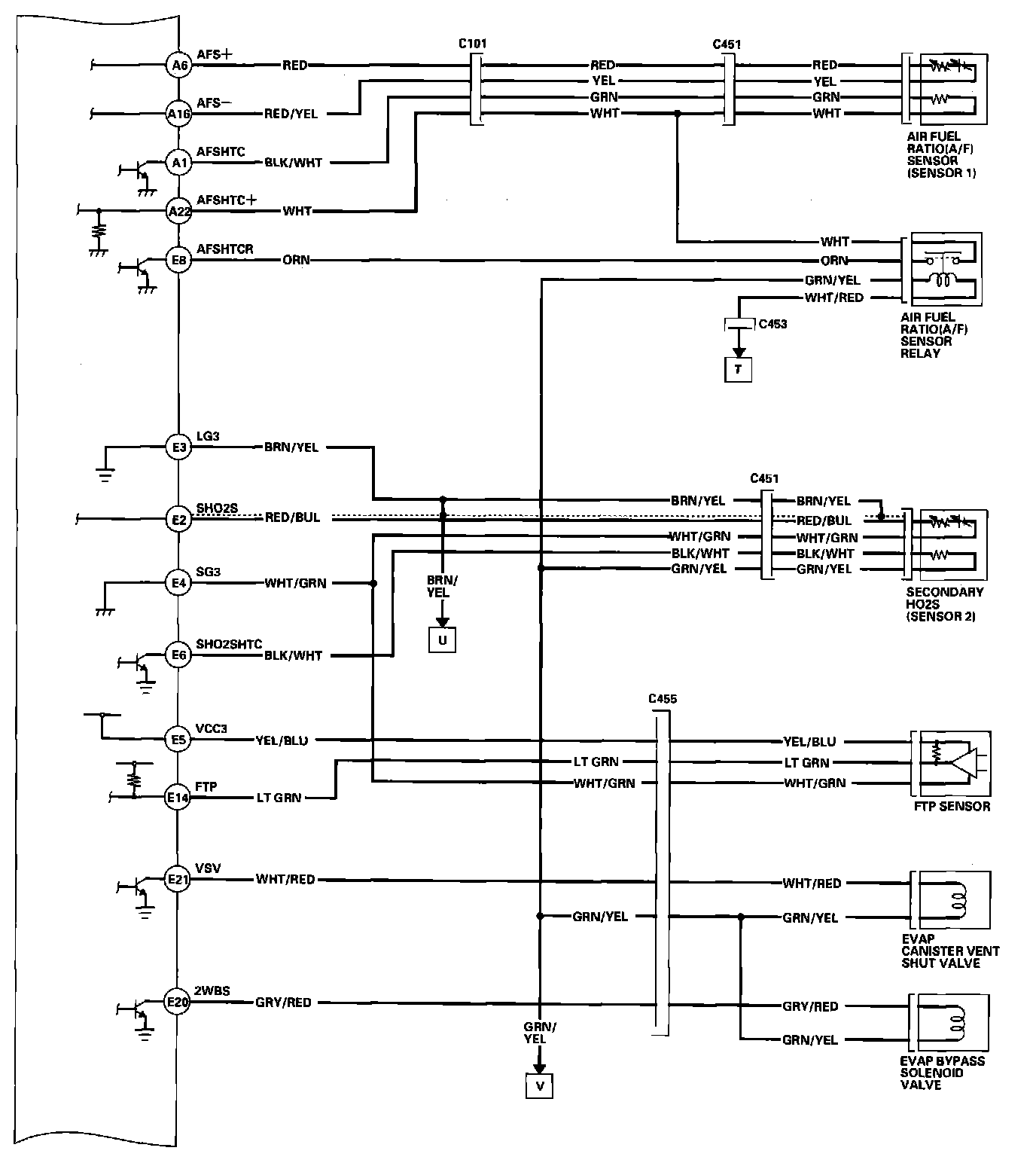

ECM/PCM Circuit Diagram 11-50:




ECM/PCM Circuit Diagram 11-51:




ECM/PCM Circuit Diagram 11-52:
