Component Location Index

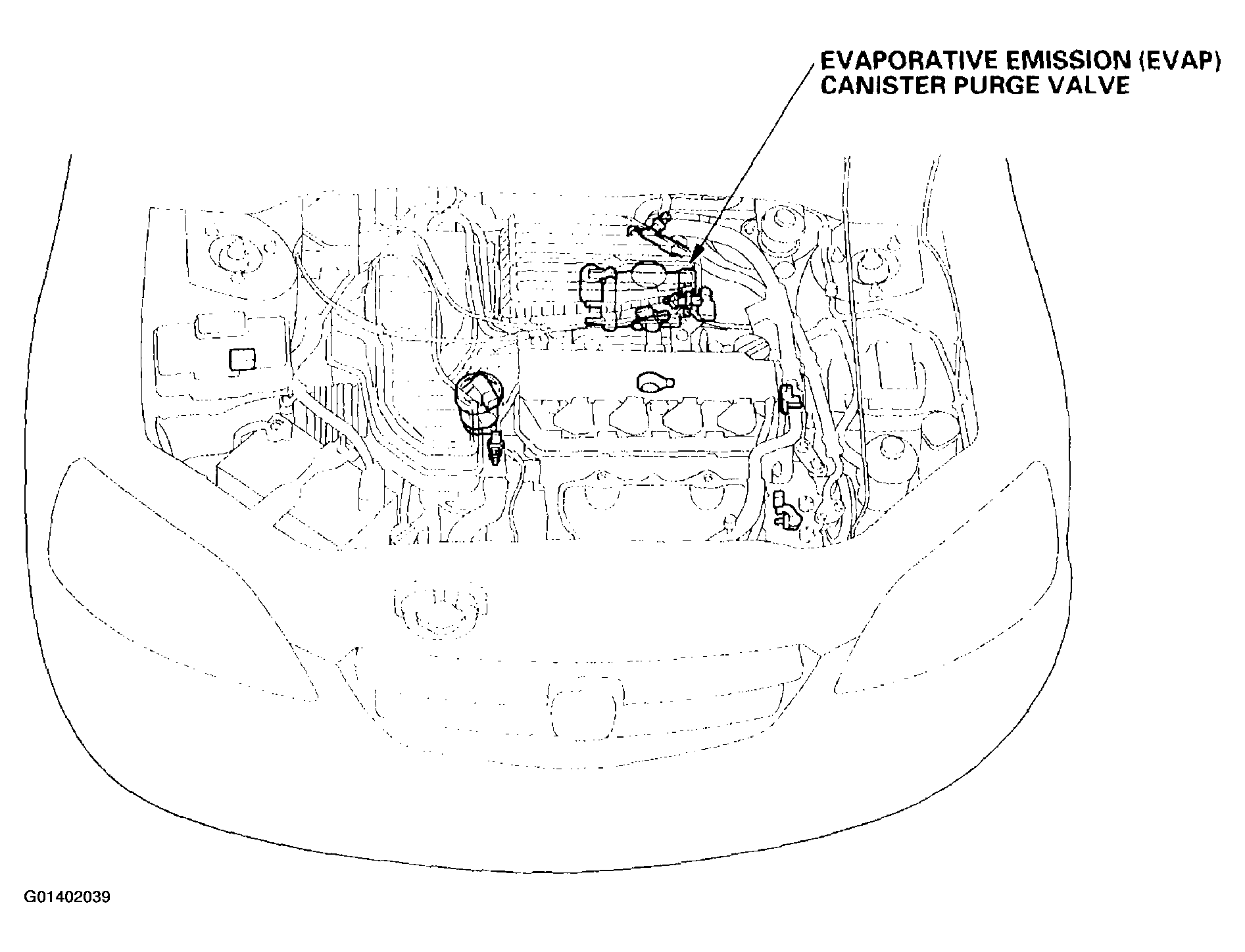

Fig 1: Identifying EVAP Components (1 Of 2)
G01402039Courtesy of AMERICAN HONDA MOTOR CO., INC.

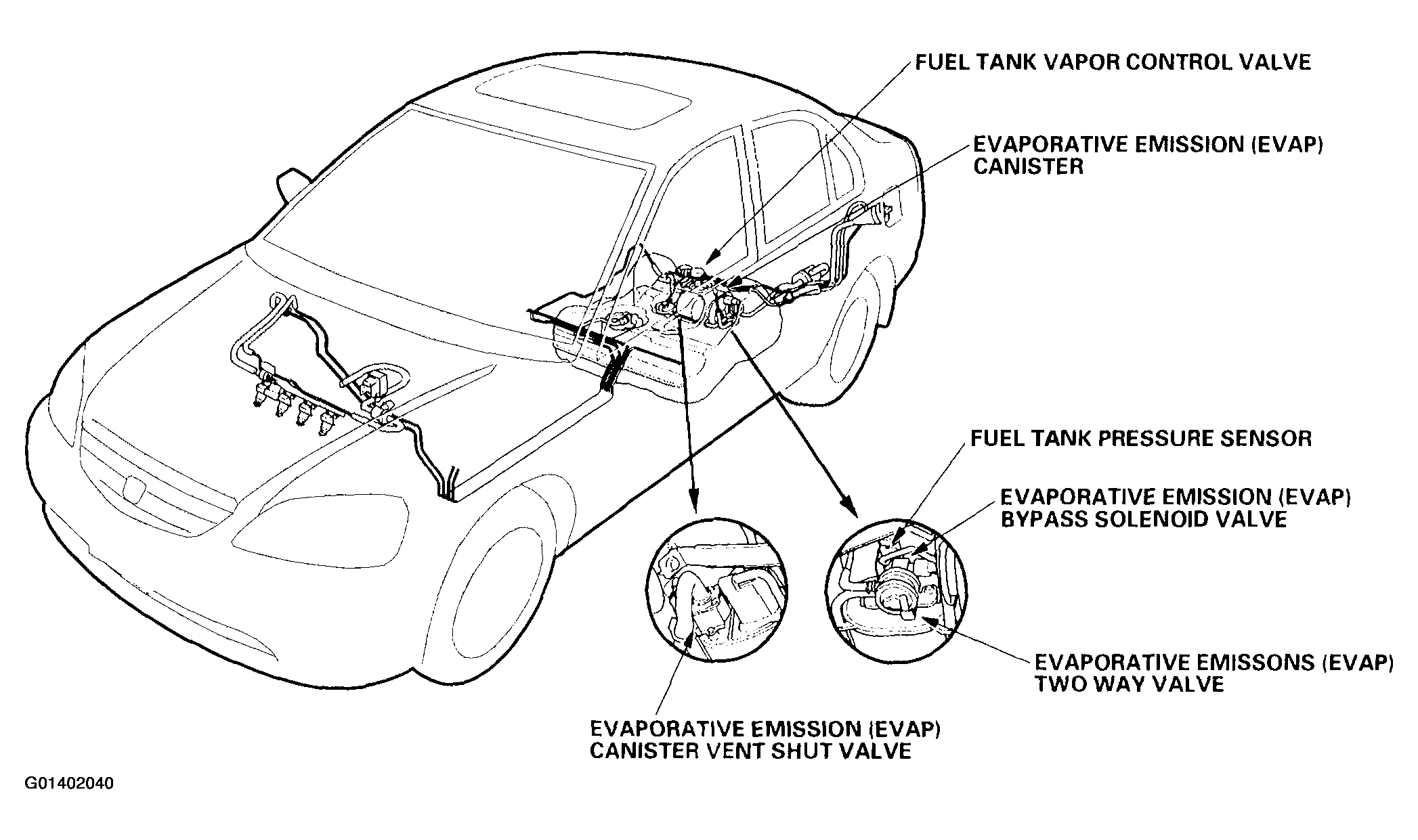

Fig 2: Identifying EVAP Components (2 Of 2)
G01402040Courtesy of AMERICAN HONDA MOTOR CO., INC.
