Radiator Cooling Fan Control Module: Locations

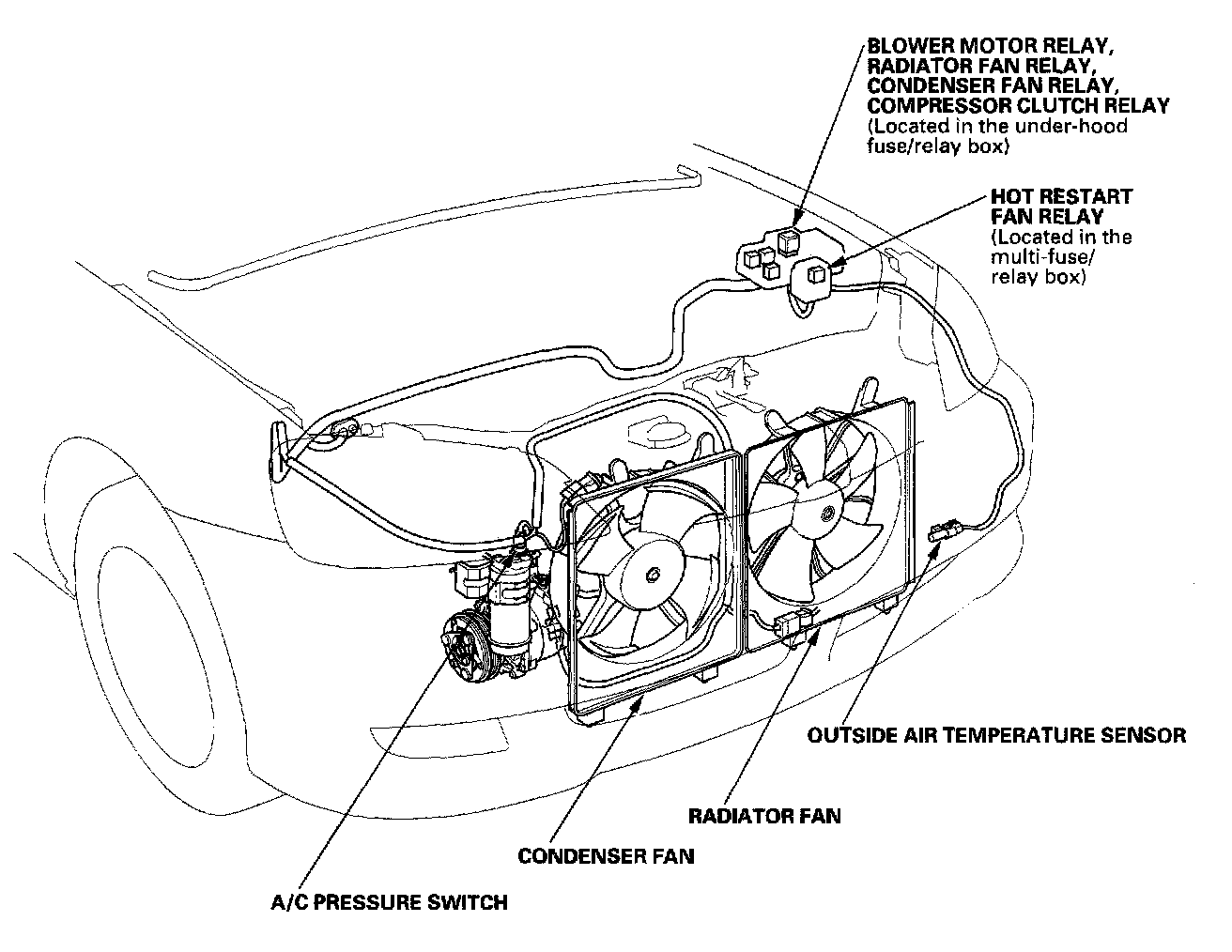

Climate Control - Component Location Index:

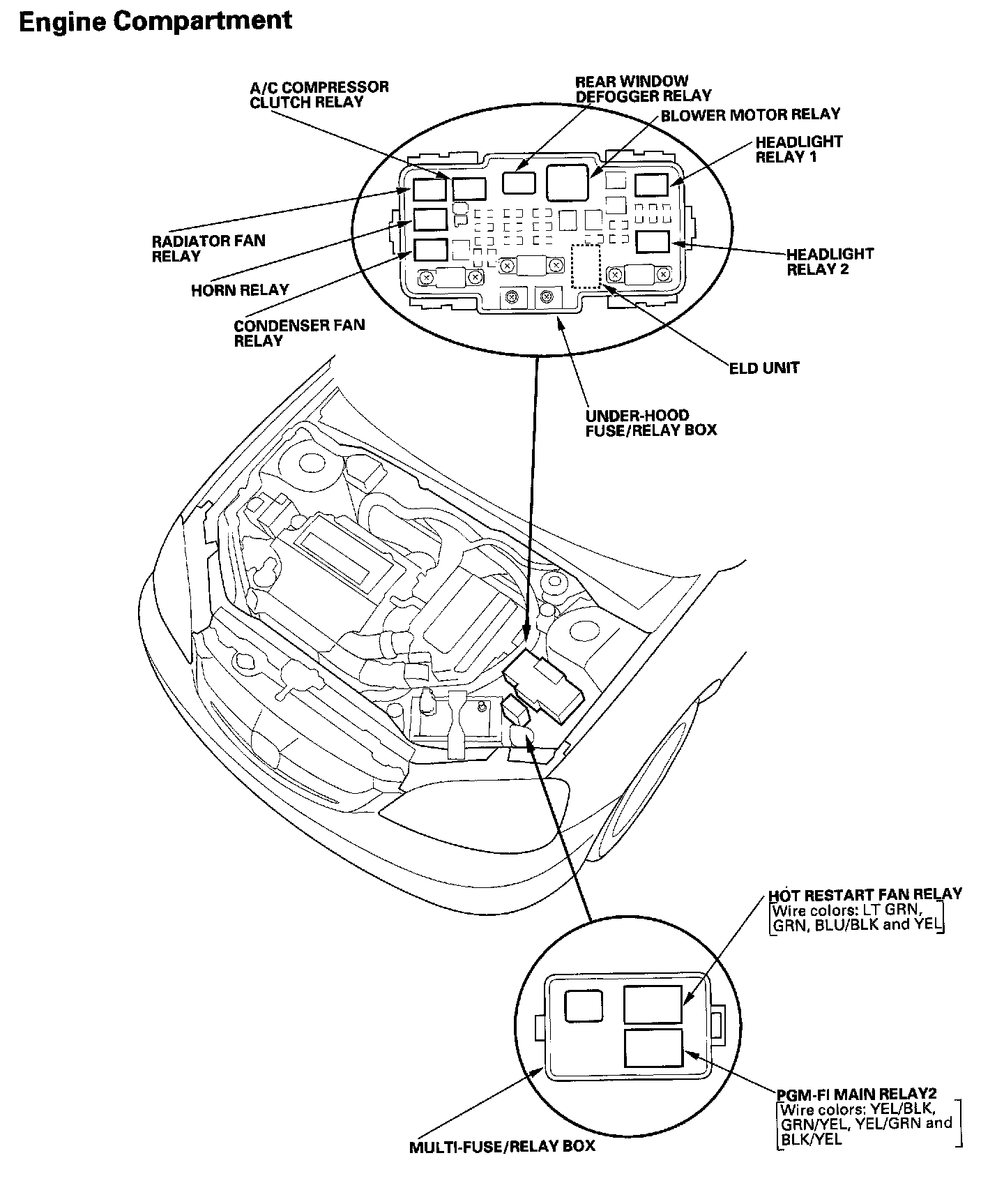

Relay And Control Unit Locations - Engine Compartment:
