Manual Transmission/Transaxle

Transmission Exploded Views

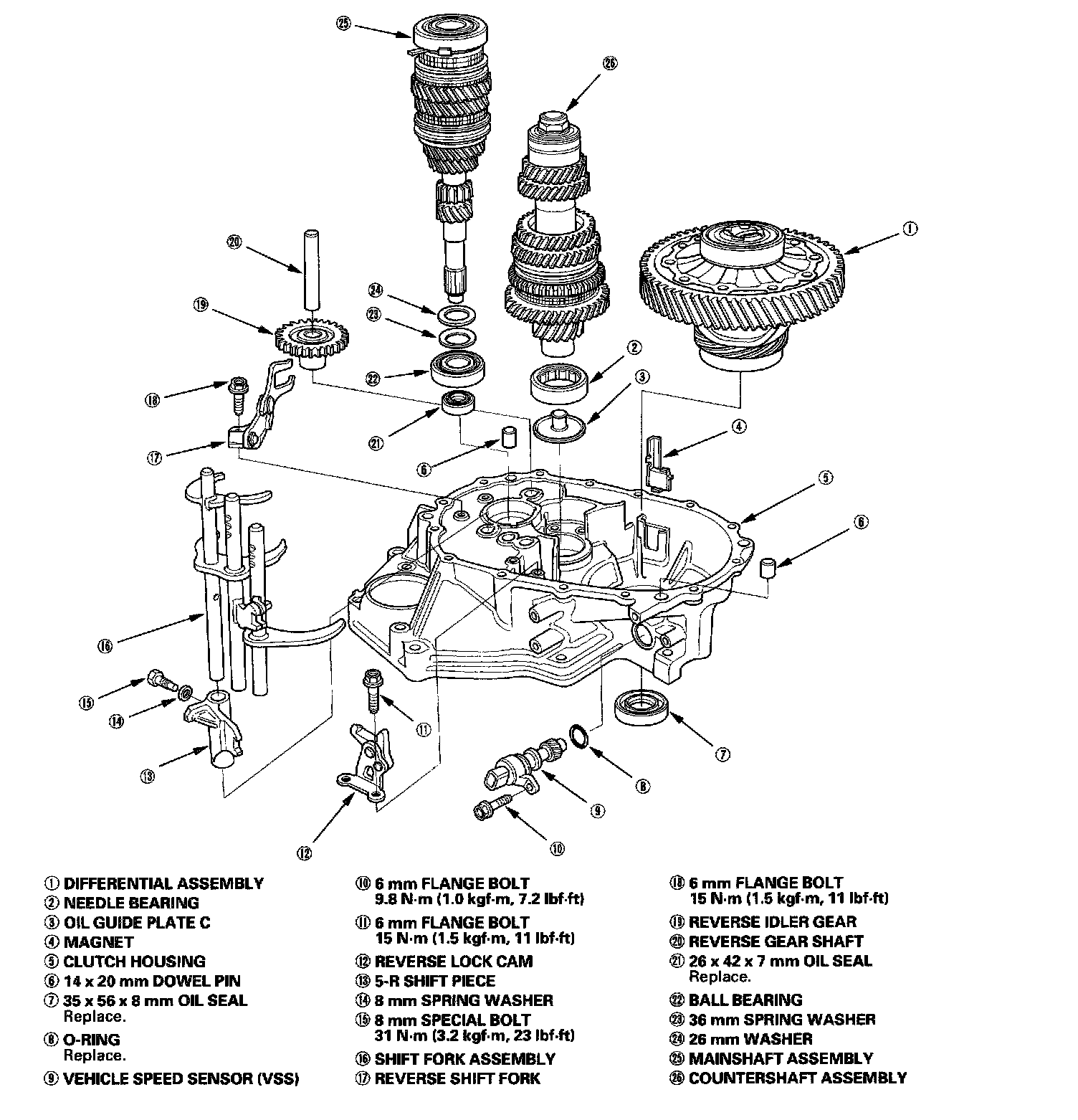

Clutch Housing

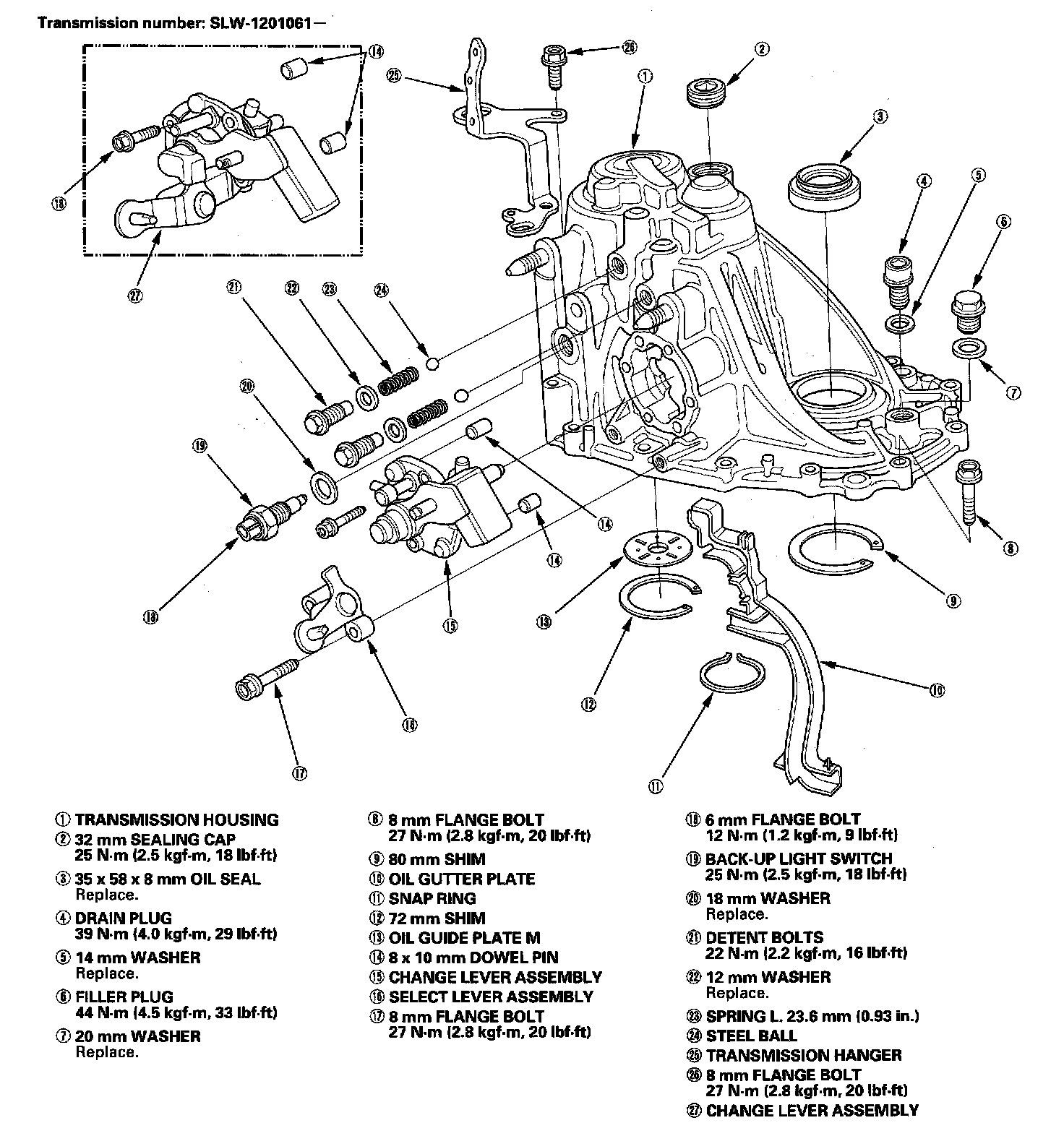

Transmission Housing

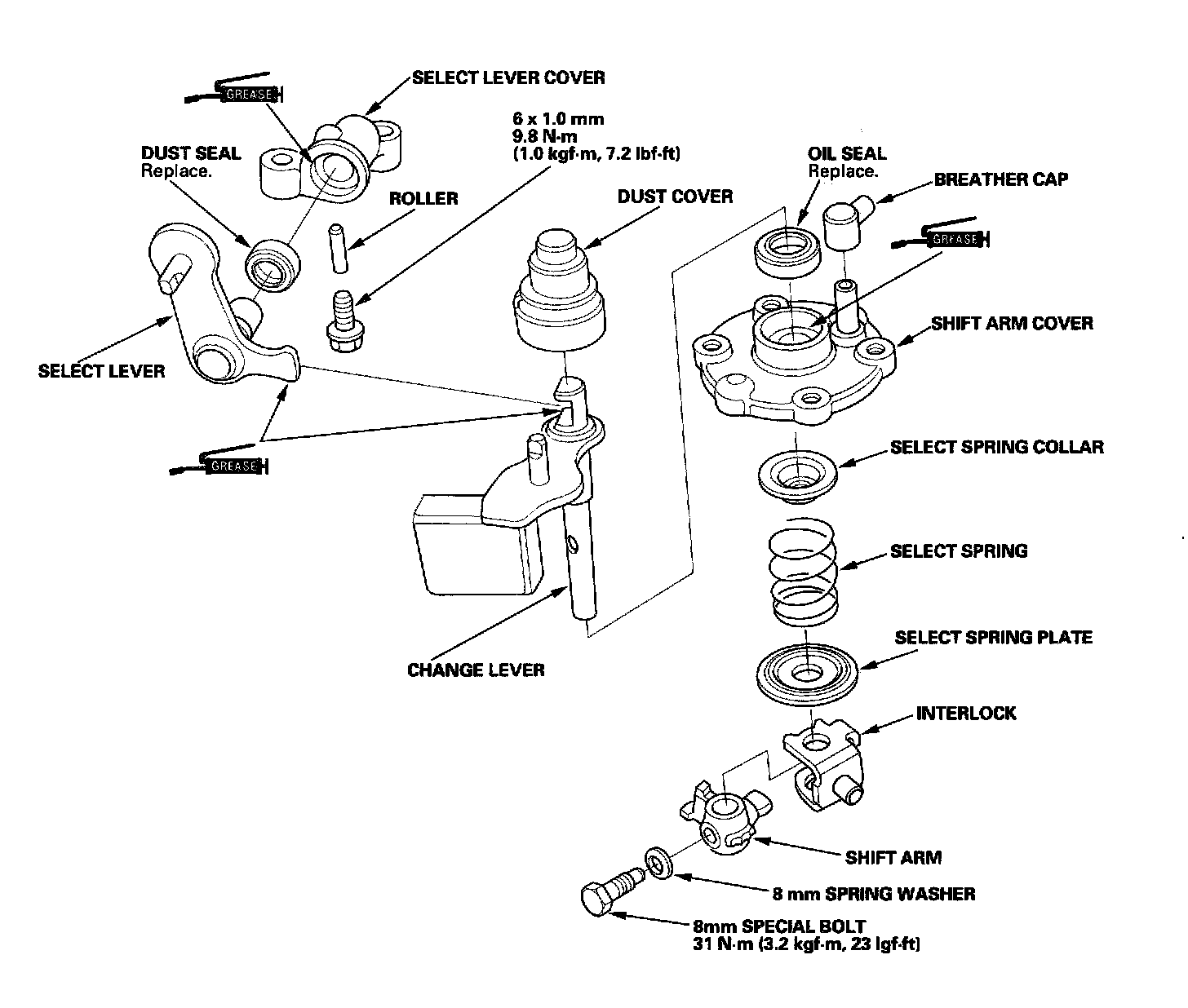

Change Lever

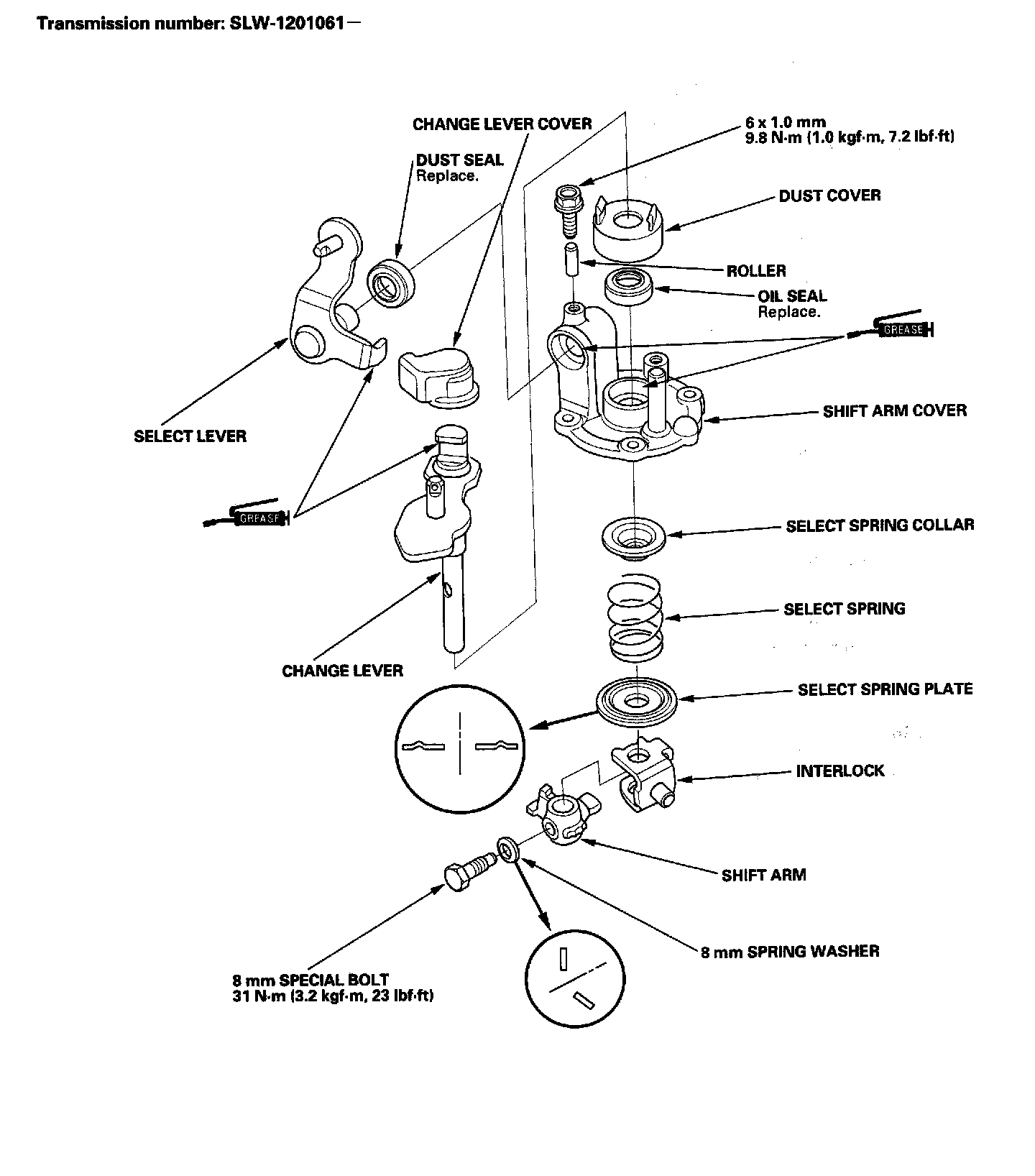

Change Lever

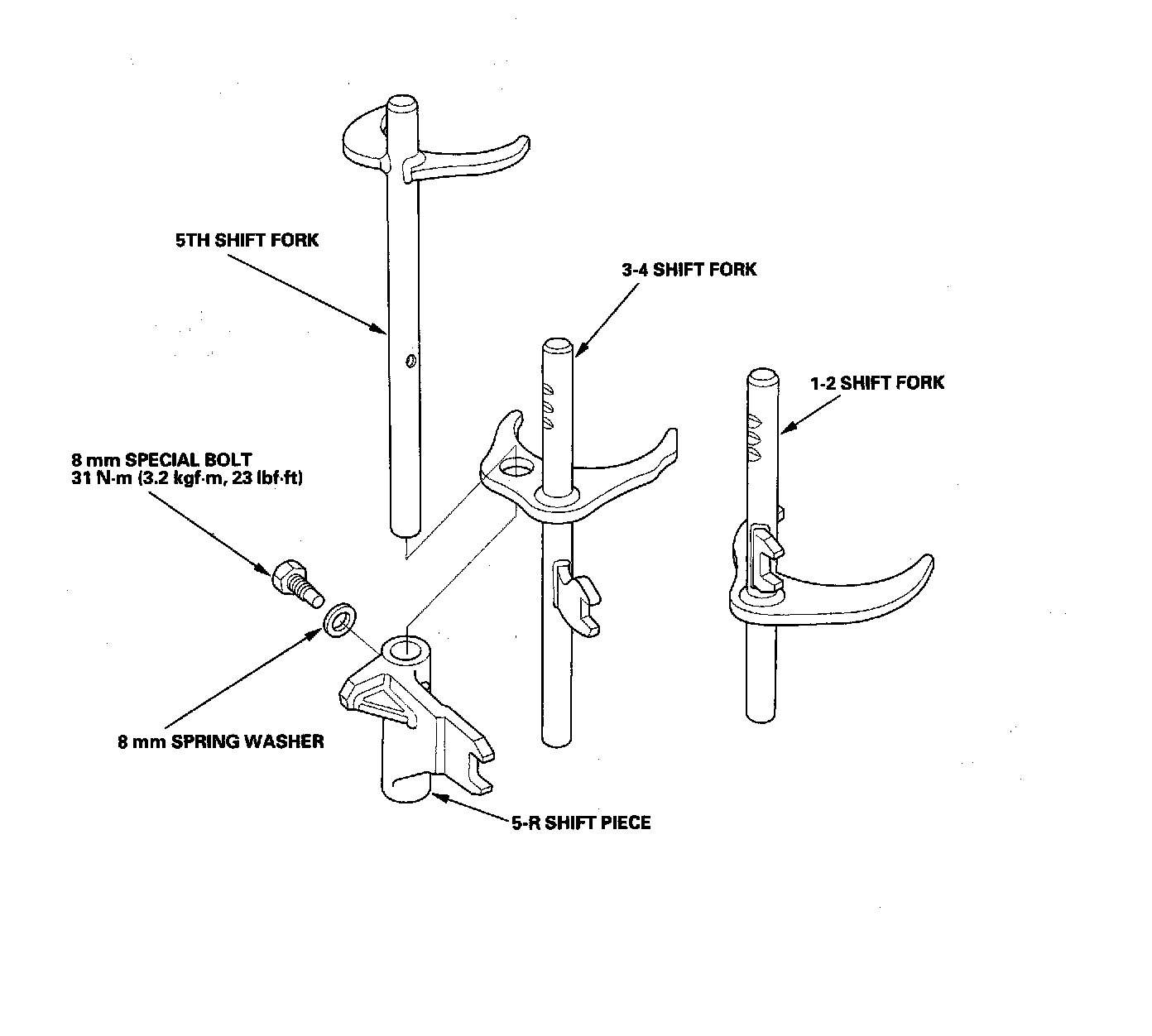

Shift Forks

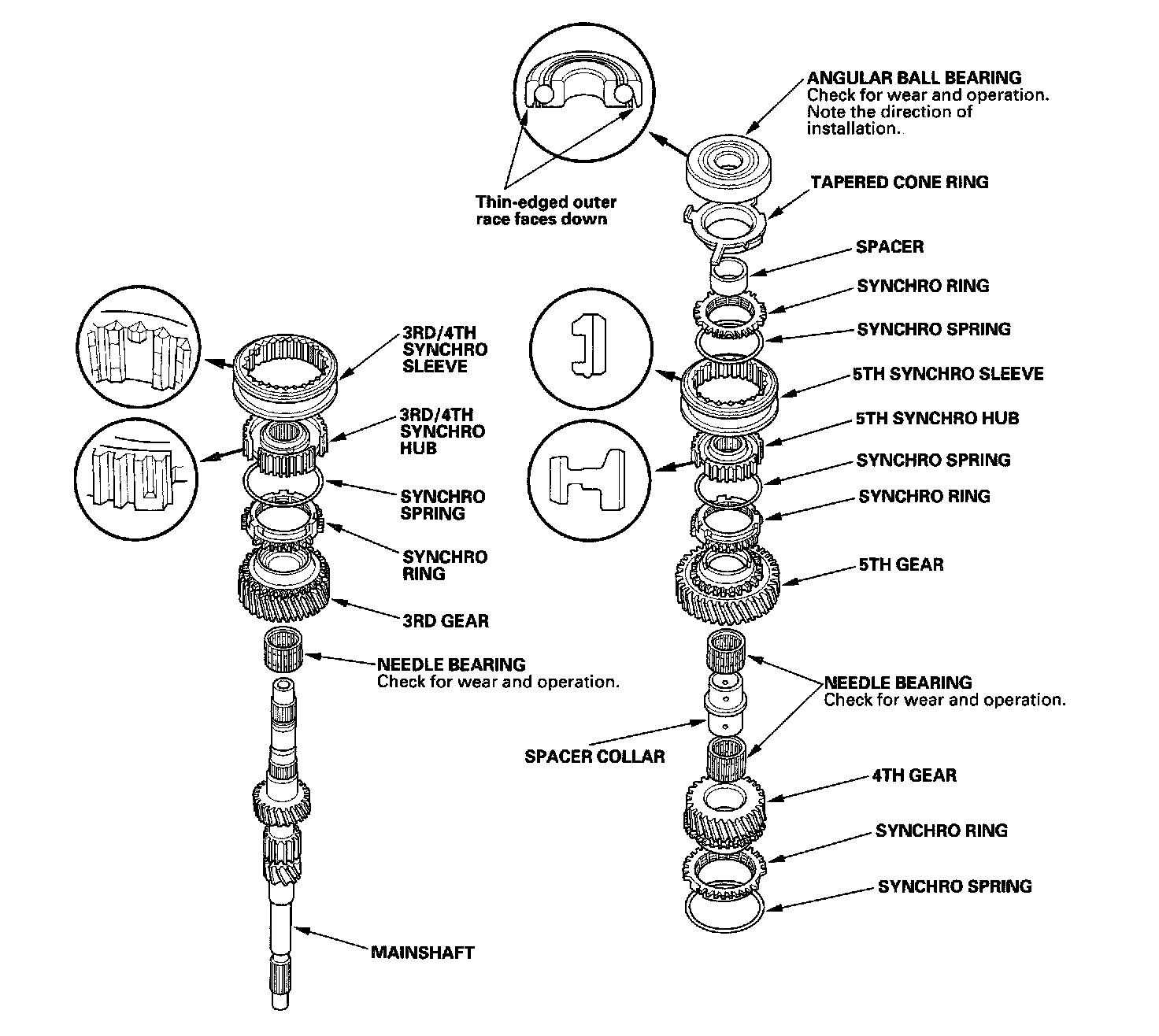

Mainshaft

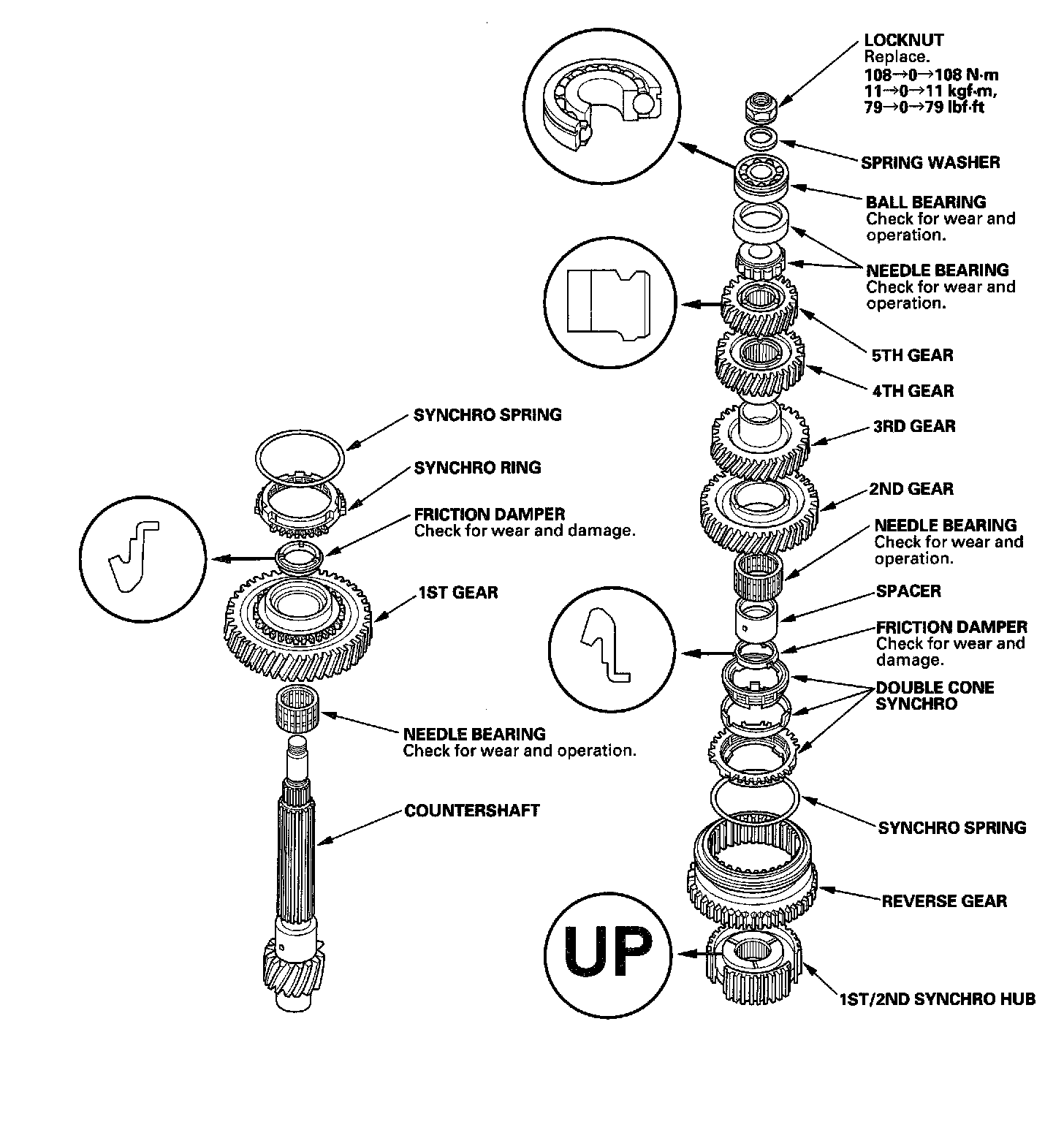

Countershaft

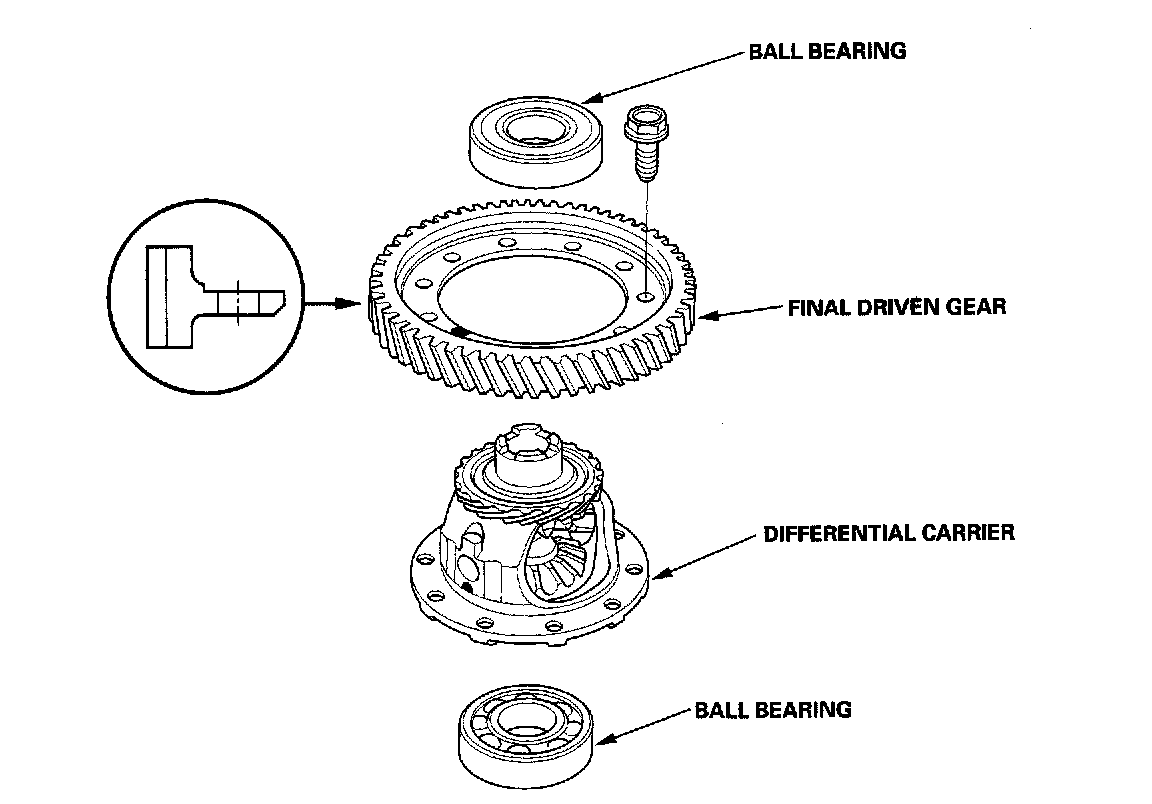

M/T Differential Component Location Index
