Pinout Values and Diagnostic Parameters

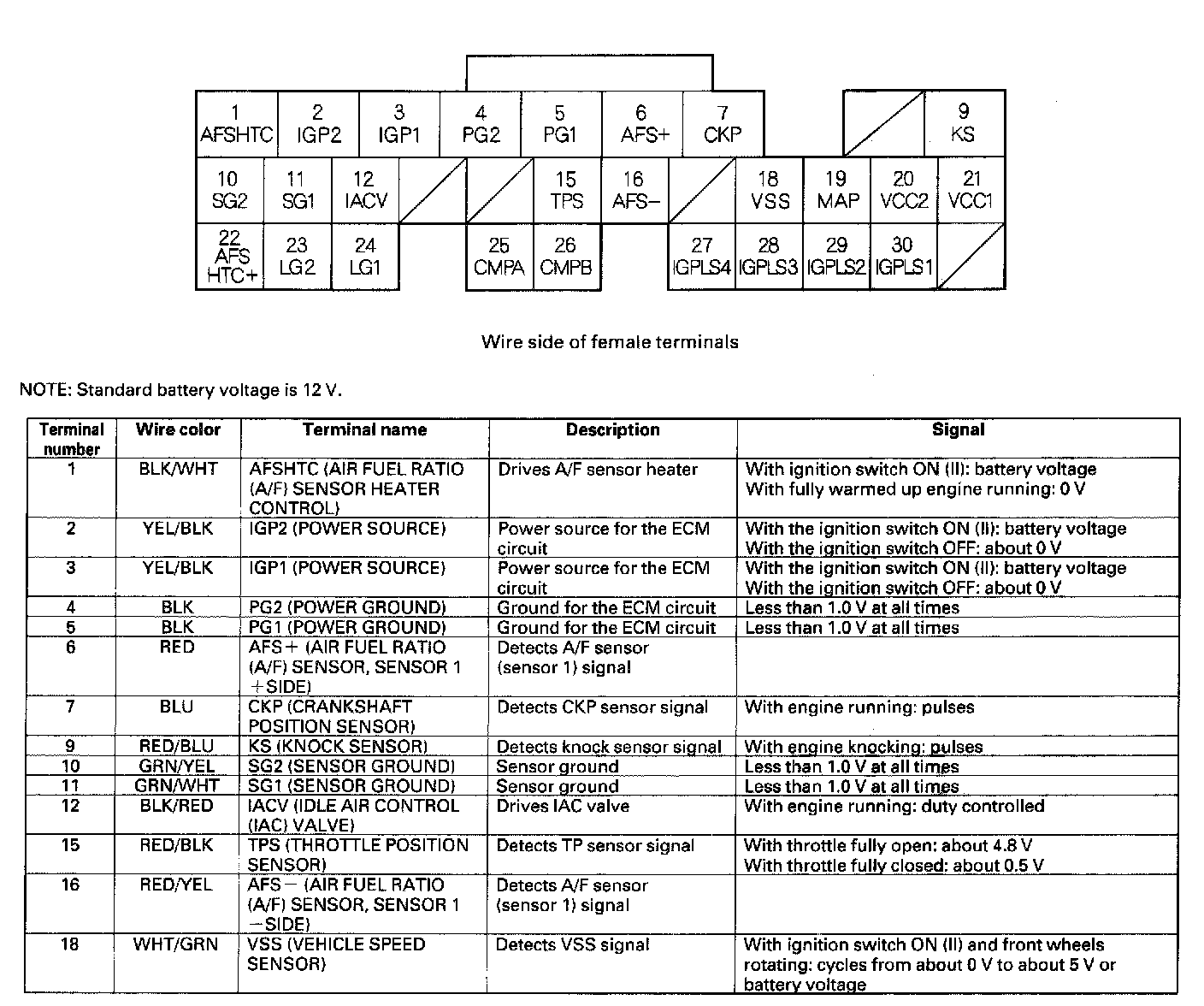

ECM Inputs And Outputs At Connector A (31P):

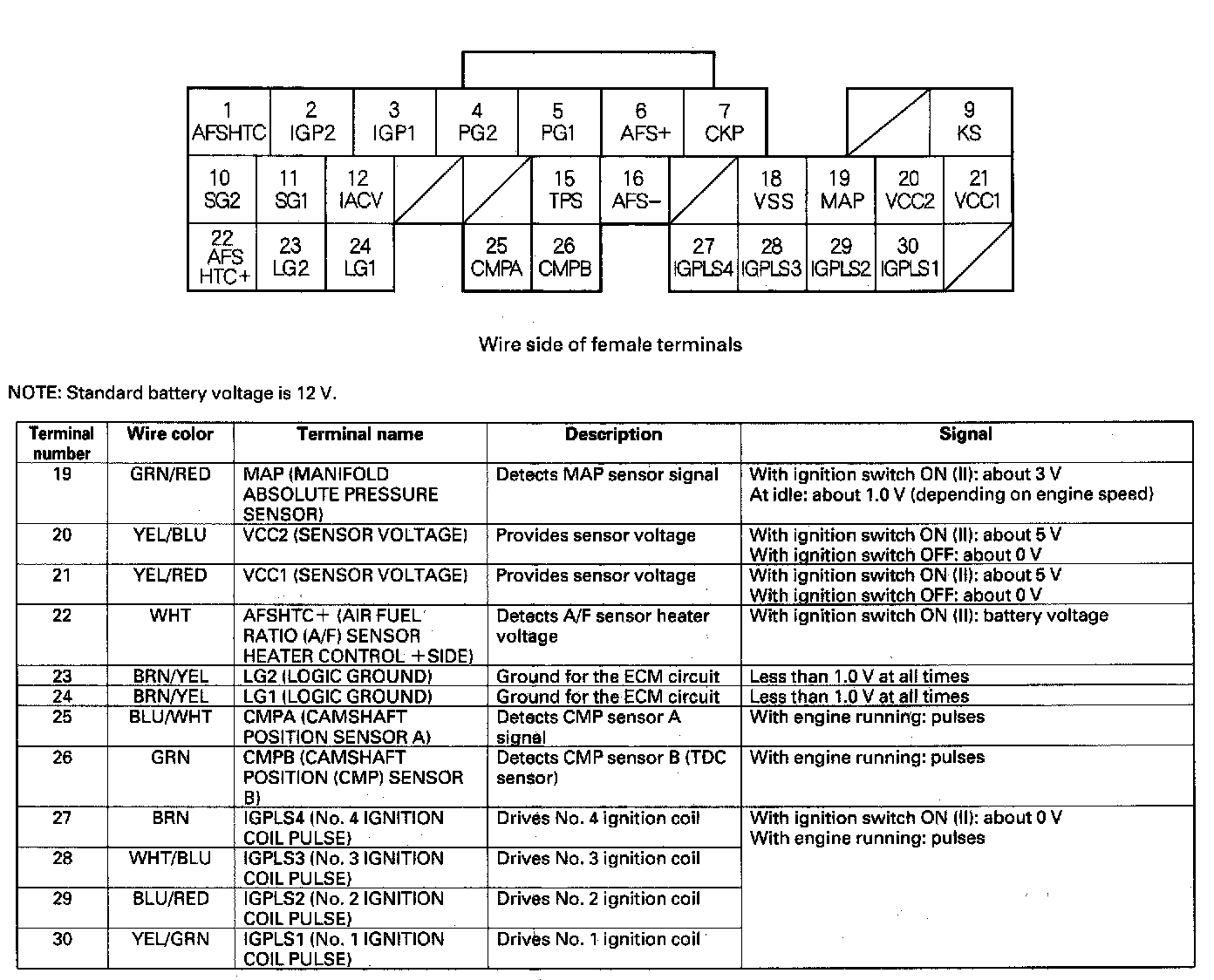

ECM Inputs And Outputs At Connector A (31P):

ECM Inputs And Outputs At Connector B (24P):

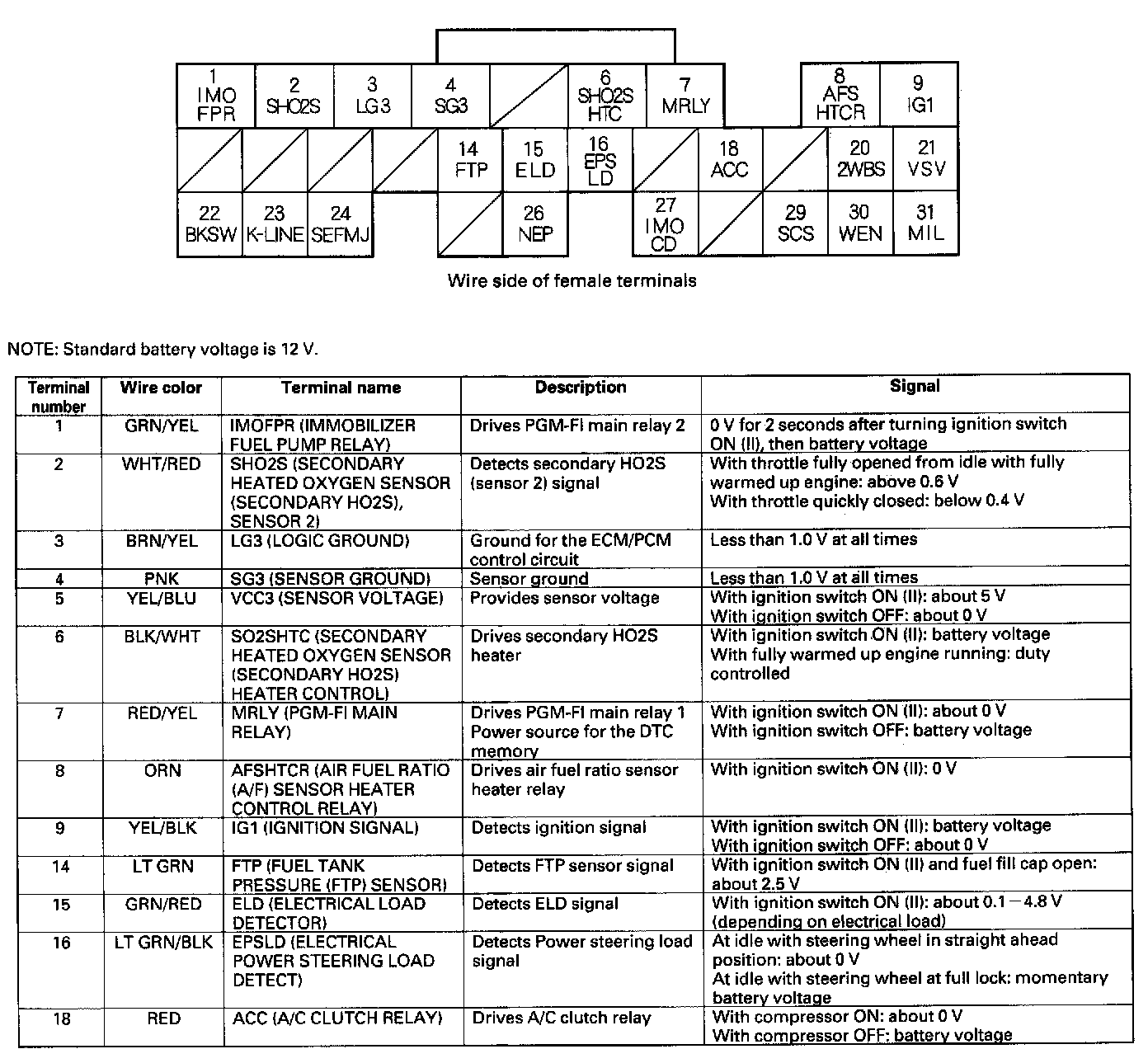

ECM Inputs And Outputs At Connector E (31P):

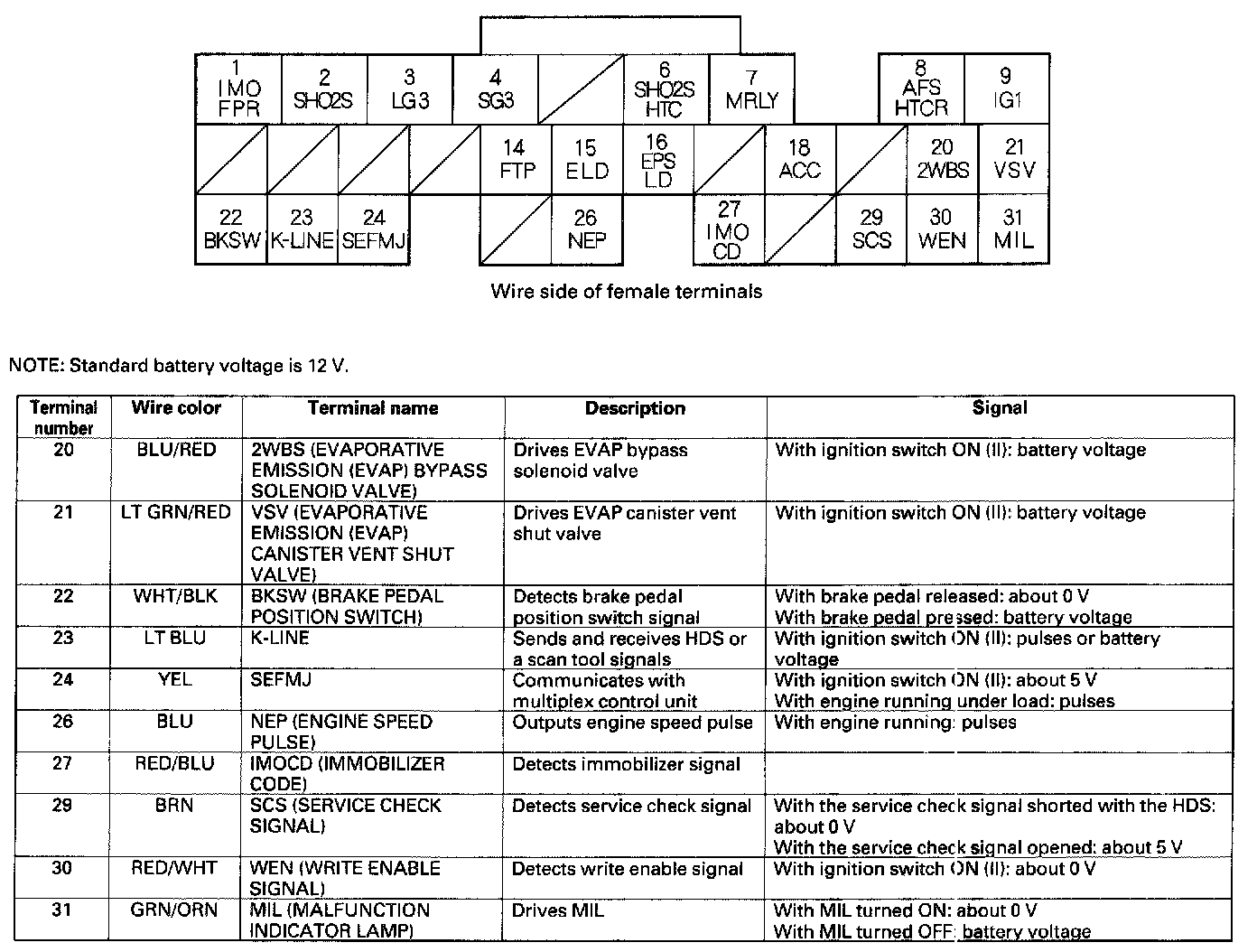

ECM Inputs And Outputs At Connector E (31P):
