Exploded View: Notes

Replace the pump as an assembly if the parts indicated with asterisk (*) are worn or damaged.

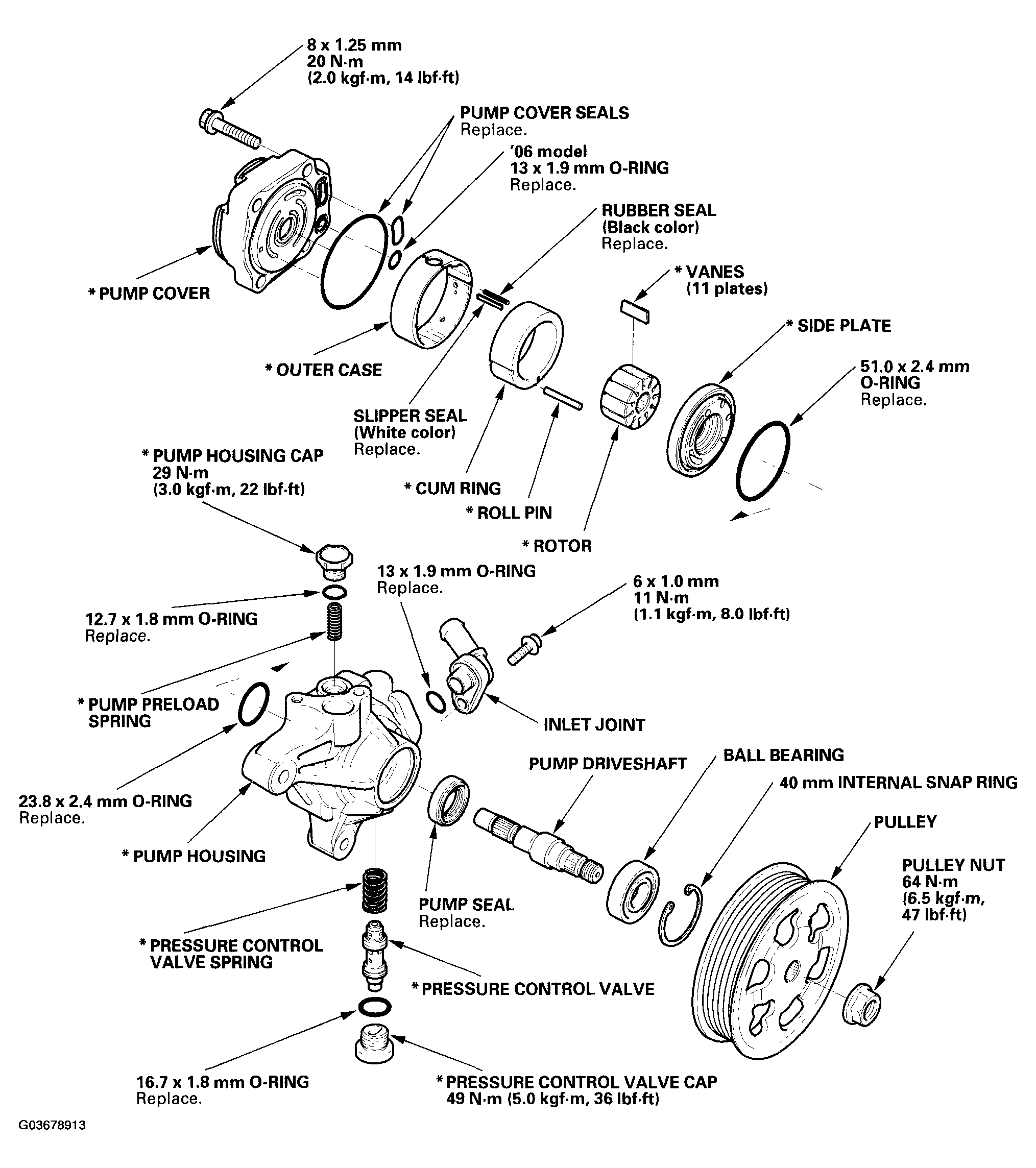

Fig 1: Exploded View Of Power Steering Pump And Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Attachment, 32 x 35 mm 07746-0010100
• Driver 07749-0010000
• Pulley holder 07ZAB-S5A0100
