Electronic Climate Control Panel

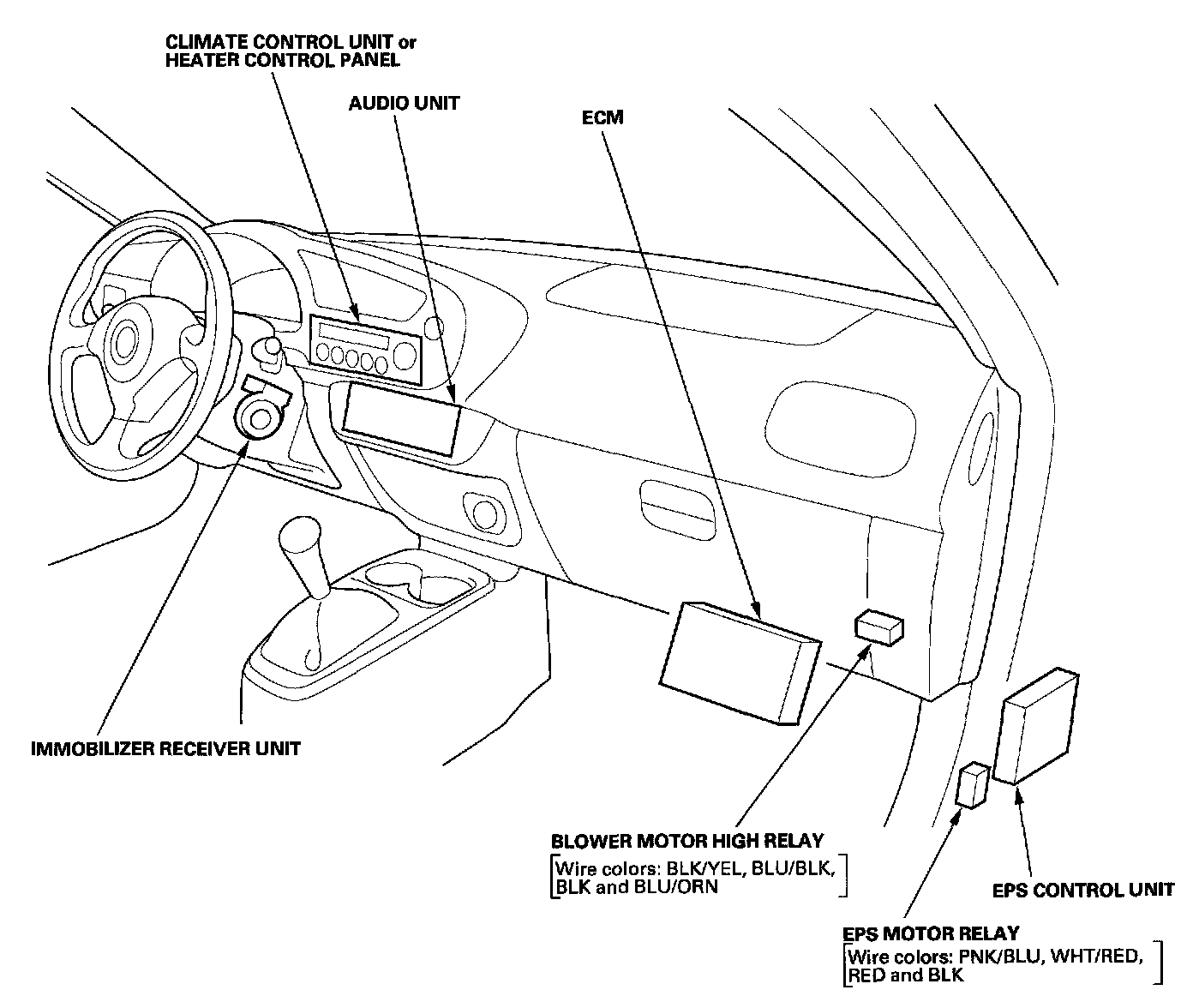

Dash Board View:

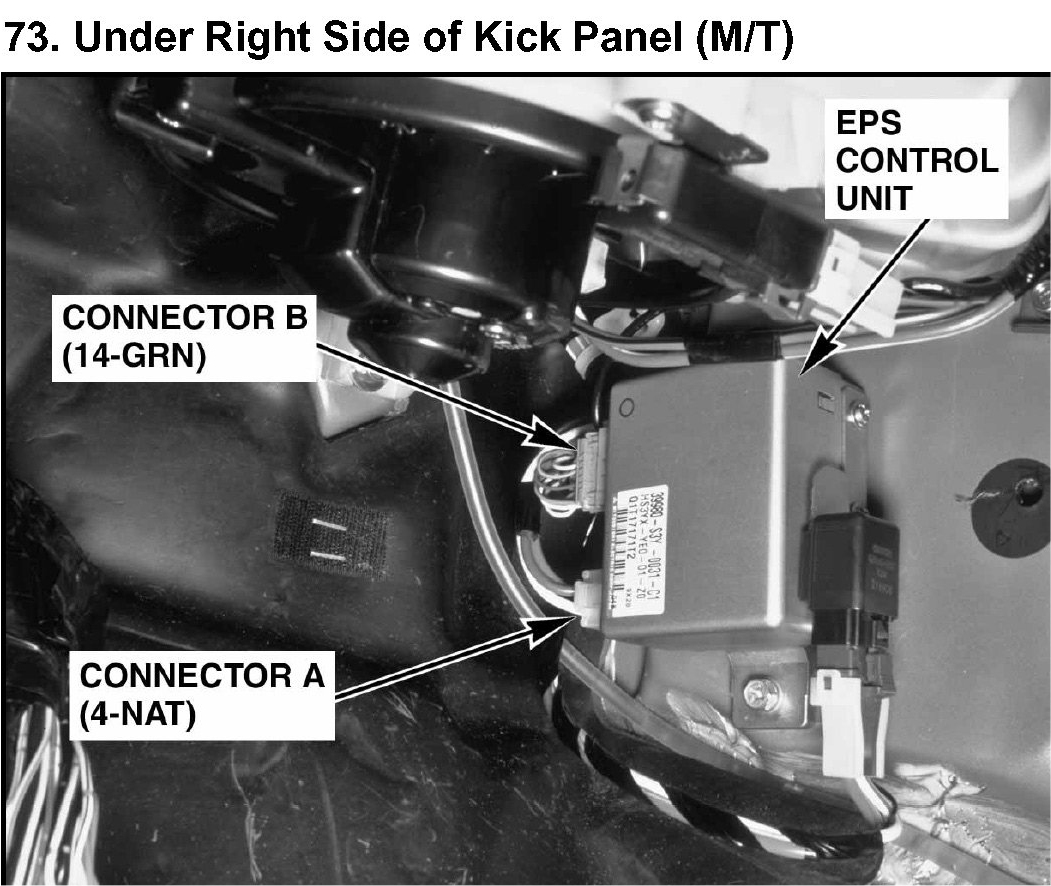

73. Under Right Side of Kick Panel (M/T):
134. Under Right Side of Kick Panel (CVT):
