Under-dash Fuse/Relay Box

UNDER-DASH FUSE/RELAY BOX DESCRIPTION

Fuse Number Amps Wire Color Component(s) or Circuit(s) Protected
1 10A PNK SRS unit(VB)
2 15A BLK/RED Fuel pump, SRS unit (VA)
3 20 A GRN/BLK Windshield washer motor, Windshield wiper motor, Windshield wiper intermittent relay
4 7.5 A BLK/YEL DC-DC converter, ELD unit, EVAP canister vent shut valve, EVAP purge control solenoid valve, Secondary HO2S, VSS, TCM
5 7.5 A YEL/BLK Turn signal lights, Turn signal/hazard relay
6 7.5 A YEL EPS control unit, Gauge assembly, Keyless door lock control unit, Power window control unit (in the power window master switch), Power window relay, Shift lock solenoid
7 15A BLK/WHT Ignition coils
8 20 A GRN/BLK Passenger's power window motor
9 7.5 A BLU/ORN ECM, Starter cut relay
10 20 A GRN/WHT Power window control unit (in the power window master switch)
11 7.5 A YEL/RED Audio unit
12 10A YEL/BLU Accessory power socket
13 - - Not used
14(1) 20 A WHT/RED Air/fuel ratio sensor, ECM (via air fuel ratio sensor relay)
15 10A RED/BLK Audio unit, Climate control unit/Heater control panel lights. Dash lights, Gauge lights, Front parking lights, Front side marker lights, License plate light, Taillights
16 7.5 A BLK/YEL ABS modulator-control unit, A/C compressor clutch relay, Blower motor relay. Blower motor high relay, Climate control unit/Heater control panel, A/C condenser fan relay, Fan control relay, Mode control motor, Radiator fan relay, Rear window defogger relay, Recirculation control motor
17 7.5 A YEL/RED Daytime running lights control unit (Canada)
18 7.5 A WHT/RED Battery condition monitor (BCM) module, Climate control unit/Heater control panel, Data link connector (DLC), ECM, Gauge assembly, Motor control module (MCM)
19 7.5 A WHT/BLU Cargo area light, Ceiling light/Spotlights
20 10A WHT Audio unit
(1) '02-06 models
FUSE TO COMPONENTS INDEX

Fuse Number Amps Wire Color Component(s) or Circuit(s) Protected
21 10A RED/BLU Daytime running lights control unit (Canada)
22 20 A WHT Keyless door lock control unit
23 7.5 A BLU/YEL Hatch opener relay, Hatch opener actuator
24 7.5 A BLK/YEL Battery module fan, High speed battery module fan control relay, Ignition hold relay, Low speed battery module fan control relay, Motor control module (MCM)
25 - - Not used
26 10A GRN Rear window washer motor, Rear window wiper motor
27 7.5 A YEL/RED Back-up lights, Reverse relay (CVT)
28 - - Not used

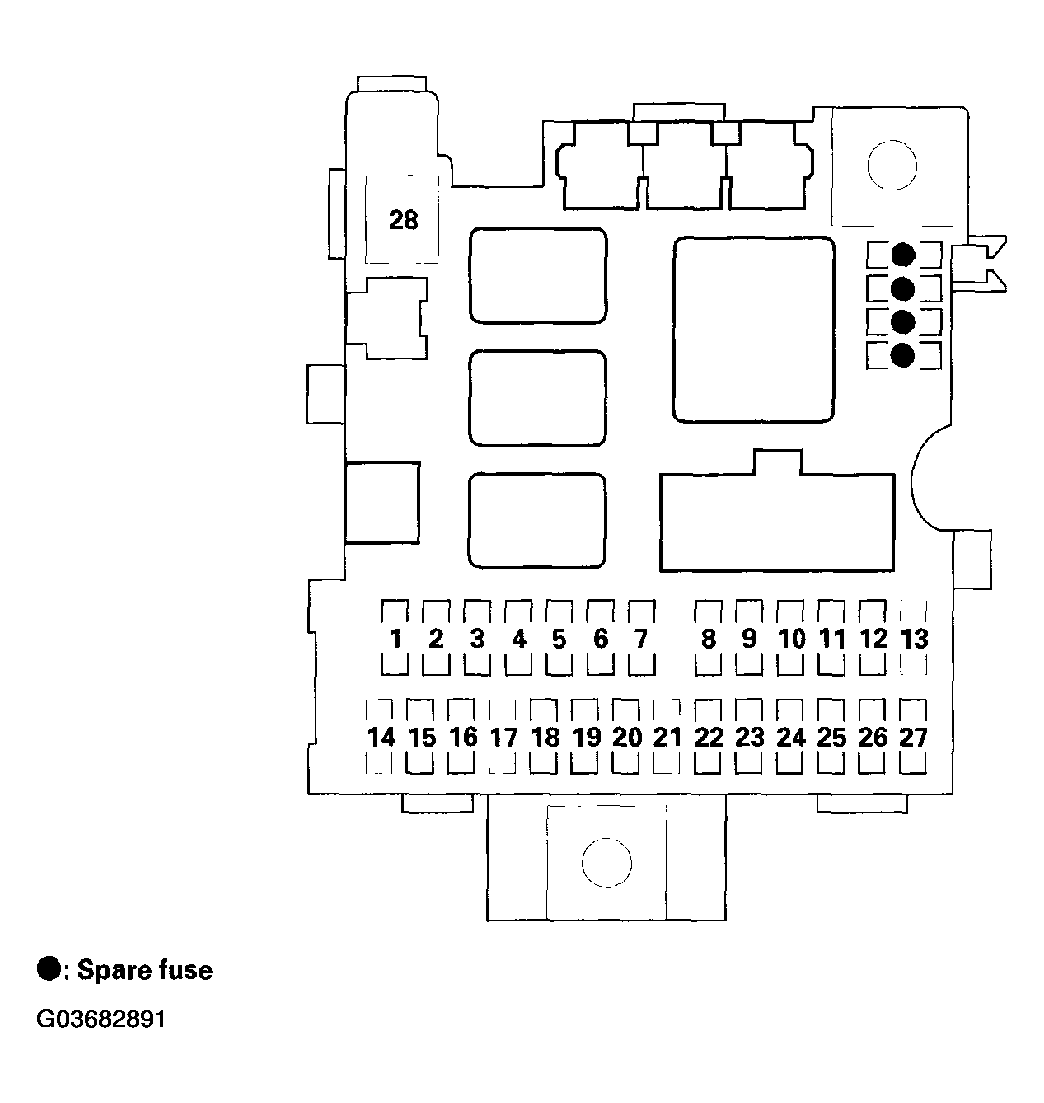

Fig 1: Identifying Under-Dash Fuse/Relay
G03682891Courtesy of AMERICAN HONDA MOTOR CO., INC.
