Multiplex Control Unit, Driver's Connector End View

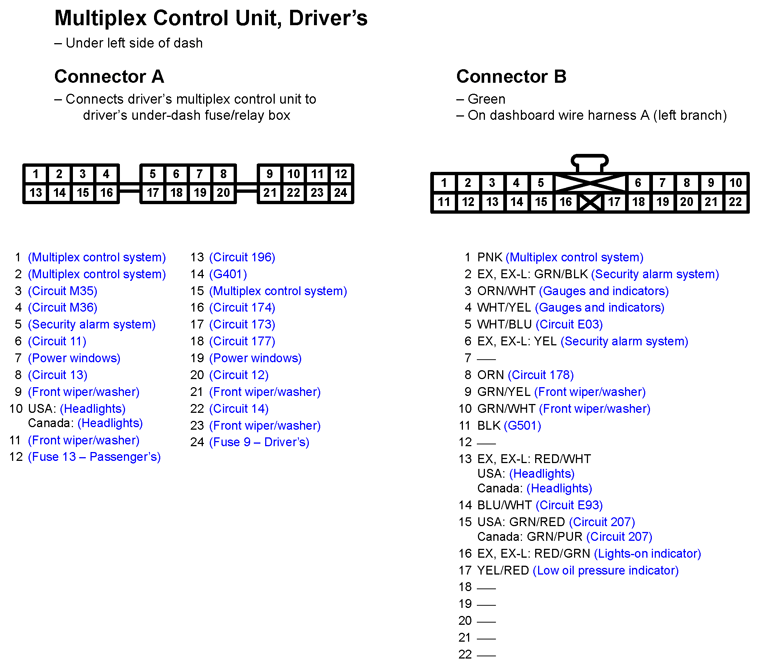

Fig 1: Multiplex Control Unit, Driver's Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
