Cruise Control Main Switch Test/Replacement

Remove the switch panel (see DRIVER'S SWITCH PANEL REMOVAL/INSTALLATION ).
Disconnect the 5P connector (A), then release the clips of the main switch and push the main switch (B) out of the panel.

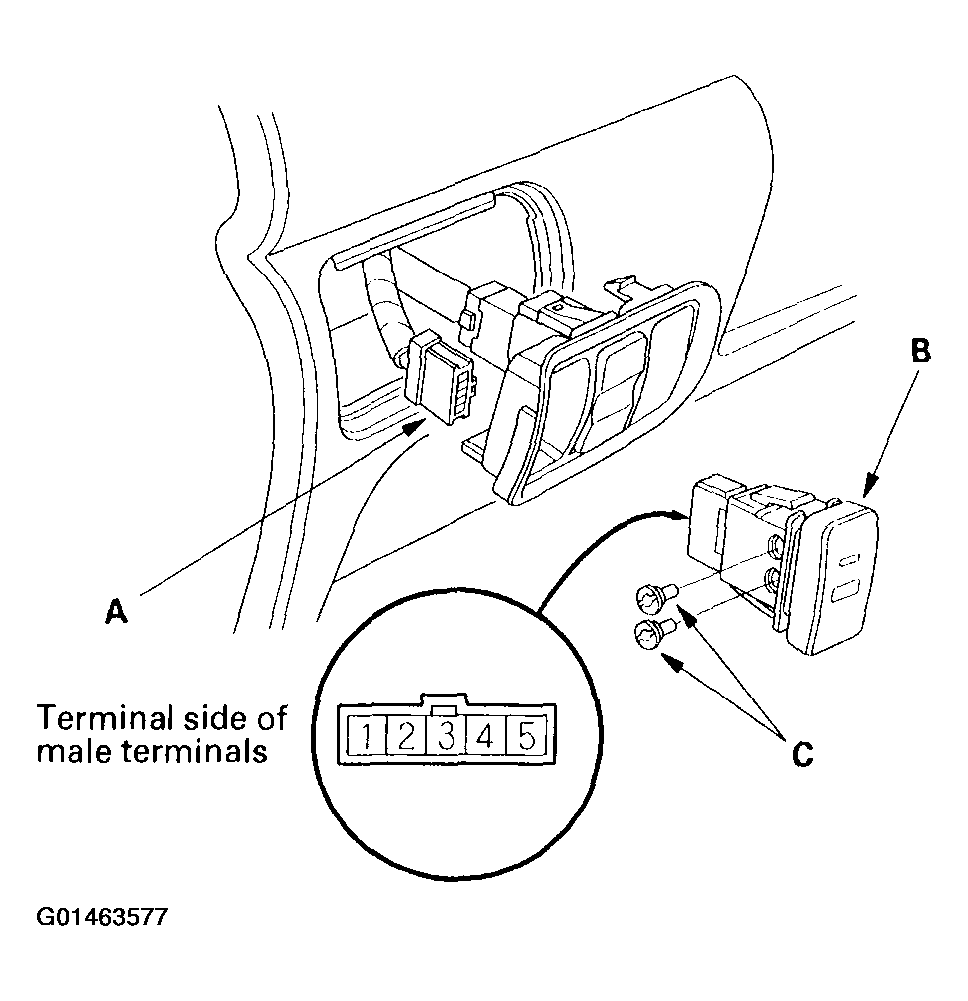

Fig 1: Disconnecting 5-Pin Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table. If there is no continuity, replace illumination bulbs (C) or the switch.

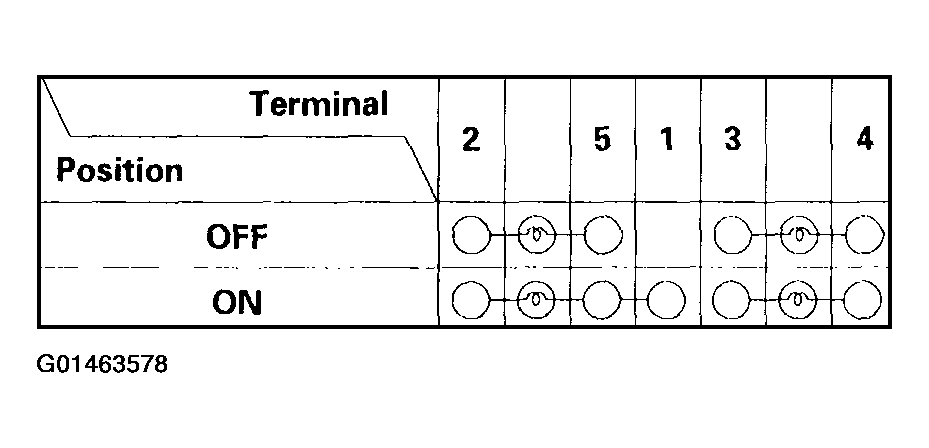

Fig 2: Checking Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
