Mode Control Motor, Front Connector End View

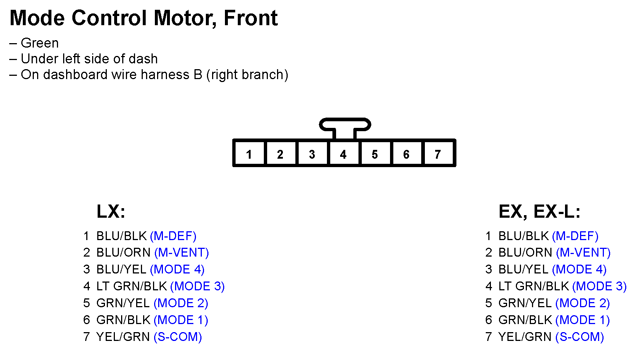

Fig 1: Mode Control Motor, Front Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
